Huth KNEE CONTROL BENDER 2008

Features

• Easy-to–use manual knee pedal control
• Push button control
• Automatic Depth-Of-Bend selector
• Auxiliary on/off switch
• 58,000 LBS of bending force. Enough for 3” tubing
• Agricultural Main Cylinder
• Swager tray
• Deluxe tool tray
• Heavy duty Swager/Expander
• Rugged I-Beam construction
• Exclusive safety guard package
• Front swivel casters w/o brakes
• 220 volt, 60HZ operation
  *Single phase req. 30 amp service
  *Three phase req. 20 amp service
• High voltage and high speed options available
• Tooling Not Included

Model 2008 is designed for high volume shops that need quick, precise, bending and end finishing.

The 2008 offers the convenience of a knee pedal control and a reduced size control panel. This allows the operator to get closer to the work area for more precision and less fatigue.

The Smart Automatic Mode features an adjustable return-to–home position control. This unique, timesaving feature increases efficiency by assuring fast and easy transitions between multiple bends.

Model 2008 comes with a 5 horse power motor and provides 58,000 LBS of bending force. An optional 7 ½ horse power motor is available for 25% faster bending.

In the automatic mode, the automatic depth-of-bend selector ensures precise bending control through the use of an easy-to-read, easy-to-adjust depth of bend plate.

The heavy duty swager/expander gives you complete end finishing capabilities. The swager end accommodates 1″ to 3″ tubing. The expander end allows for expansions from 1” to 5 ½”. With Huth’s Accu-Sizer bull’s-eye expanding system, you can dial in precise expansions every time.

The 2008 bender is available with your choice of tooling packages.

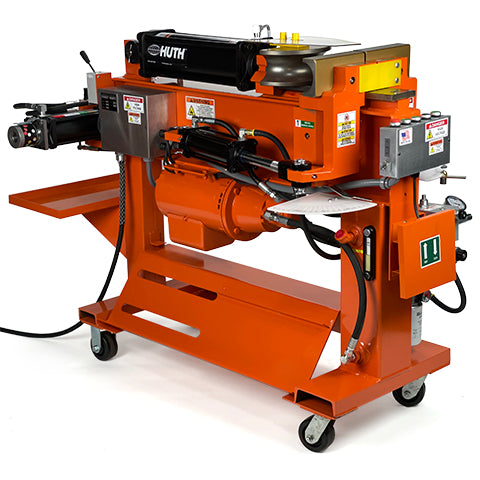

*Shown with optional Ready Rak II and 028 Die Pkg.
