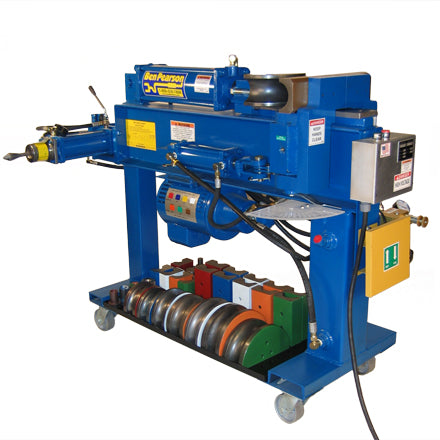

Huth Bender (w/110 Die Pkg) BPC-09

Features

• The sleek-designed main frame of the BPC-09 provides maximum clearance for hard-to-bend pipes or when using bend data for a Ben Pearson bender
• Designed to accommodate Ben Pearson bending dies and end-finishing tooling
• Easy-to-use knee pad control
• Manual depth-of-bend selector
• Uses a double-ended cylinder for both solid and segmented end finishing
• Easy toggle clamp design for clamping collets
• Features Ben Pearson quick-disconnect end-finishing tooling
• Powered by a hefty 5 horsepower motor
• Complete with tooling package – Super 110, part #62898

Huth Ben Pearson is excited to announce the new BPC-09, combining Huth’s and Ben Pearson’s strengths, quality design and features in one package.

The BPC-09 is a manually operated bender using a knee control for bending and the Huth I-beam construction with the maintenance-free guide plate. This bender is our new low-cost alternative for shops just starting up, adding a second bender or replacing an old bender.

The BPC-09 package includes the 62898 Super 110 die package. The combination of another great bender and a great tooling package make our Huth / Ben Pearson family of benders even better. The bender without tooling is Model BP-08.

• BPC-09 package comes as listed only. Additional tooling available at extra charge.

Documents

• Ben Pearson Operations Manual Models BPC-09, BP-08 & BPC-12, BP-11
• Ben Pearson Models BPC-09, BP-08 & BPC-12, BP-11 Hydr Parts
• Ben Pearson Model BPC-09
