Key Features
How The Dustcontrol DC AirCube 500 Compares To Standard Dust Extractors
Facilities needing continuous air filtration in sealed or occupied spaces usually face this question: should I use a standard portable dust extractor, or this dedicated air scrubber built for negative pressure and continuous background filtration?
| Feature | Standard Portable Dust Extractor | Dustcontrol DC AirCube 500 |
|---|---|---|
| Primary Purpose | Source extraction from tools | Continuous room air filtration and negative pressure |
| Weight | 35 lbs and up | 28.7 lbs, lightest in the lineup |
| Speed Control | Fixed or variable by model | Two-stage, economical overnight operation |
| Noise Level | 66-80 dB depending on model | 45-65 dB, quiet enough for occupied spaces |
Product Description
- Developed for ease of use and durability
- Radial blower which is especially designed to build up high pressure across its entire flow range
- Generates a large amount of air flow during the entire lifetime of the filter
- An exhaust hose can be used to create negative pressure in a sealed room
- Two speed settings, which means that the unit can be run economically, for example during the night

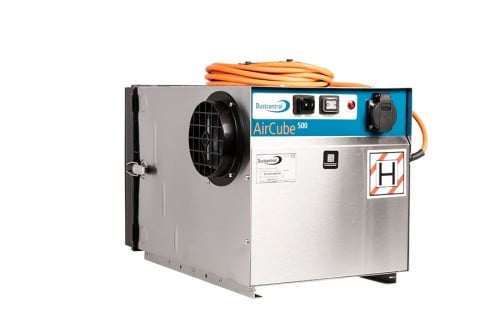

DC AirCube 500 has been developed for ease of use and durability. The fan unit is a radial blower which is especially designed to build up high pressure across its entire flow range. This means that the unit generates a large amount of air flow during the entire lifetime of the filter. An exhaust hose can be used to create negative pressure in a sealed room. The fan has two speed settings, which means that the unit can be run economically, for example during the night.
Supplied with:

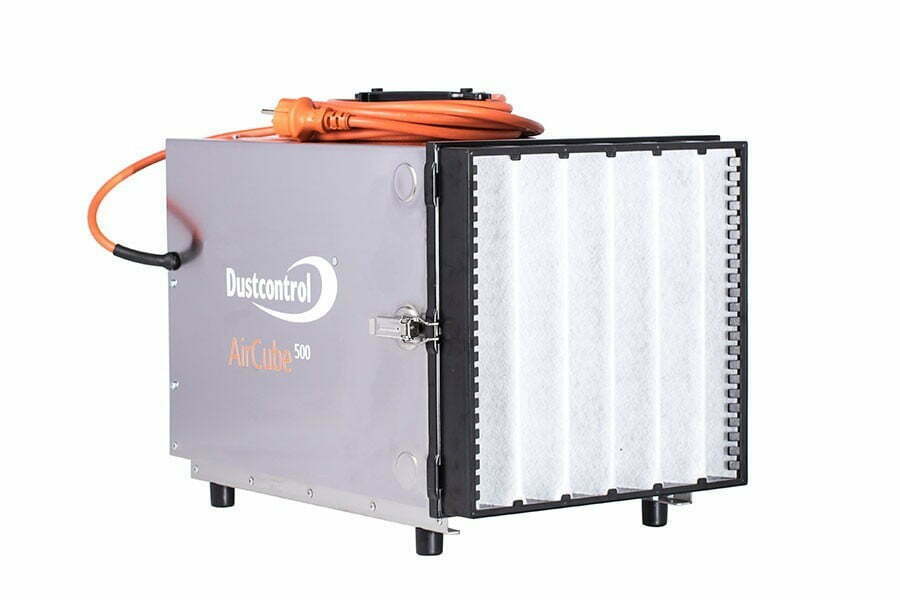

- HEPA H13 filter (42692)
- Pre-filter (42690)
Accessories:
| HxWxD [in] |
5x13.4x19.5 |
|---|---|
| Weight [lb] |
28.7 |
| Inlet Ø [in] |
4.92 |
| Max. flow fan (US/CAN) 115V [CFM/m3/h] |
276/470 |
| Power (US/CAN) 115V [Hp/W] |
0.3/210 |
| Pre-filter, “cartridge” |
G4 |
| Pre-filter, area [ft2] |
1.9 |
| HEPA filter, area [ft2] |
49 |
| Filter classification HEPA filter, EN 1822-1 |
HEPA H13 |
| Degree of separation machine, EN 60335-2-69, Appendix A-A, Class H [%] |
99.995 |
| Speed Control |
Two-stage - min/max |
| Max. sound level [dB(A)], min |
45 |
| Max. sound level [dB(A)], max |
65 |
Documents
Dustcontrol PSI DC AirCube 500
Full Spec Sheet
| Model | 112505, DC AirCube 500 |
| Dimensions | 5 x 13.4 x 19.5 in |
| Weight | 28.7 lbs |
| Inlet | 4.92 in |
| Max Airflow | 276 CFM, 470 m3/h |
| Power | 0.3 HP, 210W |
| Pre-Filter | G4, 1.9 sq ft |
| HEPA Filter Area | 49 sq ft, H13 |
| Machine Separation | 99.995%, Class H |
| Speed Control | Two-stage, min/max |
| Sound Level | 45 dB min, 65 dB max |
