Product Description
Powerful Cutting Capacity

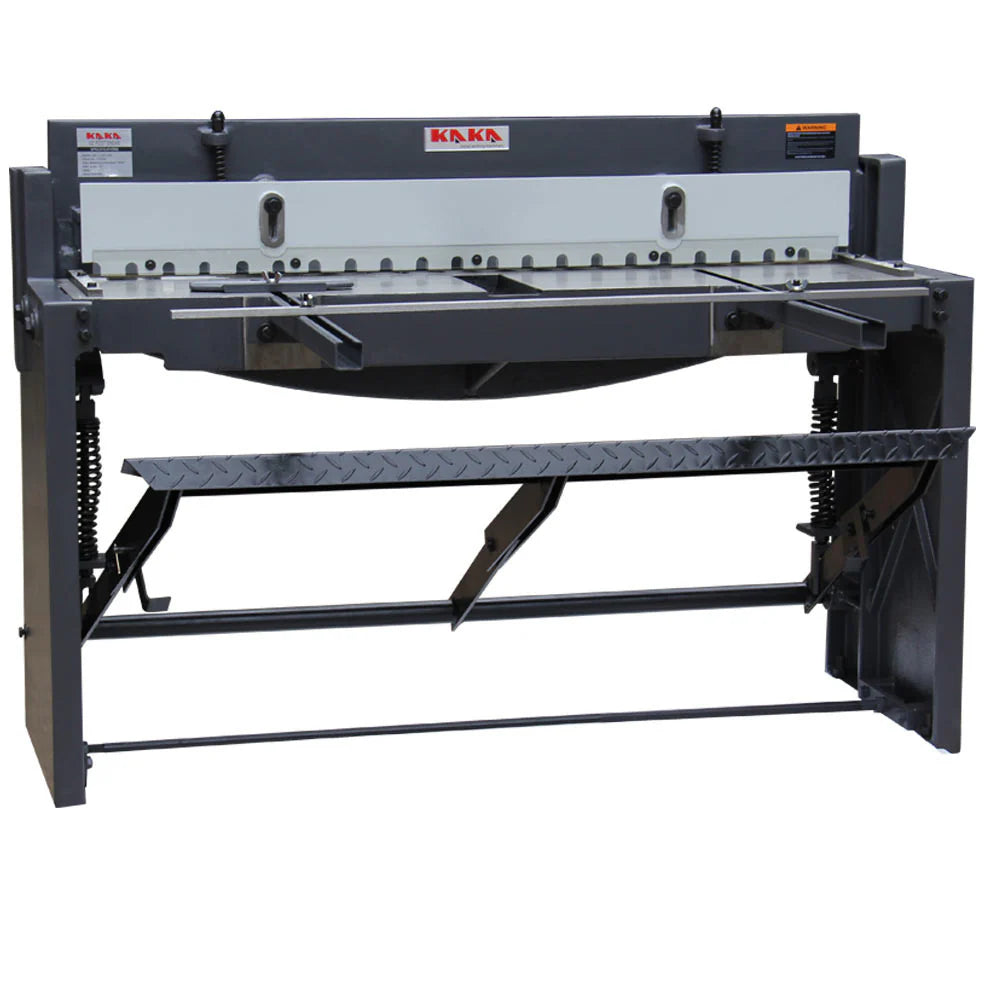

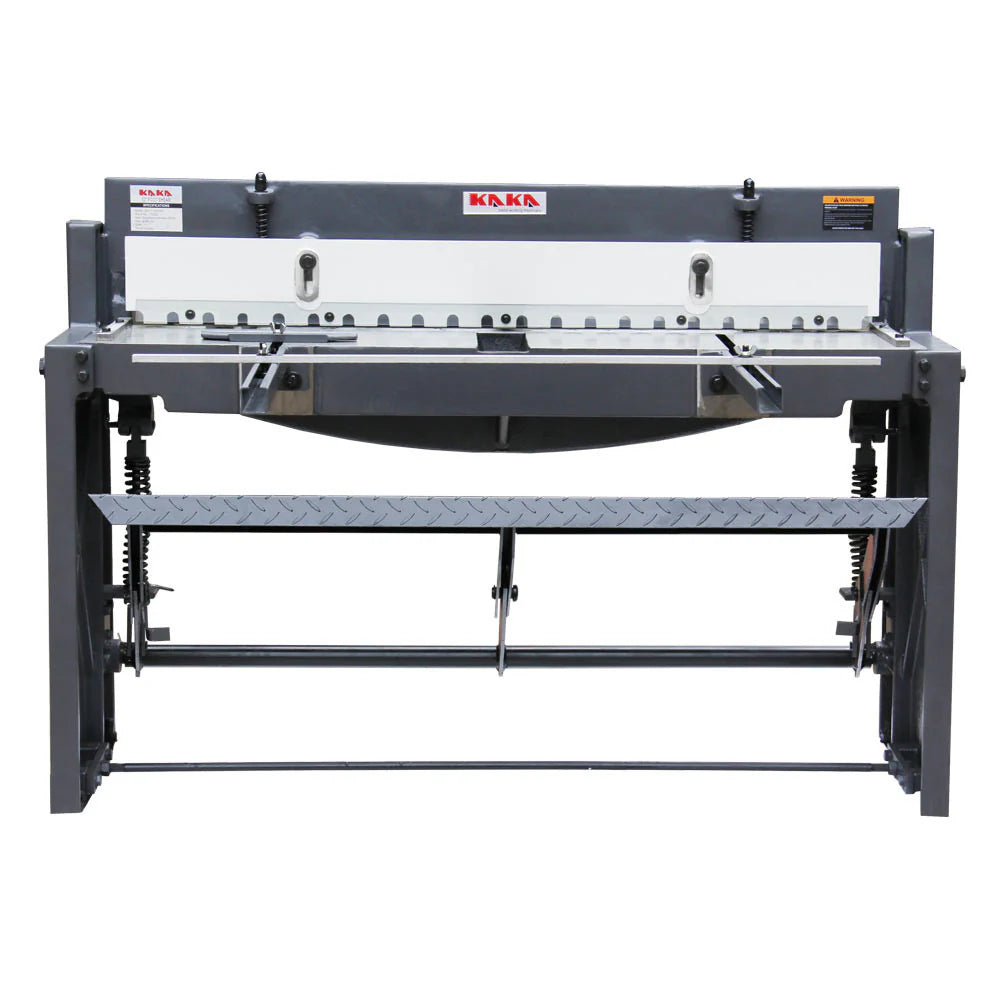

Designed for industrial-grade performance, this 52" foot stomp shear delivers precise, repeatable cuts on various materials. It features a 16-gauge mild steel cutting capacity and can also handle non-ferrous metals such as aluminum, brass, and copper. The foot-pedal operation allows for smooth, controlled shearing, making it ideal for high-precision tasks.
Precision Cutting and Versatility

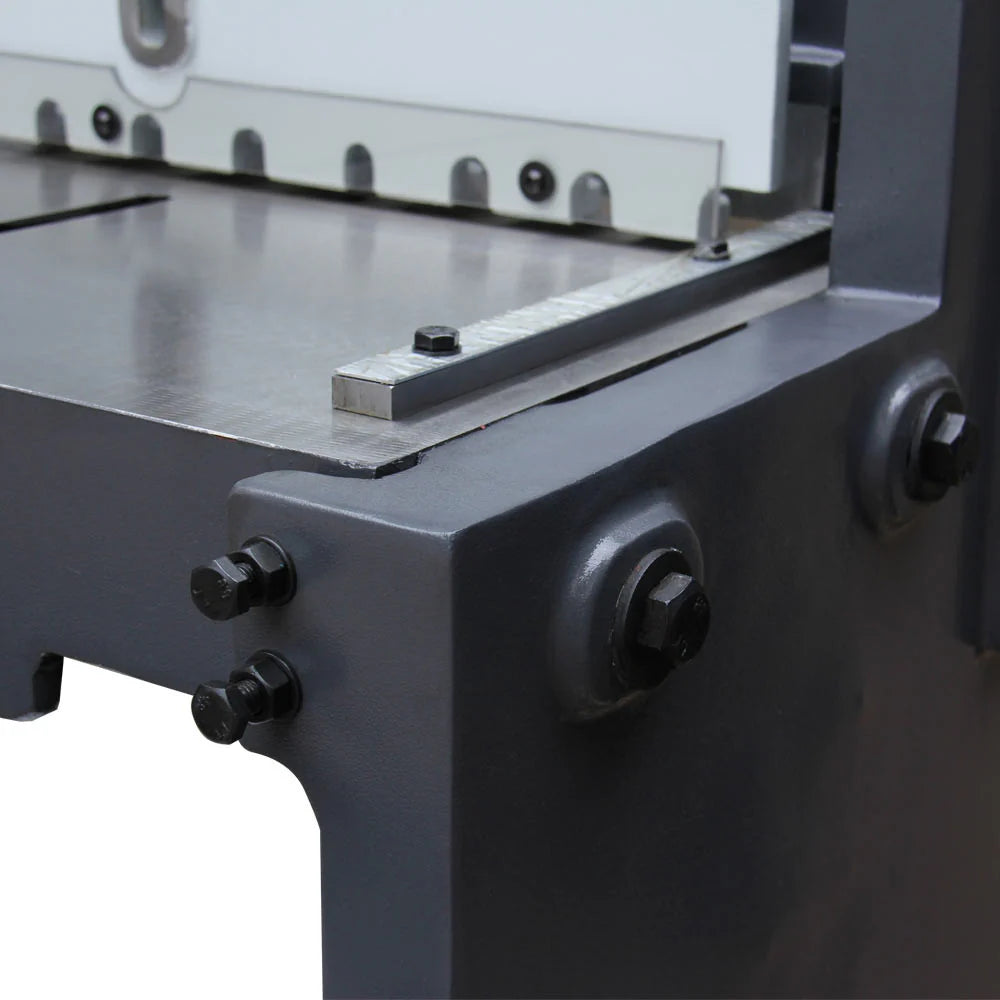

The precision-ground cast-iron shear bed provides an accurate working surface, ensuring consistent results with every cut. The adjustable blade gap clearance allows for smooth cutting of thin materials, enhancing versatility across different applications.
Front and Back Gauges for Precision Cutting

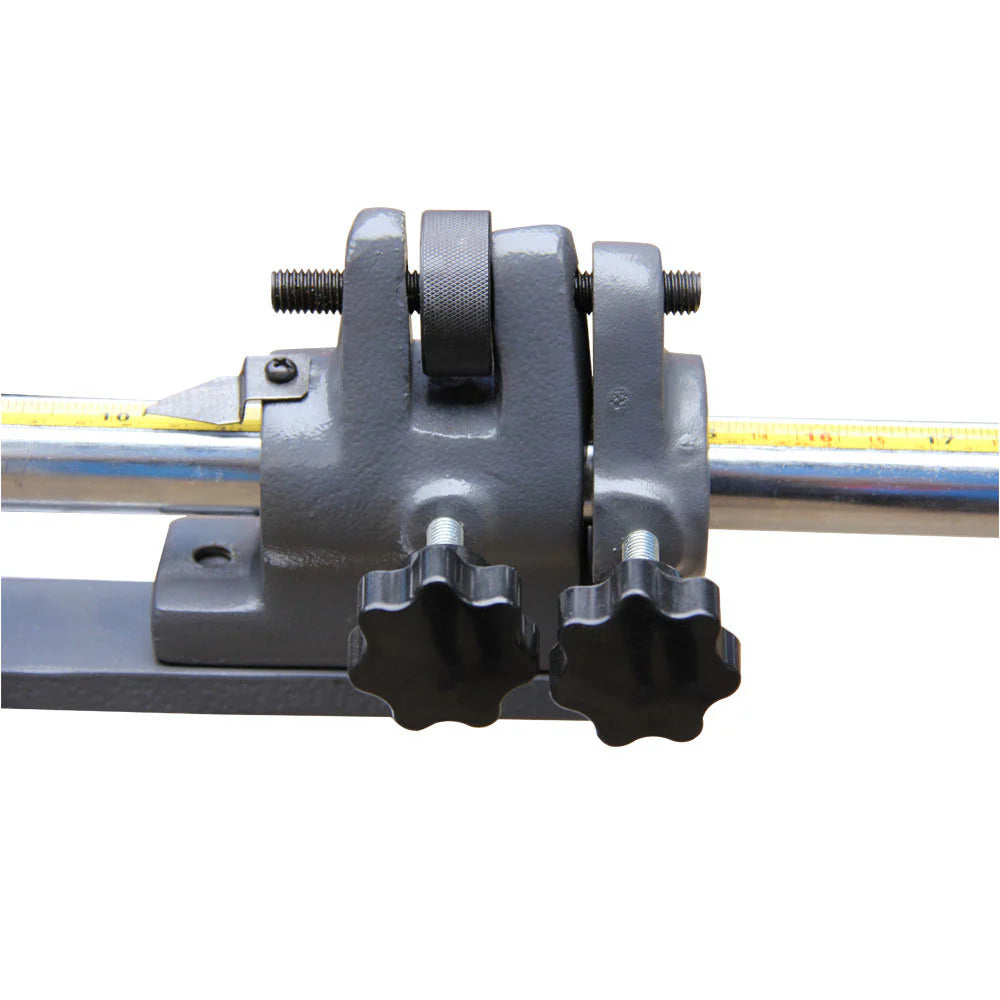

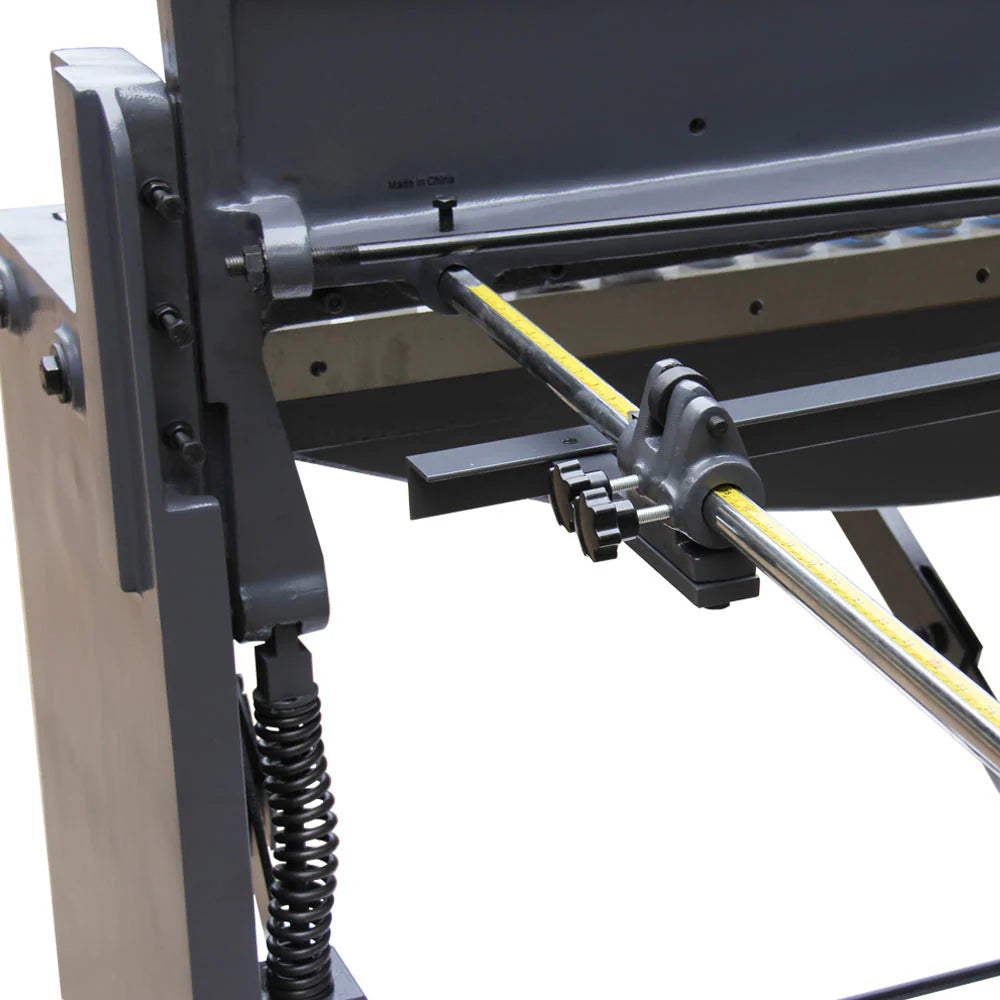

To enhance workflow efficiency, the machine is equipped with both front and back gauges that provide support for material alignment and repeatable cuts. The double-locking back gauge features fine adjustment wheels and measurement scales, allowing for precise positioning. The front stop and angle guide can be quickly adjusted via wing nuts for added convenience. The shear also includes table gauges and front extension arms to accommodate larger sheet metal jobs with ease.

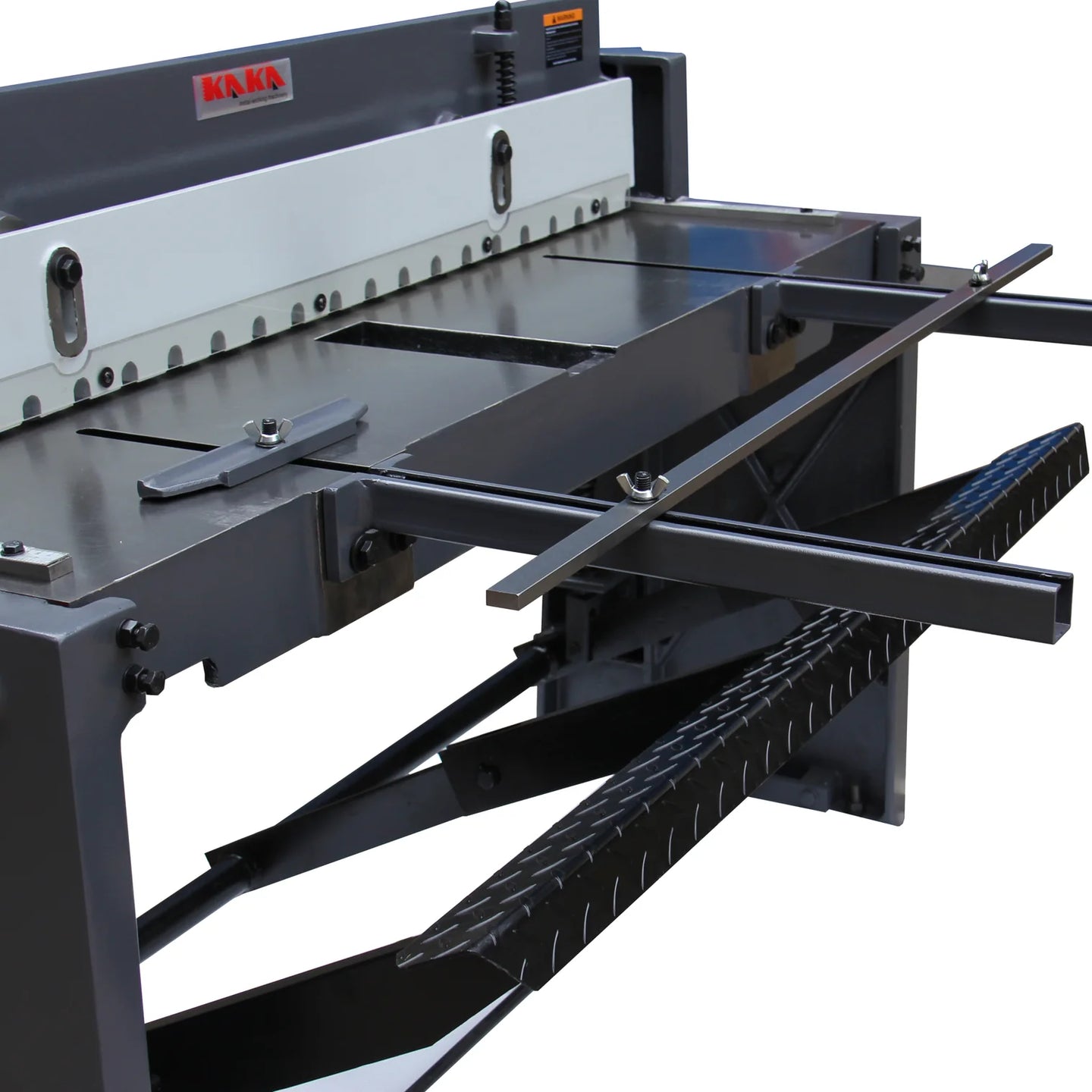

Safe and Efficient Foot-Control Operation

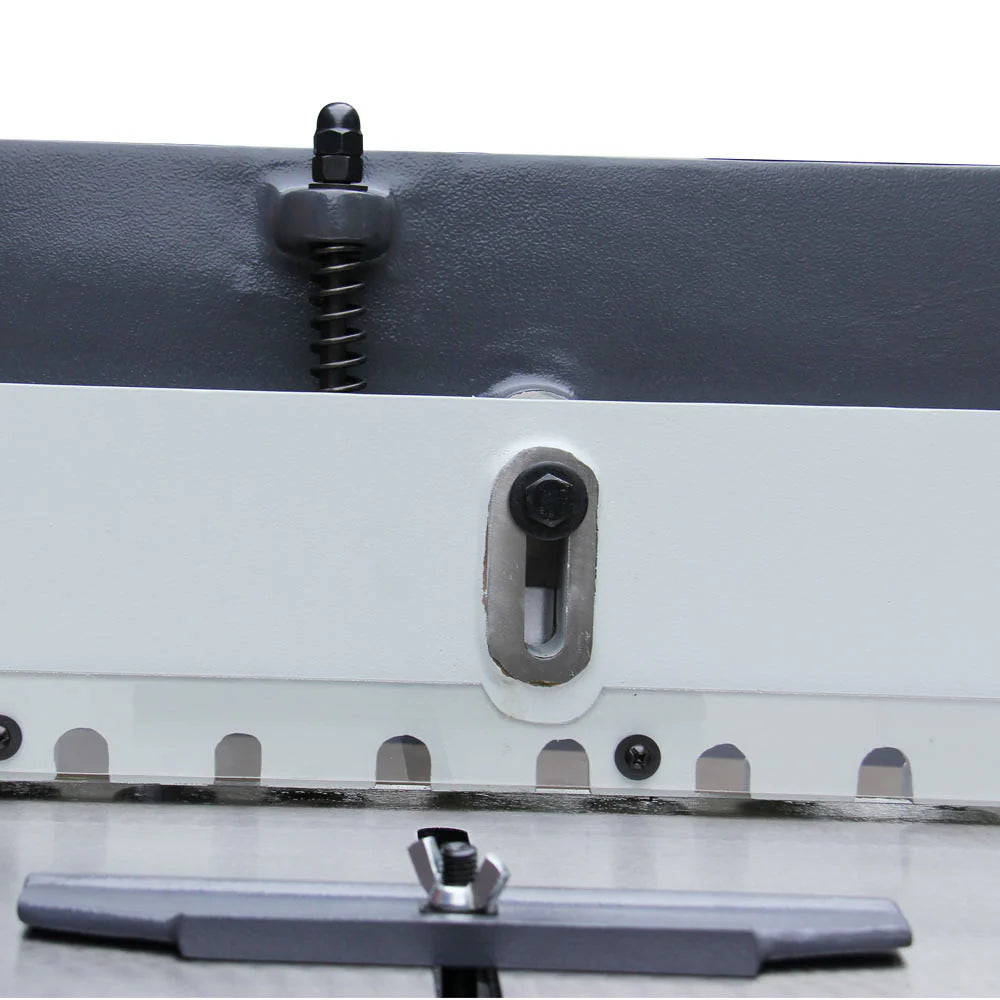

The foot-operated control system enables hands-free material positioning, significantly improving both safety and precision. The integrated spring-activated hold-down clamp securely holds the material in place, preventing unwanted movement during the cutting process.
Stable and Rigid Construction

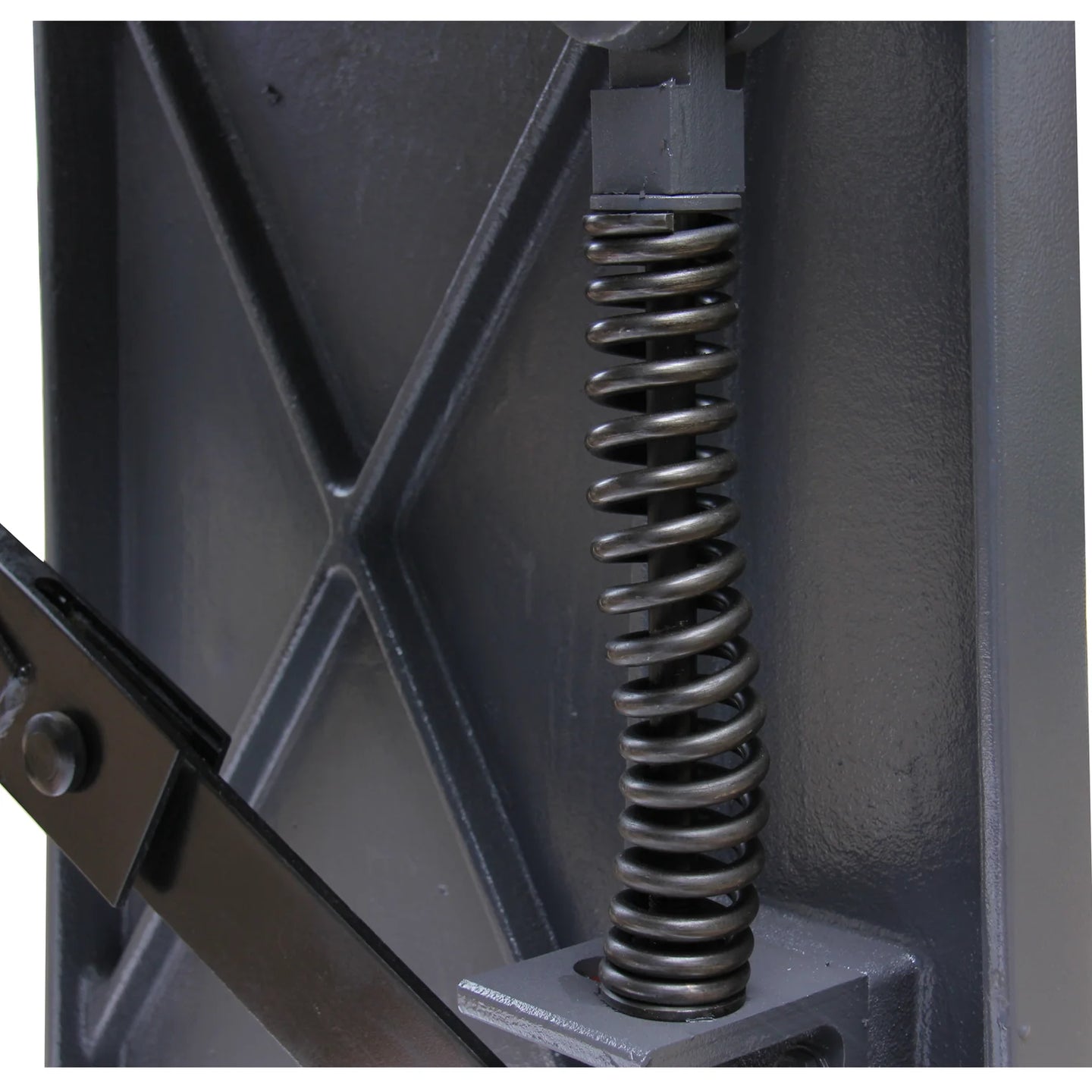

Constructed with a solid cast-iron body, this machine is built for longevity and dependable performance. The heavy-duty frame minimizes vibrations and ensures maximum rigidity, reducing deformation at the start of each cut.
This enhances the stability of the cutting process, producing clean, precise results every time.
Versatile Industrial Applications
Ideal for a variety of metalworking needs, this stomp shear is widely used in industrial settings, fabrication shops, maintenance facilities, and educational institutions. It is also suitable for hobbyists and small workshop applications requiring high-precision shearing of sheet metal materials, including stainless steel, galvanized sheets, aluminum, and more
- Hi-quality cast-iron grade frame to eliminate deflection across the blade-span and blade frame work
- Adjustable clamping bar keeps material secured during operation
- Precise bed and beam alignment assures working accuracy
- Upper blade is a four-way; bottom blade is two-way
- Rear depth gauges with micro adjustment for precise measurements
- 16 gauge maximum capacity for mild-steel
- 14 gauge maximum capacity for aluminum and copper alloys
- 20 gauge maximum capacity for stainless steel
EQUIVALENCY CHART
Mild steel………………………….0.060”
Stainless steel……………………0.036”
SAE 1050 cold rolled steel…0.036”
Aluminum…………………………0.100”
Soft brass………………………….0.072”
1/2 Hard brass………...............0.064”
Annealed phosphor bronze……0.064”
Soft copper…………………………….0.072”
Hard copper……………………………0.064”
ABS plastic………………………..……0.200”
Specification:
- Item No. 172002
-
Model Q01-5216
-
Width 52 in
-
Max. shearing thickness 16 Ga.
-
Back gauge range 0-27.5 in
-
Packing size 66x30x45 in
-
N.W. / G.W. 999/1119 lbs
Standard accessories:
- Back gauge
- Front gauge
- Foot pedal
Documents
Q01-5216 Manual
