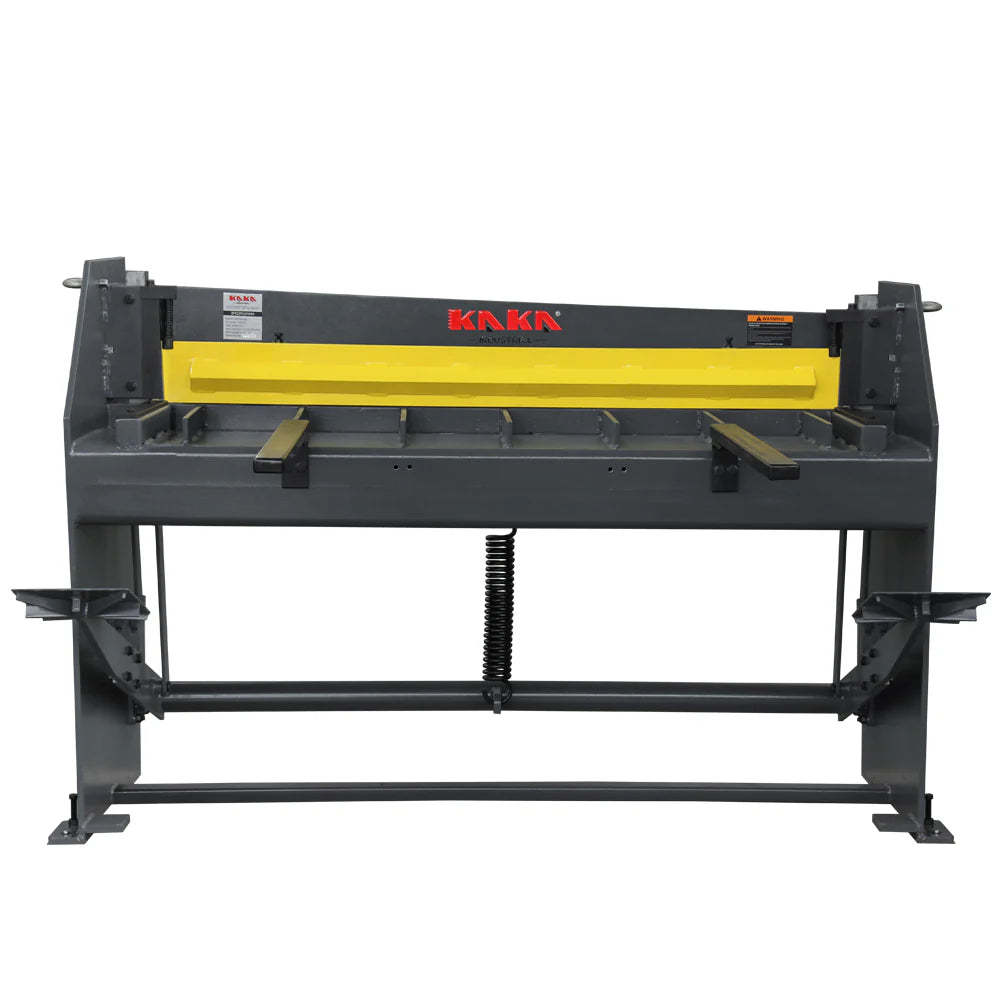

KaKa Industrial 51 inches Stomp Sheet Metal Shearing Machine, 16 Gauge Mild Steel Steel-Welded Industrial Stomp Shear Spring Clamp and Back Gauge Q01-5216B 172015

1. Quality steel-fabrication construction
2. Spring-loaded material clamp beam
3. Light duty and cost-effective
4. Adjustable blade gap clearance for thin material
5. Includes front sheet supports and back gauge

• Item No.:172015
• Model:Q01-5216B
• Max.shearing thickness(in)-mild steel:0.06
• Max.shearing Length(in):51
• Back gauge(in):31
• Packing size(IN):70X23X47
• N.W./G.W.(lb):903/1257

EQUIVALENCY CHART

Mild steel………………………….0.060”

Stainless steel……………………0.036”

SAE 1050 cold rolled steel…0.036”

Aluminum…………………………0.100”

Soft brass………………………….0.072”

1/2 Hard brass………...............0.064”

Annealed phosphor bronze……0.064”

Soft copper…………………………….0.072”

Hard copper……………………………0.064”

ABS plastic………………………..……0.200”

Documents

Q01-5216B Manual
