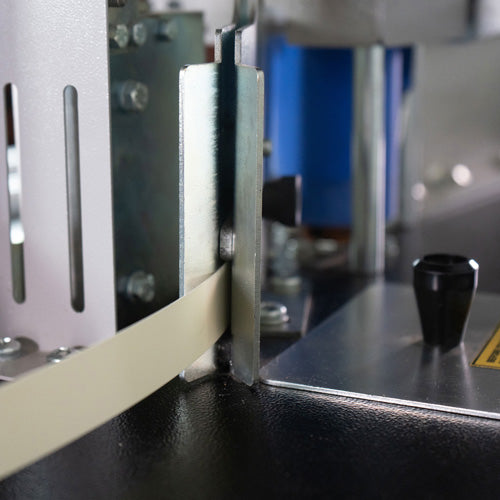

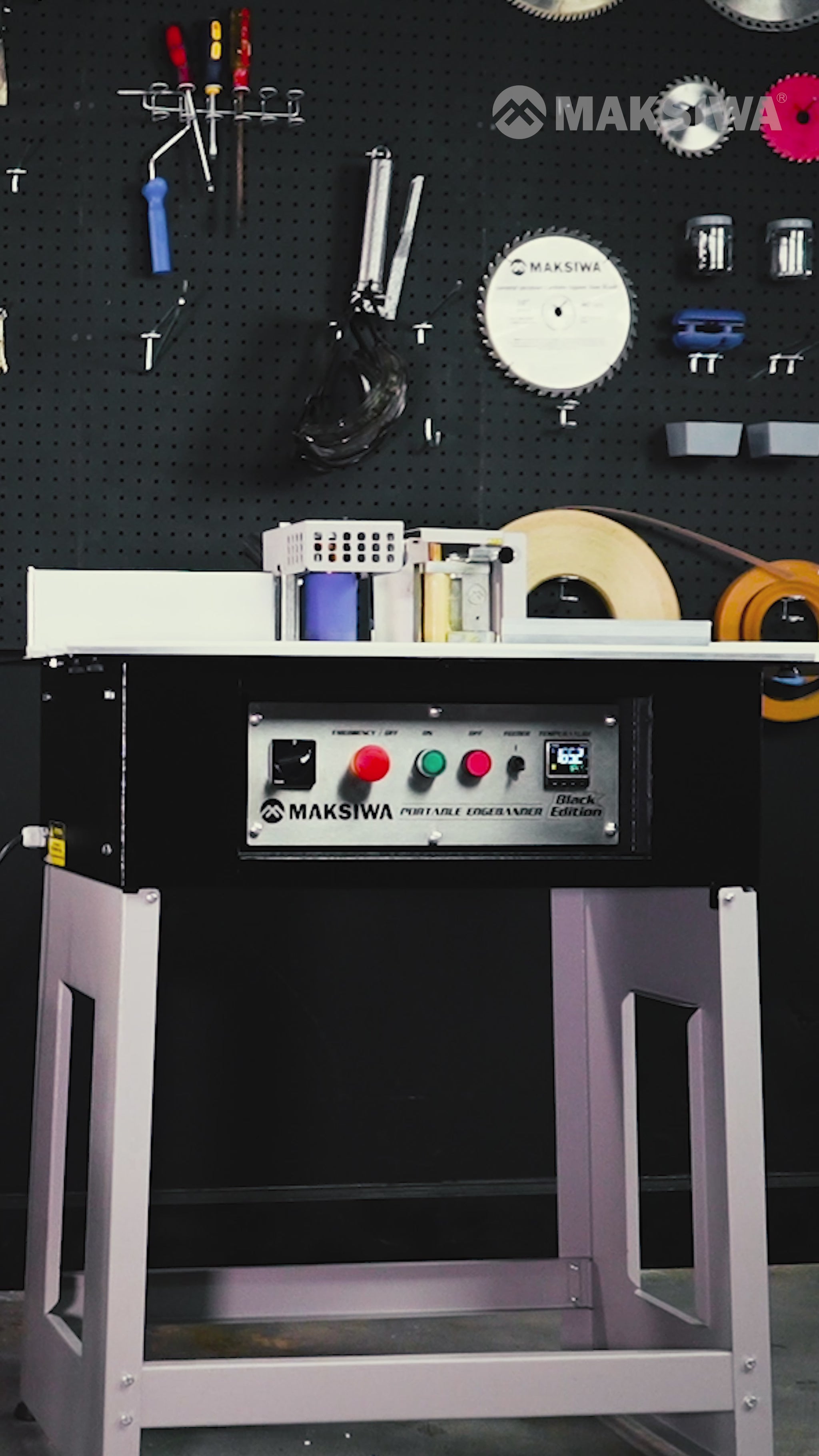

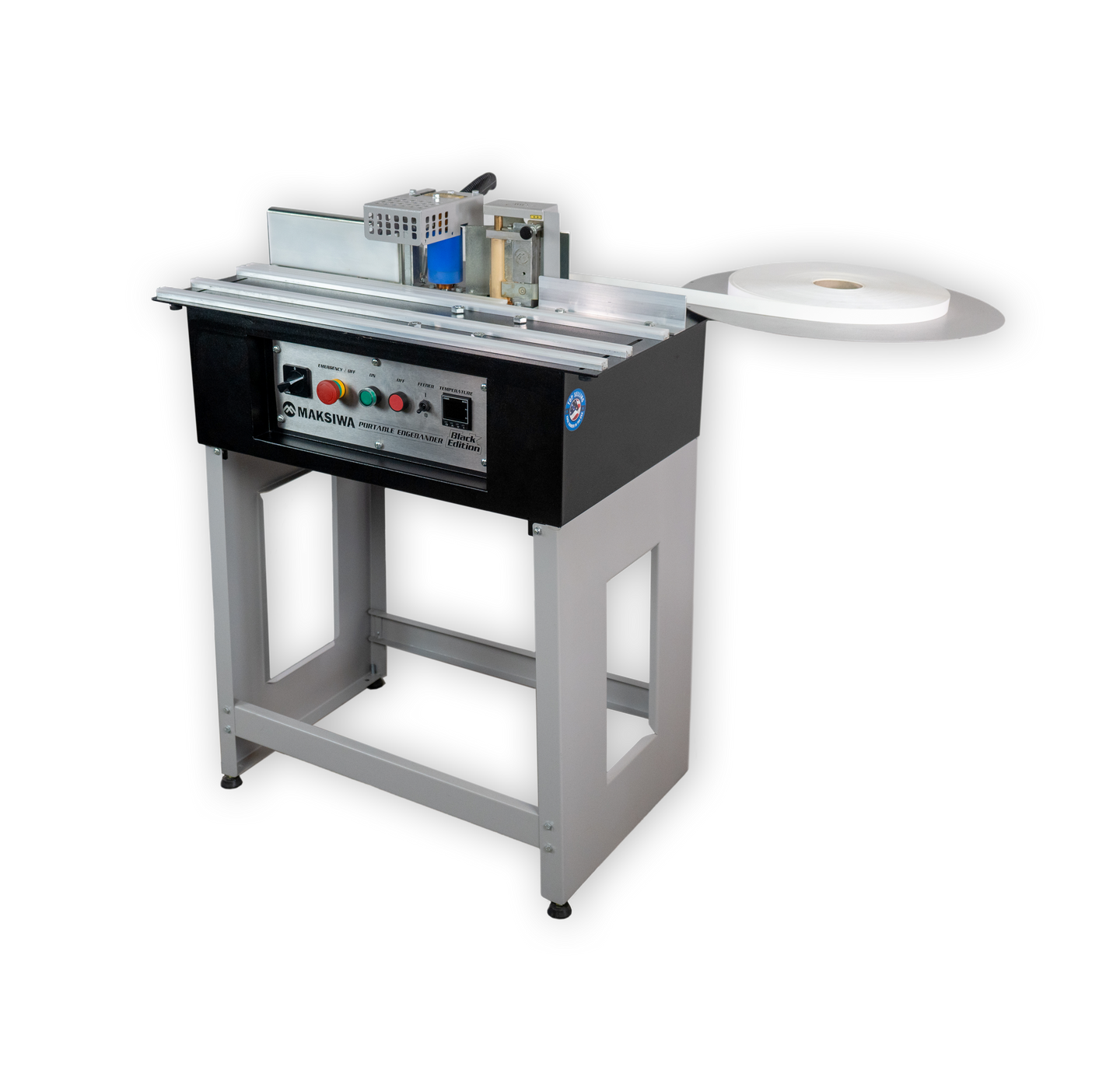

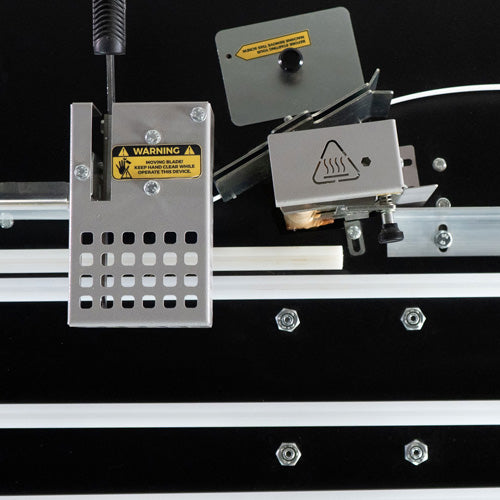

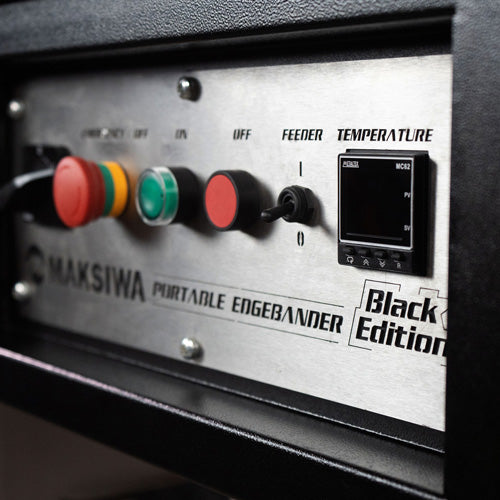

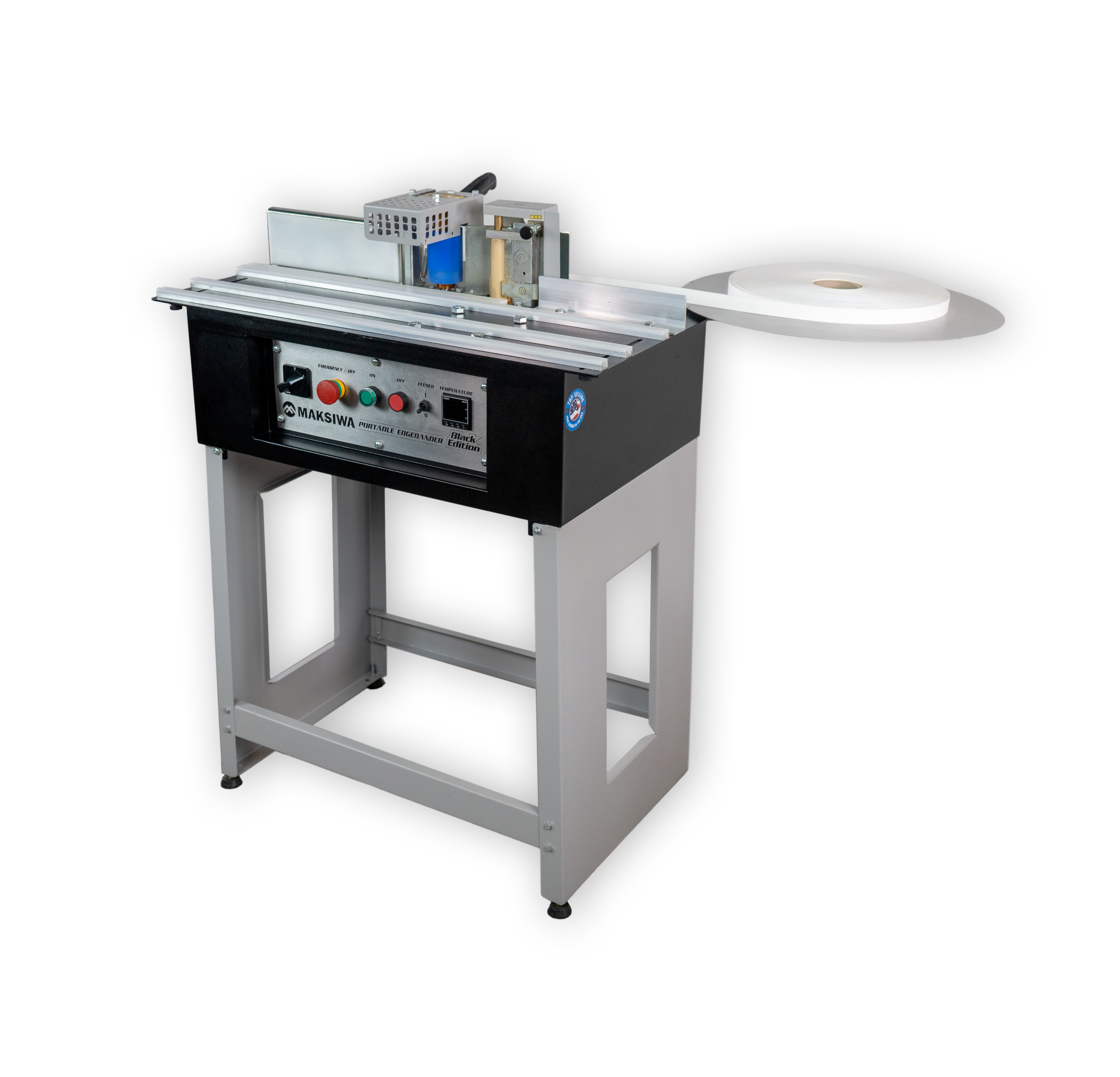

The Portable Edgebander CBC.E is designed for convenience, portability, and efficiency. It has retractable legs for easy transportation. Works with edge banding tape width up to 3” and thickness 0.3mm -2mm. The built-in manual cutter provides a precise cut of the tape. With a digital temperature control panel, you can easily control the glue temperature and the glue pot capacity is 1.5 pounds (700 grams).

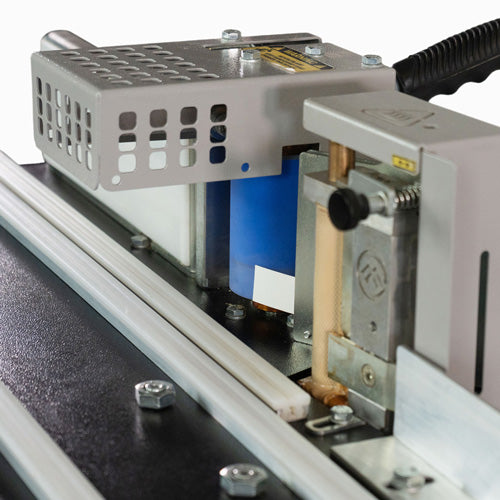

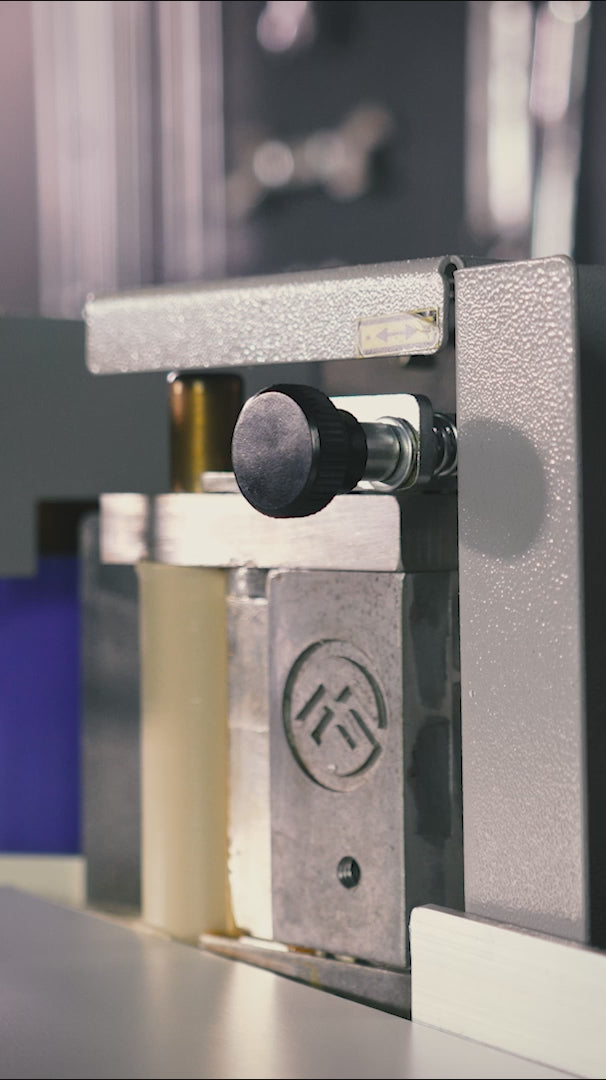

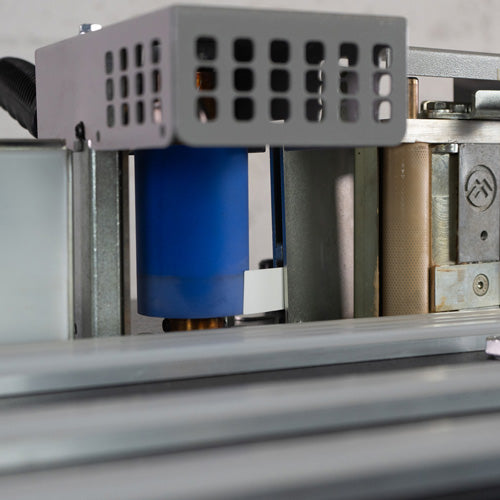

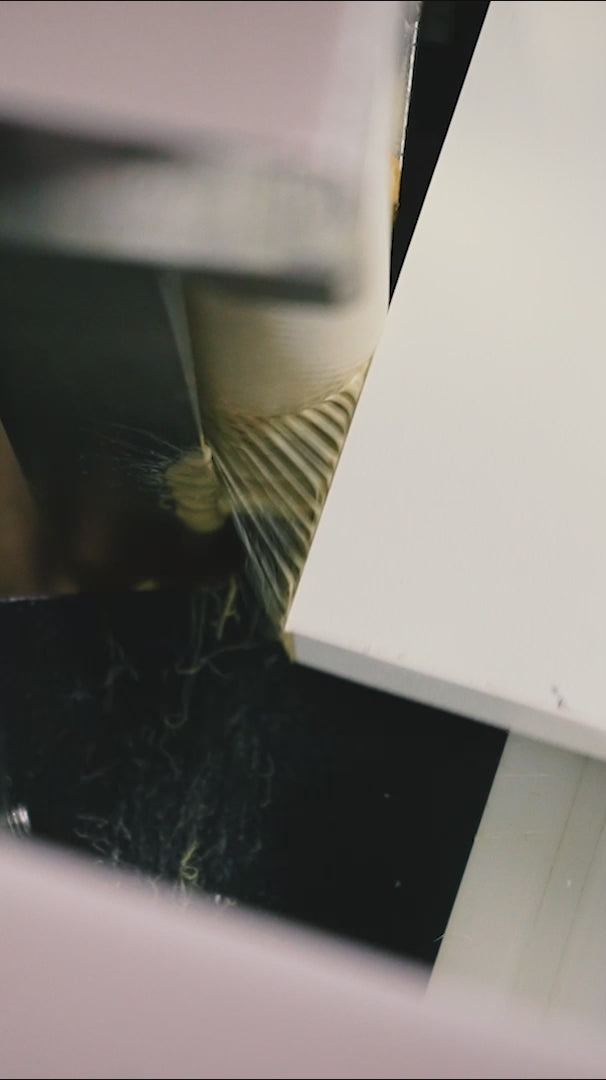

A spiral bar raises the glue from the glue pot and flows back down, similar to a fondue fountain. It uses low temperature pellet glue, Maksiwa recommends glue that work in the range of 130° up to 180° Celsius.

There is also an adjustment for glue flow rate. Safety features include an emergency button, which will instantly shut down all machine controls

Technical Information CBC.E
Electrical specs 1 Phase 110 V 1500 W 60Hz
Motor specs 24 V 10 Amp
Manual Feeding Speed 18ft/min
Max edgebanding Height 3"

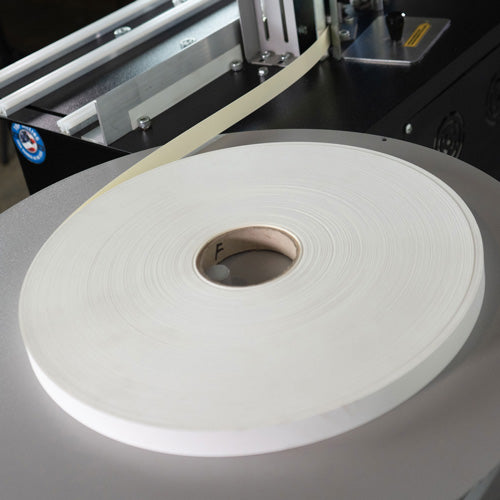

Edgebanding Coil Support Diameter 19 1/2"
Tape Thickness 0.4 - 2mm
Edgebanding Material Melamine /PVC/ABS/PP/ VEENER non-fleeced
Glue Pot Capacity 1.5 lbs
Recommended Glue Temperature Range 130° to 180º C
Glue Pot Tape Granulated Hot-Melt
Max. Machine Dimension 47" x 31" x 42"
Shipping Dimension 32" x 22" x 20"
Weight 114 Lbs.
Warranty 2 years
Technical Info CBC Flex CBC.E CBC.MR CBC/2.MR CBC.T CBC.TPM CBC.PCR
Eletrical specs 1 Phase 110V 550W 60Hz 1 Phase 110V 1500W 60Hz 1 Phase 110V 1500W 60Hz 1 Phase 110V 1500W 60Hz 1 Phase 220V 60Hz 30A 1 Phase 220V 60Hz 30A 1 Phase 220V 60Hz 30A
Feeder Speed 0-19 ft/min 0-18 ft/min 0-26 ft/min 0-26 ft/min 0-16ft/min 21ft/min 18ft/min
Edgebanding Thickness 0.4 – 1mm 0.4 – 2mm 0.4 – 2mm 0.3 – 2mm 0.4 – 3mm 0.4 – 2mm 0.4 – 3mm
Glue Temperature 130° to 180° C 130° to 180° C 130° to 180° C 130° to 180° C 180° to 210° C 180° to 210° C 180° to 210° C
Glue Pot Type Low Temp. Granulated Hot-Melt EVA Low Temp. Granulated Hot-Melt EVA Low Temp. Granulated Hot-Melt EVA Low Temp. Granulated Hot-Melt EVA High Temp. Granulated Hot-Melt EVA Granulated Hot-Melt EVA Granulated Hot-Melt EVA / PUR
Workarea - 39 3/8" x 15 3/4" 101 3/4" x 15 3/4" 101 3/4" x 15 3/4" 78 3/4" x 10 2/5" 93 1/2" x 41" 119"x40"
Max Edgebanding Height 1/2" to 1 7/8" 3" 3" 3" 2" 1" 2"
Panel Thickness 1/2" to 1 7/8" 3" 3" 3" 12-45mm 10-40mm 8-50mm
Weight 21 Lbs 114 Lbs 242.5 Lbs 330 lbs 1025 Lbs 1146 Lbs 1653 Lbs
Machine Dimension 11" x 14" x 13 1/2" 47" x 31" x 42" 101 3/4" x 35 1/2 x 43" (101 3/4") 58" x 43" x 43" 112" x 63" x 51" 93. 1/2" x 41" x 53" 119" x 41" x 49"
End Trim - Manual Manual Manual Pneumatic Pneumatic Pneumatic
