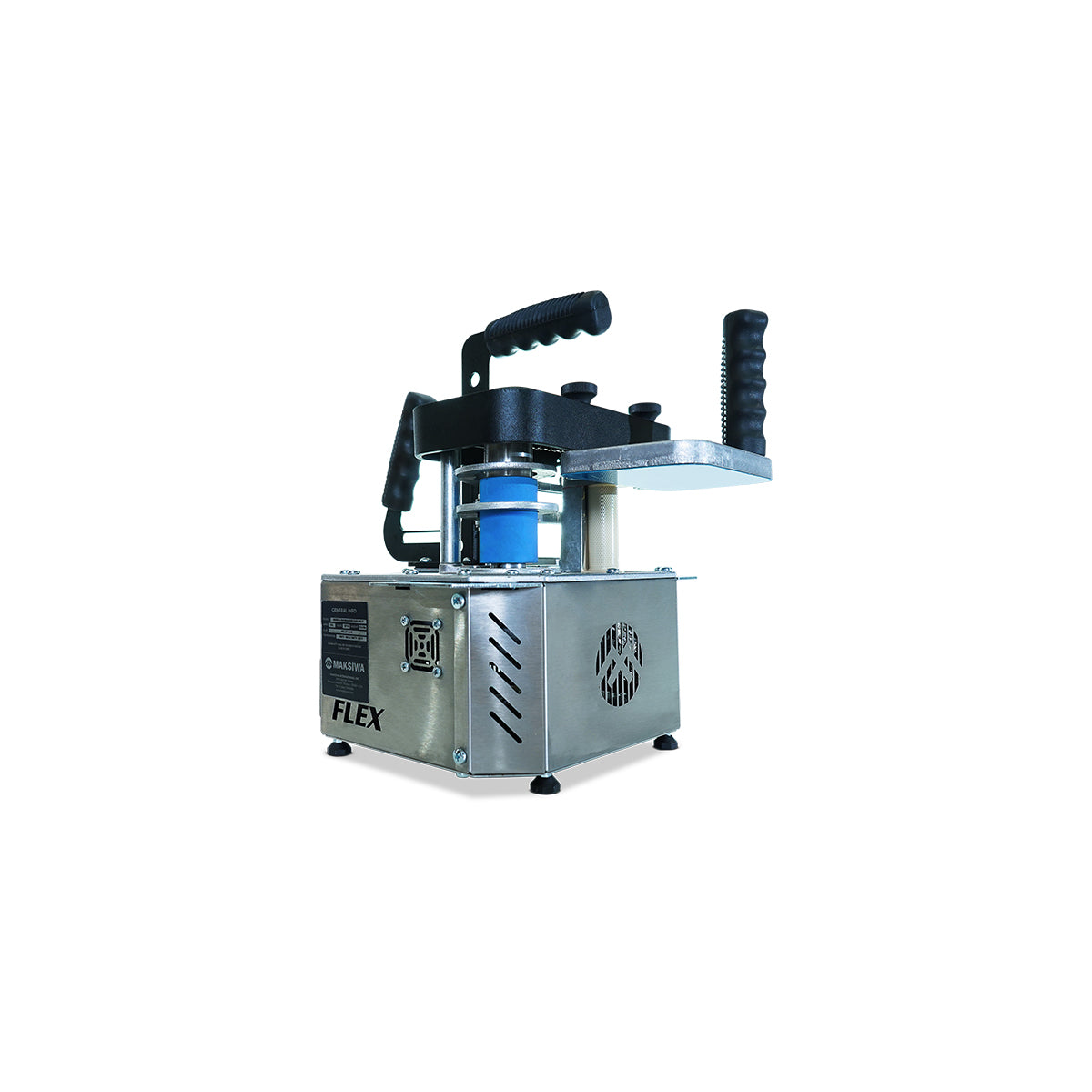

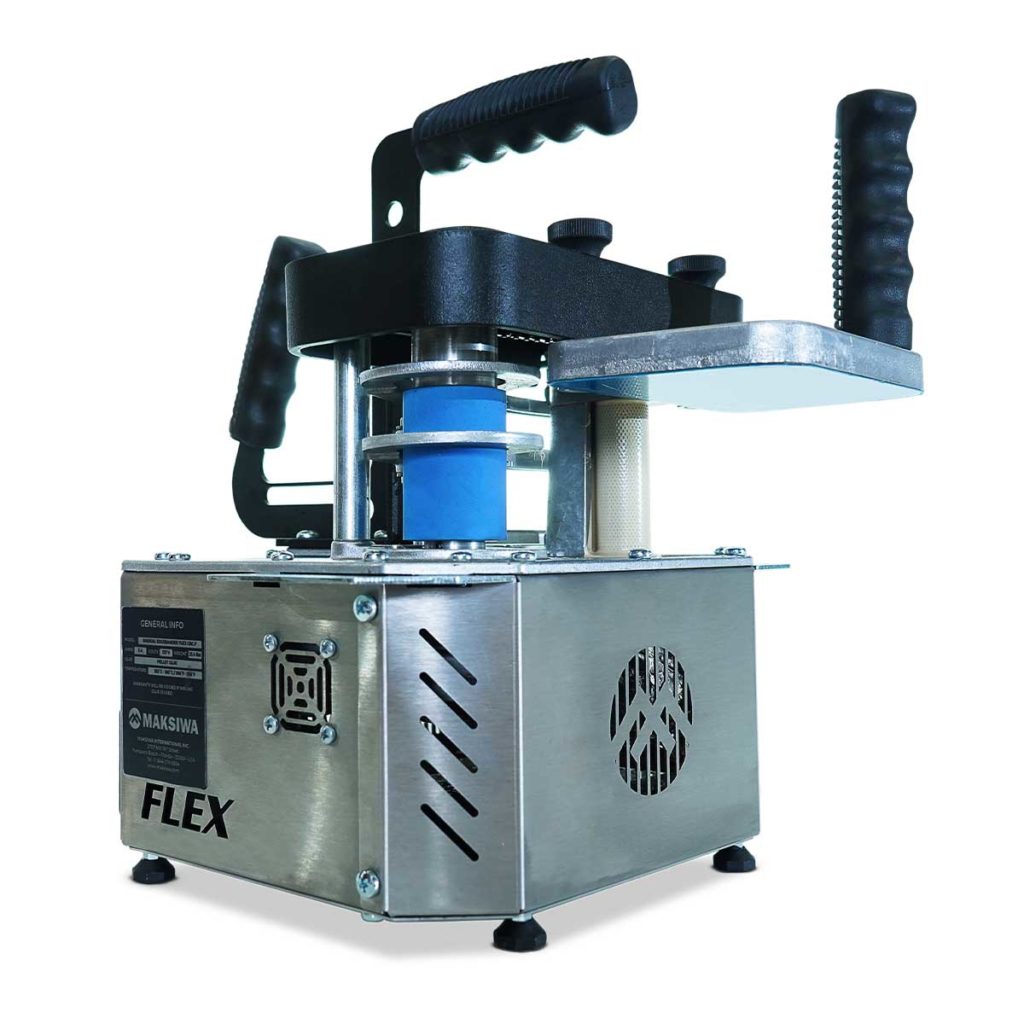

The hand-held CBC FLEX is perfect to apply edge banding tape to concave and convex curved pieces. Being super portable and weighing only 21 pounds, this machine is ideal for extensive jobs. It has a digital temperature control and adjustable feeder speed. The CBC FLEX is perfect for the woodworker who needs agility and versatility in their daily production.

VERSATILITY

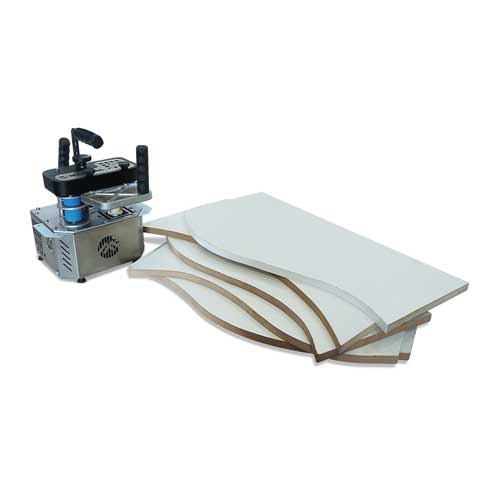

Perfect for bonding edge tapes to curved pieces.

EASY OPERATION

CBC FLEX is lightweight and easy to operate.

STATIONARY

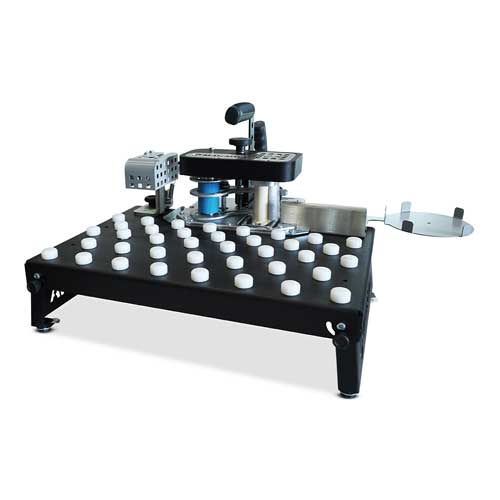

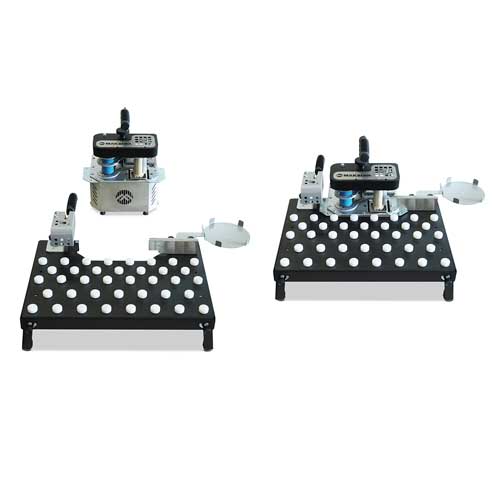

The FLEX is suittable for mobile or stationary use. Conversion to become a stationary edge bander using the accompanying mounting plate.

EASY INSTALLATION

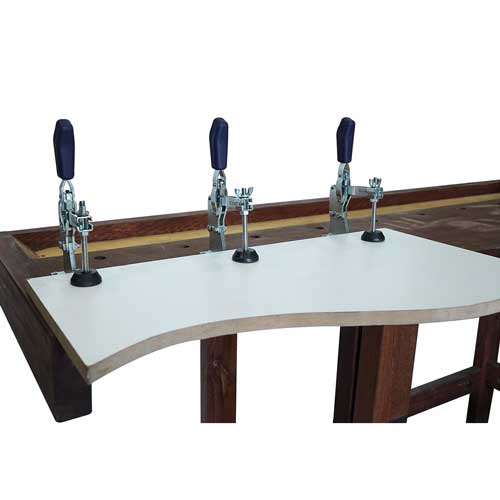

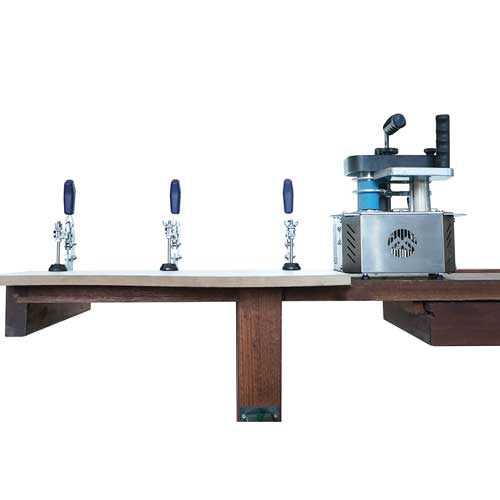

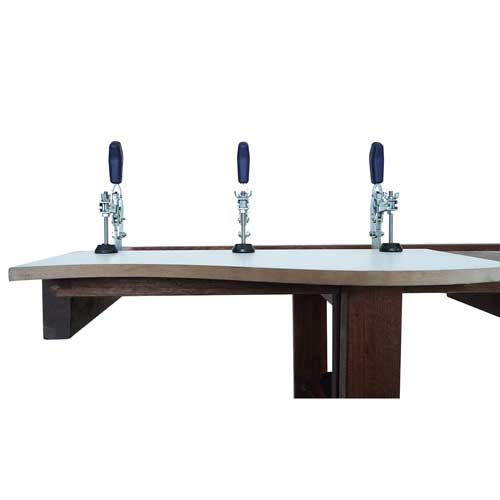

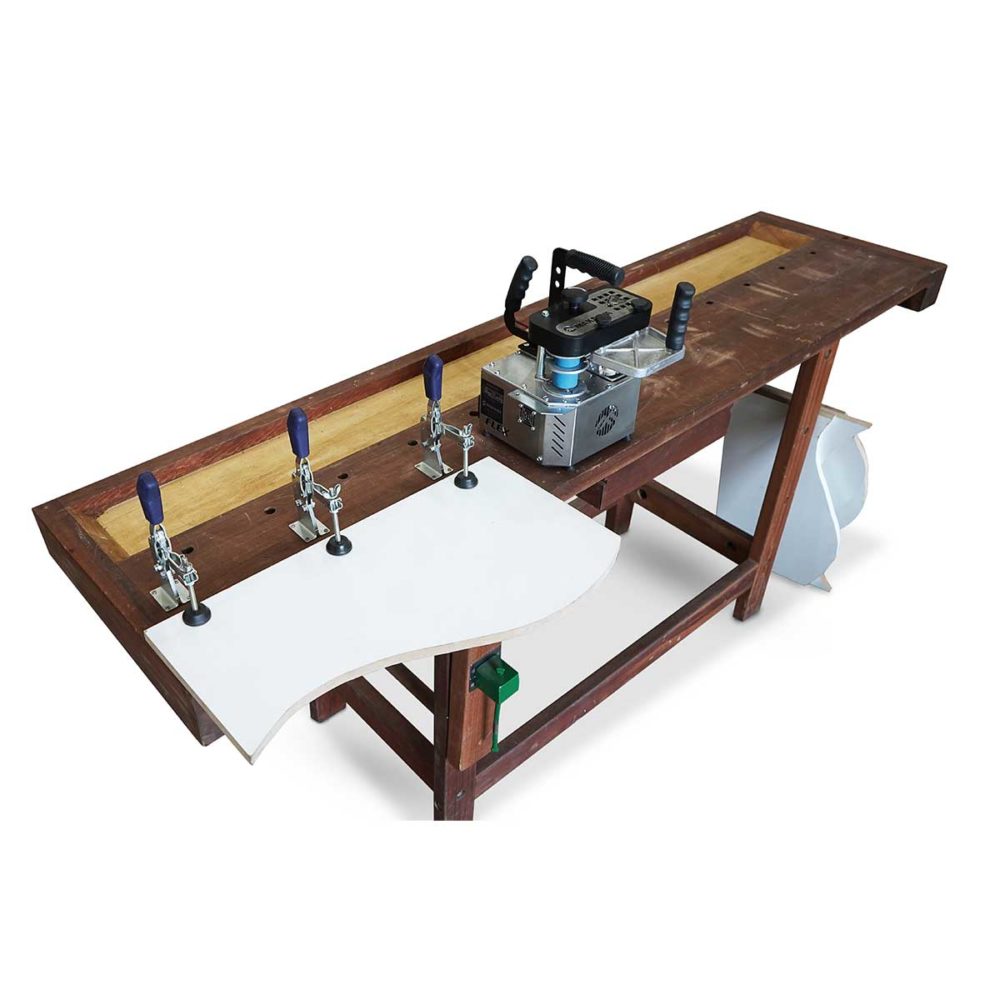

With the Fix Clamps, the CBC FLEX can be installed in any workbench.

Technical Information CBC FLEX
Glue Granulated Hot-Melt
Glue Temperature 130° to 180º C
Motor specs 1 Phase 127 V 5.5 A 700 W
Tape thickness 0.3 mm – 1 mm
Max. tape width 0-35/64” to 1-57/64”
Feeder speed 0 to 19 ft/min
Weight 21 Lbs
Warranty 2 years
Technical Info CBC Flex CBC.E CBC.MR CBC/2.MR CBC.T CBC.TPM CBC.PCR
Eletrical specs 1 Phase 110V 550W 60Hz 1 Phase 110V 1500W 60Hz 1 Phase 110V 1500W 60Hz 1 Phase 110V 1500W 60Hz 1 Phase 220V 60Hz 30A 1 Phase 220V 60Hz 30A 1 Phase 220V 60Hz 30A
Feeder Speed 0-19 ft/min 0-18 ft/min 0-26 ft/min 0-26 ft/min 0-16ft/min 21ft/min 18ft/min
Edgebanding Thickness 0.4 – 1mm 0.4 – 2mm 0.4 – 2mm 0.3 – 2mm 0.4 – 3mm 0.4 – 2mm 0.4 – 3mm
Glue Temperature 130° to 180° C 130° to 180° C 130° to 180° C 130° to 180° C 180° to 210° C 180° to 210° C 180° to 210° C
Glue Pot Type Low Temp. Granulated Hot-Melt EVA Low Temp. Granulated Hot-Melt EVA Low Temp. Granulated Hot-Melt EVA Low Temp. Granulated Hot-Melt EVA High Temp. Granulated Hot-Melt EVA Granulated Hot-Melt EVA Granulated Hot-Melt EVA / PUR
Workarea - 39 3/8" x 15 3/4" 101 3/4" x 15 3/4" 101 3/4" x 15 3/4" 78 3/4" x 10 2/5" 93 1/2" x 41" 119"x40"
Max Edgebanding Height 1/2" to 1 7/8" 3" 3" 3" 2" 1" 2"
Panel Thickness 1/2" to 1 7/8" 3" 3" 3" 12-45mm 10-40mm 8-50mm
Weight 21 Lbs 114 Lbs 242.5 Lbs 330 lbs 1025 Lbs 1146 Lbs 1653 Lbs
Machine Dimension 11" x 14" x 13 1/2" 47" x 31" x 42" 101 3/4" x 35 1/2 x 43" (101 3/4") 58" x 43" x 43" 112" x 63" x 51" 93. 1/2" x 41" x 53" 119" x 41" x 49"
End Trim - Manual Manual Manual Pneumatic Pneumatic Pneumatic
