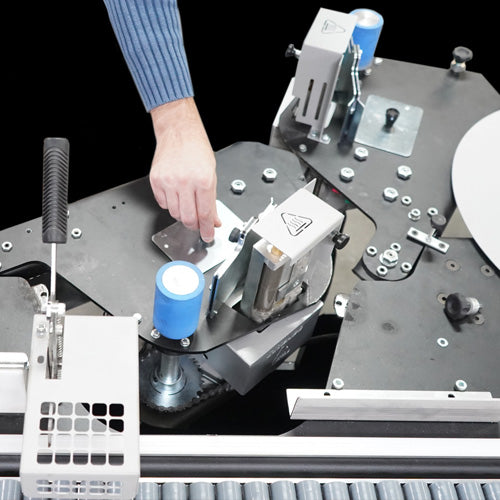

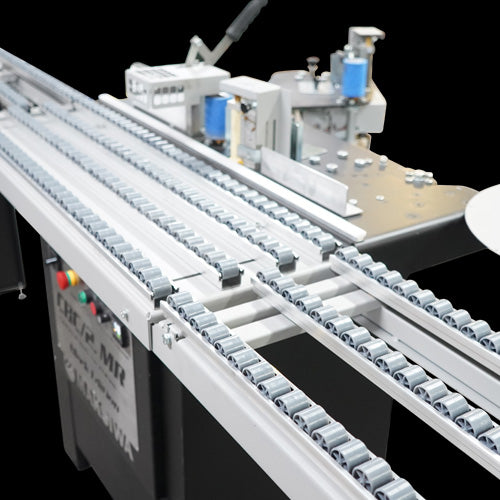

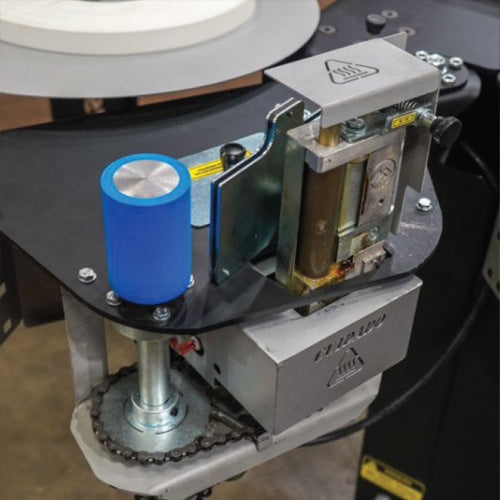

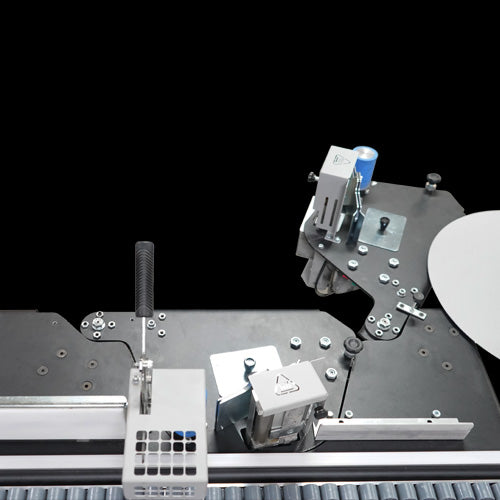

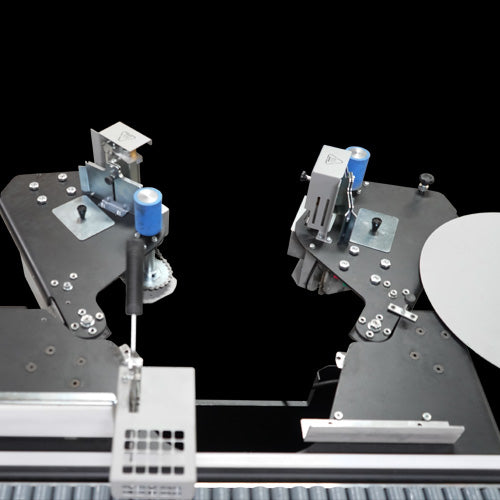

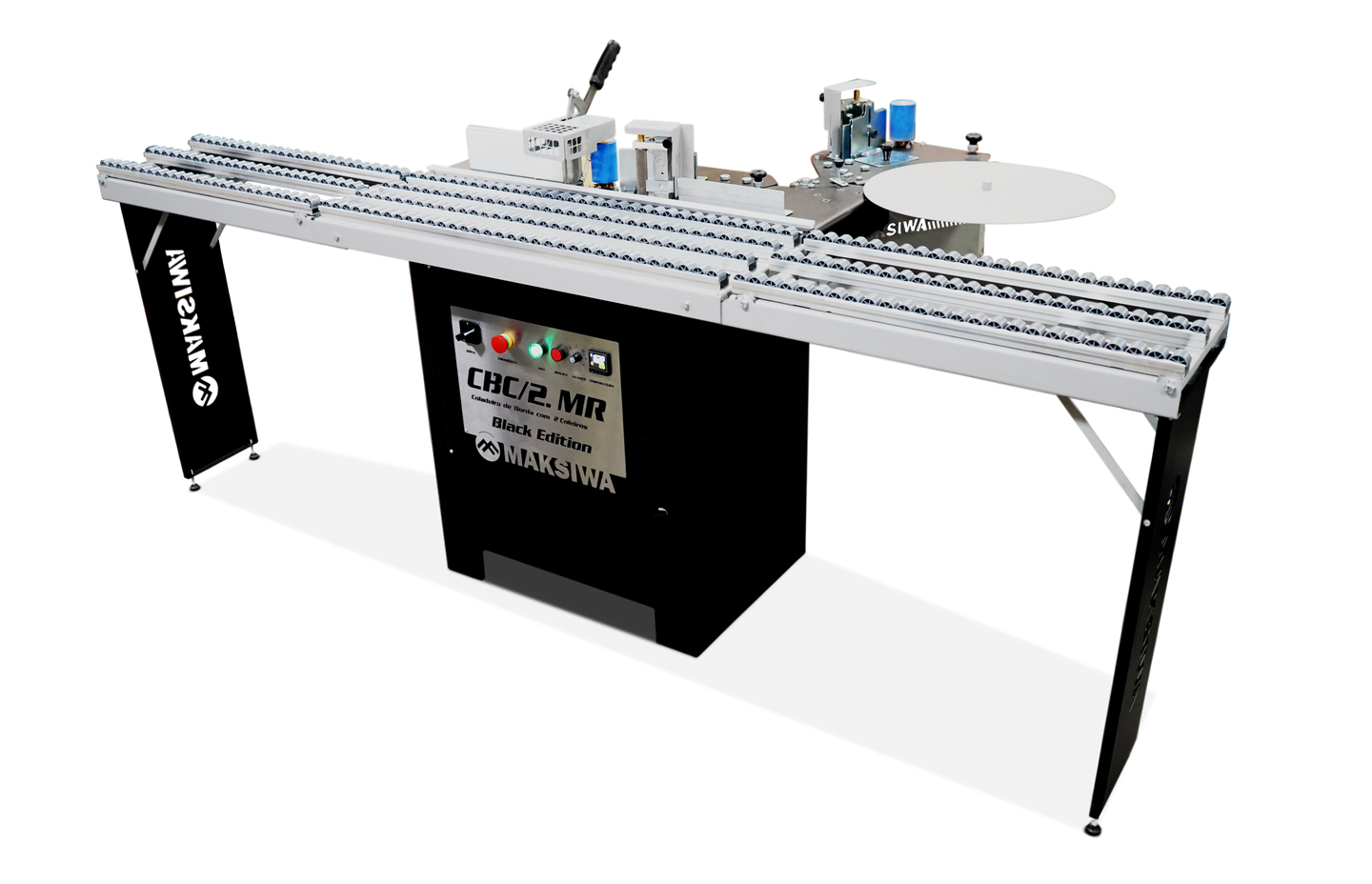

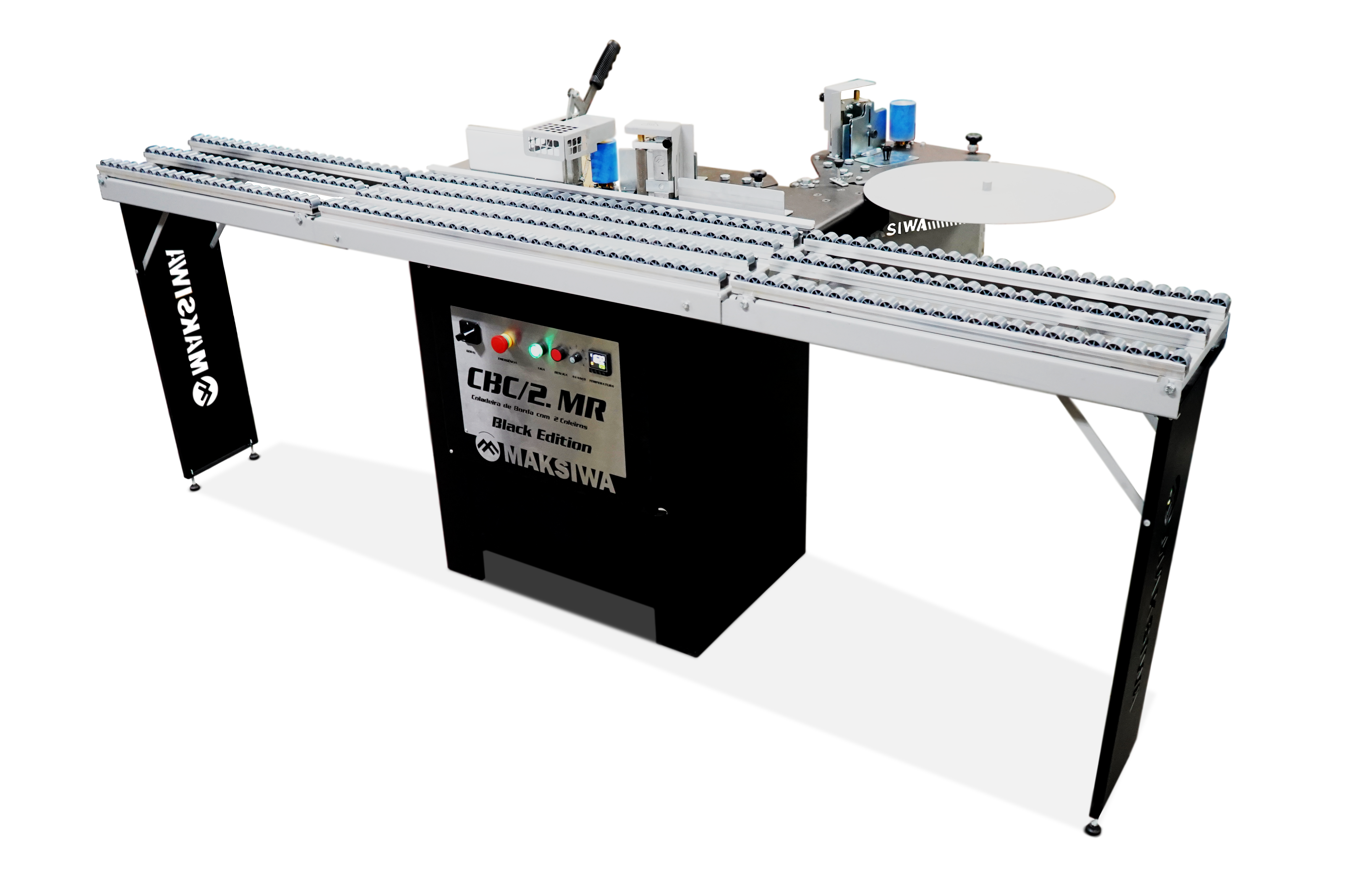

Cabinet edgebander with Dual Glue Pot is loaded with an extension table and 2 interchangeable glue pots, MAKSIWA’s CBC/2.MR Cabinet Edgebander works with the most commonly used edge tape materials such as Melamine/PVC/ABS/PP/VEENER non-fleeced.

Technical Information CBC/2.MR
Eletrical specs 1 Phase 110V 1500W 60Hz
Dual Motor Specs 24 V 10 AMPS
Manual Feeding speed 0-26 FT/MIN
Max Edgebanding Height 3"
Edgebanding coil Support Diameter 19 1/2"
Edgebanding thickness 0.4 - 2 MM
Edgebanding Material Melamine /PVC/ABS/PP/ VEENER non-fleeced
Glue Pot Capacity 1.5 Lbs
Recommend Glue Temperature Range 130 - 180°C
Glue Pot Tape Granulated Hot-Melt
(Extensions open) Machine dimensions (LxWxH) (101 3/4") 58" x 43" x 43"
Shipping Dimensions (LxWxH) 47 x 30 x 50
Weight 330 lbs
Technical Info CBC Flex CBC.E CBC.MR CBC/2.MR CBC.T CBC.TPM CBC.PCR
Eletrical specs 1 Phase 110V 550W 60Hz 1 Phase 110V 1500W 60Hz 1 Phase 110V 1500W 60Hz 1 Phase 110V 1500W 60Hz 1 Phase 220V 60Hz 30A 1 Phase 220V 60Hz 30A 1 Phase 220V 60Hz 30A
Feeder Speed 0-19 ft/min 0-18 ft/min 0-26 ft/min 0-26 ft/min 0-16ft/min 21ft/min 18ft/min
Edgebanding Thickness 0.4 – 1mm 0.4 – 2mm 0.4 – 2mm 0.3 – 2mm 0.4 – 3mm 0.4 – 2mm 0.4 – 3mm
Glue Temperature 130° to 180° C 130° to 180° C 130° to 180° C 130° to 180° C 180° to 210° C 180° to 210° C 180° to 210° C
Glue Pot Type Low Temp. Granulated Hot-Melt EVA Low Temp. Granulated Hot-Melt EVA Low Temp. Granulated Hot-Melt EVA Low Temp. Granulated Hot-Melt EVA High Temp. Granulated Hot-Melt EVA Granulated Hot-Melt EVA Granulated Hot-Melt EVA / PUR
Workarea - 39 3/8" x 15 3/4" 101 3/4" x 15 3/4" 101 3/4" x 15 3/4" 78 3/4" x 10 2/5" 93 1/2" x 41" 119"x40"
Max Edgebanding Height 1/2" to 1 7/8" 3" 3" 3" 2" 1" 2"
Panel Thickness 1/2" to 1 7/8" 3" 3" 3" 12-45mm 10-40mm 8-50mm
Weight 21 Lbs 114 Lbs 242.5 Lbs 330 lbs 1025 Lbs 1146 Lbs 1653 Lbs
Machine Dimension 11" x 14" x 13 1/2" 47" x 31" x 42" 101 3/4" x 35 1/2 x 43" (101 3/4") 58" x 43" x 43" 112" x 63" x 51" 93. 1/2" x 41" x 53" 119" x 41" x 49"
End Trim - Manual Manual Manual Pneumatic Pneumatic Pneumatic
