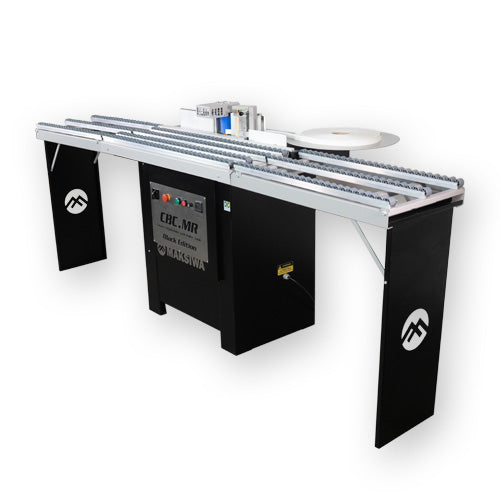

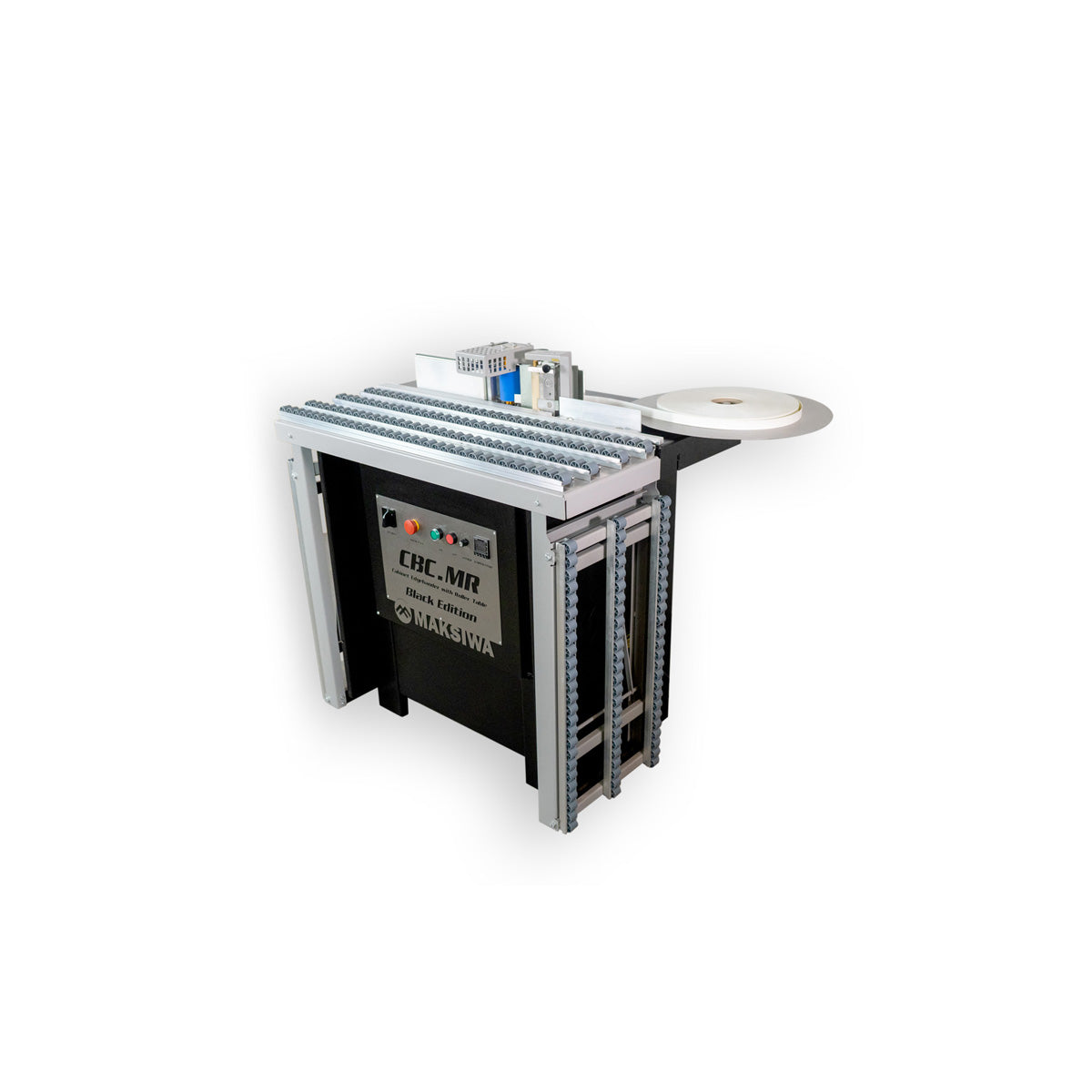

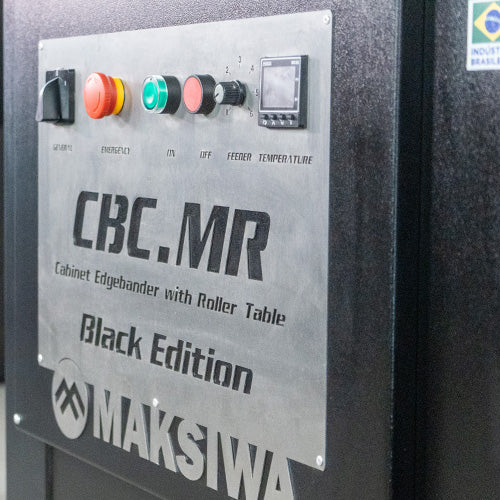

Cabinet Edgebander CBC.MR has a built-in retractable extension table providing a work area 3x times longer whenever opened, it is perfect for long pieces such as doors and panels and it has 6 speeds allowing the operator to work as fast as he wants. If you are looking for an affordable and efficient edgebander, the CBC.MR Black Edition is the ideal machine for you.

Technical Information CBC.MR
Electrical specs 1 Phase 110 V 1500 W 60Hz
Motor specs 24 V 10 Amp
Manual Feeding Speed 0 - 26ft/min
Max edgebanding Height 3"
Edgebanding Coil Support Diameter 19 1/2"
Tape Thickness 0.4 - 2mm
Edgebanding Material Melamine /PVC/ABS/PP/ VEENER non-fleeced
Glue Pot Capacity 1.5 lbs
Recommended Glue Temperature Range 130° to 180º C
Glue Pot Tape Granulated Hot-Melt
(Extensions) Machine Dimension LxWxH (101 3/4") 48 1/2" x 35 1/2" x 43"
Shipping Dimension 43" x 30" x 50"
Weight 240 Lbs.
Warranty 2 years
Technical Info CBC Flex CBC.E CBC.MR CBC/2.MR CBC.T CBC.TPM CBC.PCR
Eletrical specs 1 Phase 110V 550W 60Hz 1 Phase 110V 1500W 60Hz 1 Phase 110V 1500W 60Hz 1 Phase 110V 1500W 60Hz 1 Phase 220V 60Hz 30A 1 Phase 220V 60Hz 30A 1 Phase 220V 60Hz 30A
Feeder Speed 0-19 ft/min 0-18 ft/min 0-26 ft/min 0-26 ft/min 0-16ft/min 21ft/min 18ft/min
Edgebanding Thickness 0.4 – 1mm 0.4 – 2mm 0.4 – 2mm 0.3 – 2mm 0.4 – 3mm 0.4 – 2mm 0.4 – 3mm
Glue Temperature 130° to 180° C 130° to 180° C 130° to 180° C 130° to 180° C 180° to 210° C 180° to 210° C 180° to 210° C
Glue Pot Type Low Temp. Granulated Hot-Melt EVA Low Temp. Granulated Hot-Melt EVA Low Temp. Granulated Hot-Melt EVA Low Temp. Granulated Hot-Melt EVA High Temp. Granulated Hot-Melt EVA Granulated Hot-Melt EVA Granulated Hot-Melt EVA / PUR
Workarea - 39 3/8" x 15 3/4" 101 3/4" x 15 3/4" 101 3/4" x 15 3/4" 78 3/4" x 10 2/5" 93 1/2" x 41" 119"x40"
Max Edgebanding Height 1/2" to 1 7/8" 3" 3" 3" 2" 1" 2"
Panel Thickness 1/2" to 1 7/8" 3" 3" 3" 12-45mm 10-40mm 8-50mm
Weight 21 Lbs 114 Lbs 242.5 Lbs 330 lbs 1025 Lbs 1146 Lbs 1653 Lbs
Machine Dimension 11" x 14" x 13 1/2" 47" x 31" x 42" 101 3/4" x 35 1/2 x 43" (101 3/4") 58" x 43" x 43" 112" x 63" x 51" 93. 1/2" x 41" x 53" 119" x 41" x 49"
End Trim - Manual Manual Manual Pneumatic Pneumatic Pneumatic
