Key Features
How The Darex XPS-16+ CNC Compares To Other Darex Sharpeners
Precision tool shops evaluating Darex sharpeners usually face this question: should I get the Hybrid Auto XT-3000 for flexible material handling, this fully automatic 4-axis CNC XPS-16+, or stay with a manual model for lower-volume work?
| Feature | Darex XT-3000 Manual | Darex Hybrid XT-3000 Auto | Darex XPS-16+ CNC |
|---|---|---|---|
| Operation | Manual | Automatic, single-axis | Fully automatic, 4-axis CNC |
| Materials Handled | HSS, Cobalt, diamond option for carbide | HSS, Cobalt, Carbide on one wheel | Solid Carbide, HSS, Cobalt |
| Cutting Diameter | 1/8 to 13/16 in, 3-21mm | 1/8 to 13/16 in, 3-21mm | 2.5-16mm |
| Point Styles | Standard conic and split point | Standard conic and split point | Standard conic, 4-facet, standard and radius split point |
Product Description

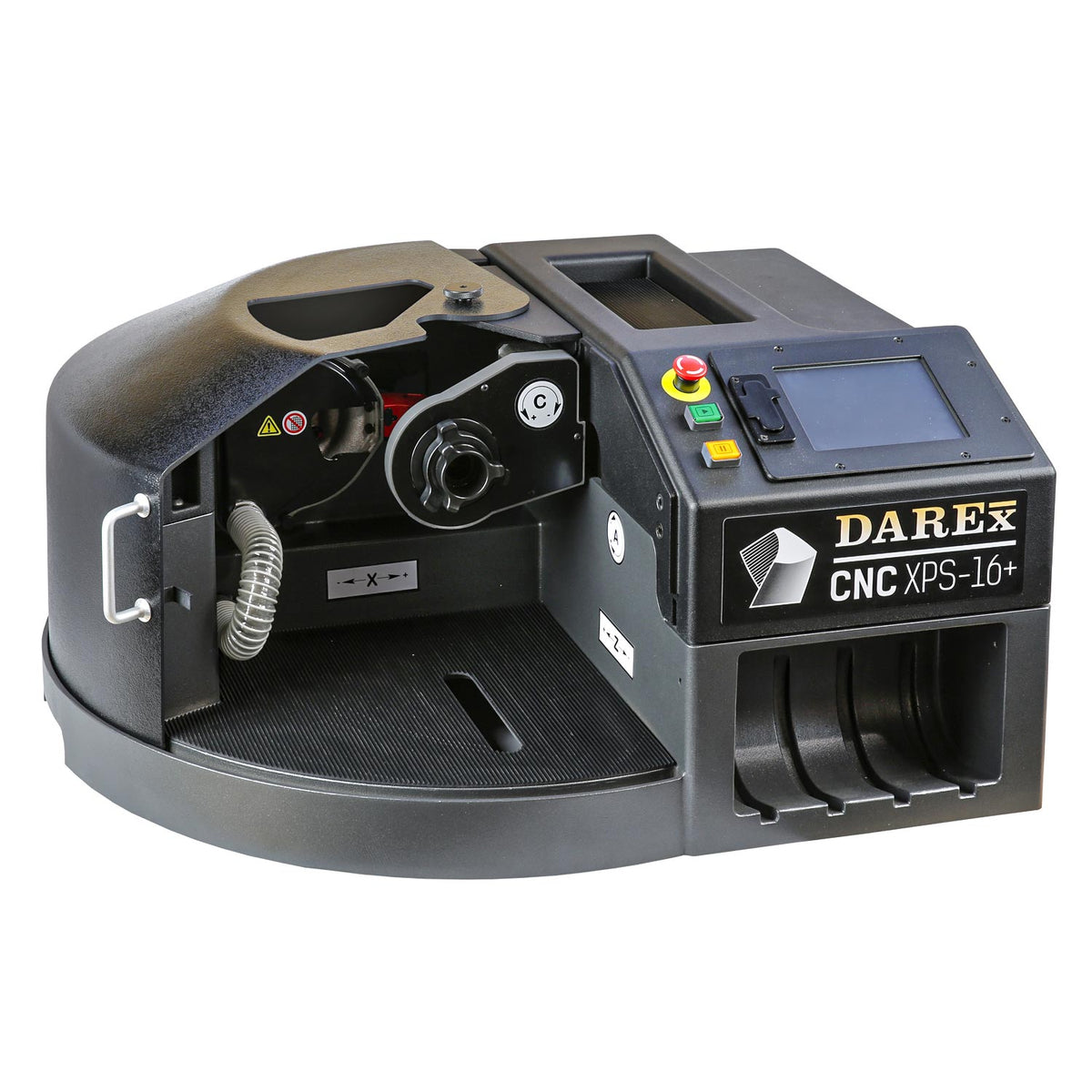

The XPS-16+ Automatic 4-axis CNC Drill Sharpener and Grinder is an extremely accurate work horse for high tech applications. The XPS-16+ is for shops that demand the ultimate in precision, simplicity and productivity. The XPS-16+ can do it all – with the touch of a button. Assembled in the USA from US and imported parts.
XPS-16+ CNC Drill sharpener is Ideal For: Shops that demand the precision and productivity of a fully automatic 4-axis CNC sharpener to sharpen Solid Carbide, HSS and Cobalt
Duty Rating: Heavy duty, high capacity
Grit Removal System Included: Vacuum
Cutting Tool Diameter: 2.5–16 mm
Work Holding: 6 pc Chuck Jaw system or 16 pc ER-25 collet system
Operation Mode: Automatic
Machine Weight: 52 kg Vacuum 13 kg
Point Angles Sharpened: 90°–150°
Machine Size: 66 x 56 x 30.5 cm
Point Styles Sharpened: Standard conic, 4-facet, standard and radius split point
Sharpening Wheel Included: 180 grit Borazon (CBN) for HSS & cobalt; 220 grit Diamond for carbide
Options Available:
- 260 grit and 320-400 grit diamond wheels
- Machine cover
- Stand
- In-house training Remove Reference to training
Warranty
A 1-Year Warranty covers defects due to workmanship and design, excluding abrasives. Warranty valid in USA and Canada only.
Additional information
| Weight | 130.1 lbs |
|---|
Full Spec Sheet
| Model | XPS-16+ |
| Cutting Diameter | 2.5-16mm |
| Point Angles | 90-150 degrees |
| Point Styles | Standard conic, 4-facet, standard and radius split point |
| Work Holding | 6pc chuck jaw or 16pc ER-25 collet system |
| Grit Removal | Vacuum included |
| Machine Weight | 52kg, plus 13kg vacuum |
| Warranty | 1 Year |
