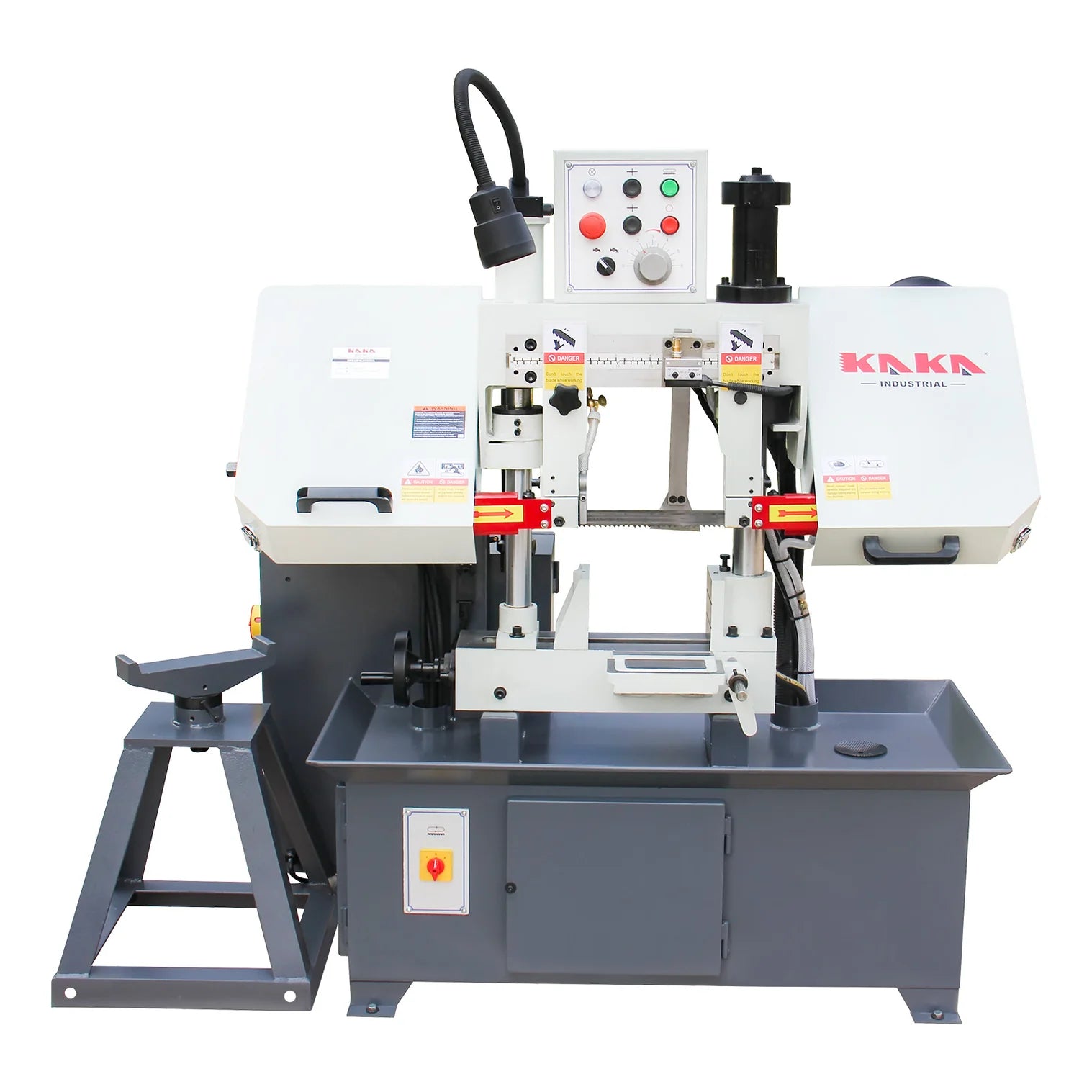

KaKa Industrial Metal Horizontal Band Saw, Double column horizontal band saw,7.87”x7.87” cutting capacity ,vertical lifting ,Metal Bandsaw with working light, high & low blade speed, Runs on 230v-60HZ-3PH TGK-08 271201V230

SKU 271201V230
$4,465.00
$4,199.00
KaKa Industrial Metal Horizontal Band Saw, Double column horizontal band saw,7.87”x7.87” cutting capacity ,vertical lifting ,Metal Bandsaw with working light, high & low blade speed, Runs on 230v-60HZ-3PH TGK-08 271201V230

Powerful Cutting Capacity

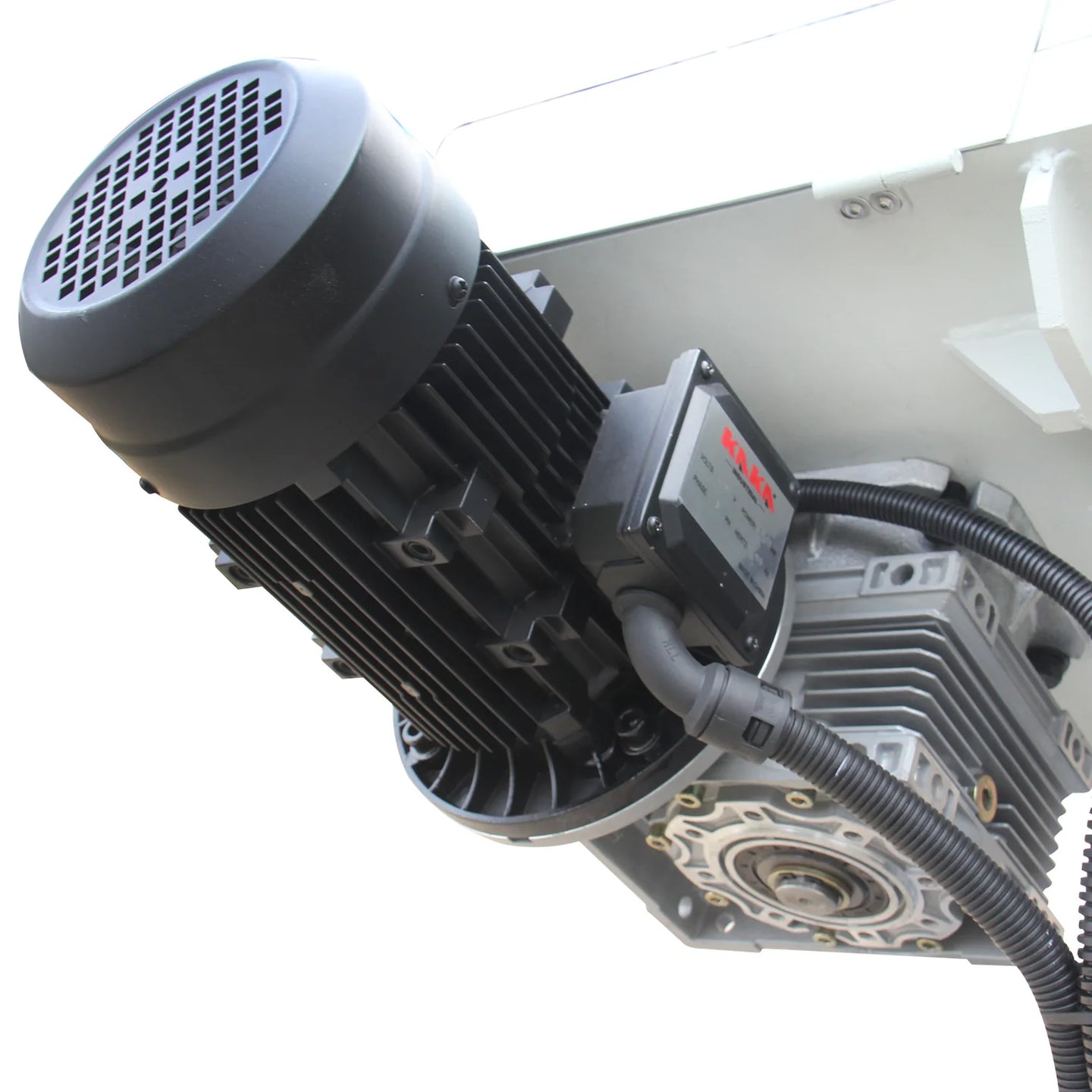

Runs on 230V power. Industrial-grade double-column bandsaw. 1.3/1.8 kW double speed motor to get two saw blade speeds: 91.8, 147.6 ft/min. Gear drive. The powerful motor provides the torque to drive the bandsaw blade through metal workpieces efficiently and accurately. This bandsaw can cut various materials, including metals, plastics, composites, wood, rubber, foam, ceramics, glass, and more.

Flexibility and Versatility

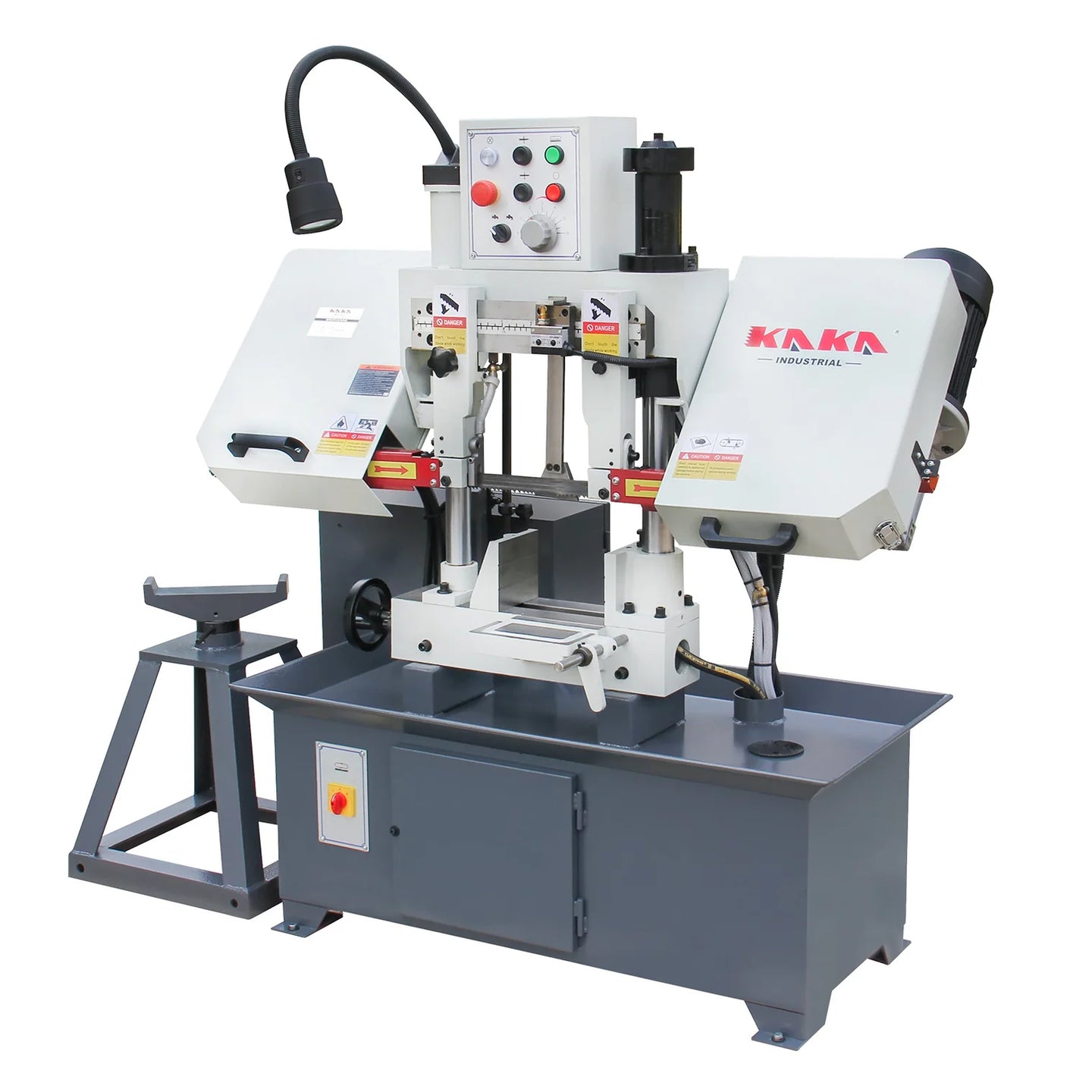

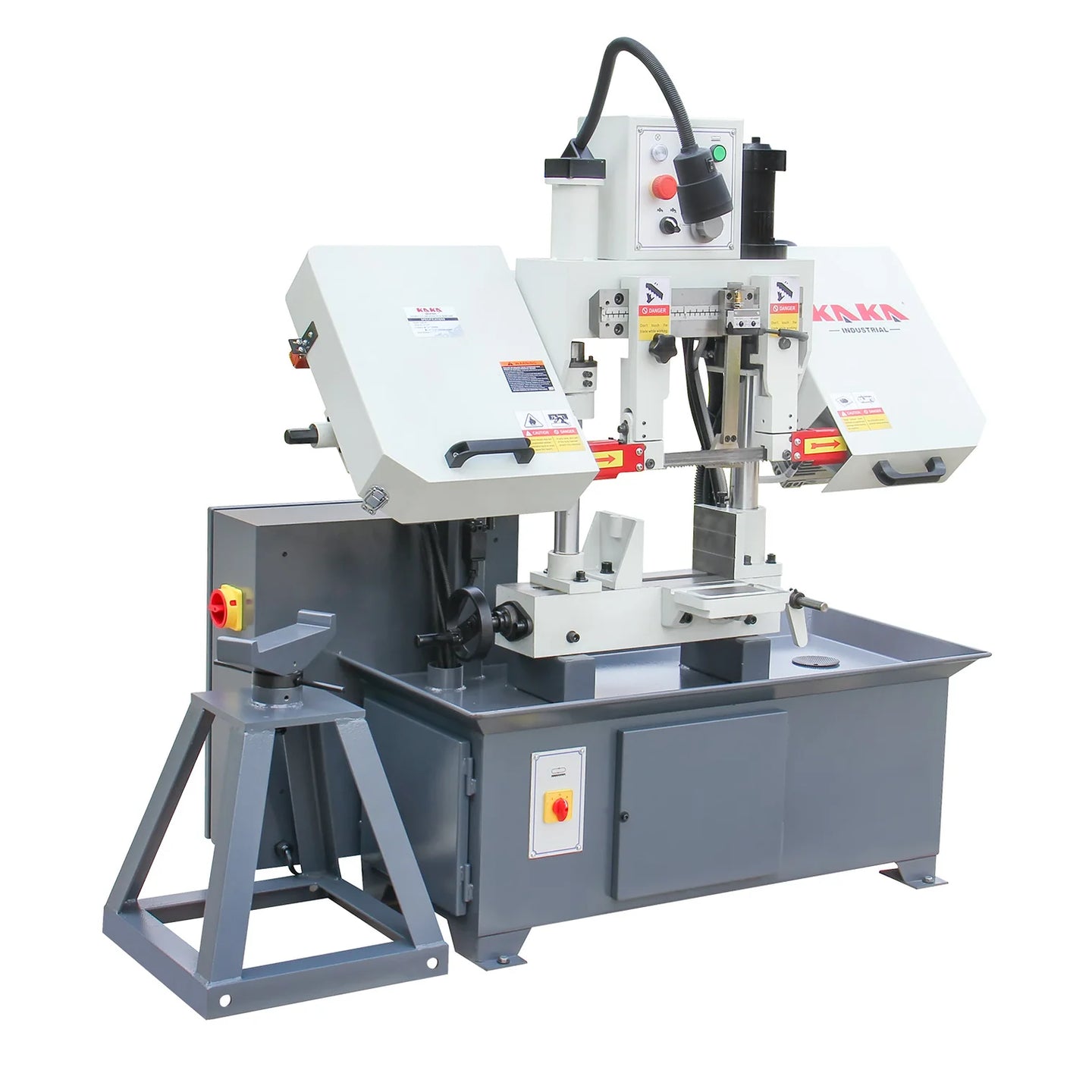

This metal-cutting bandsaw has all the features needed for professional metal-cutting results, allowing users to perform a variety of cuts. It has a double-column structure, vertical lifting, and high stability.

With its 2-step blade speed options, you can easily adjust the cutting speed to match the material you're working with, guaranteeing optimal performance and clean cuts.
Hydraulic cylinders provide precise control over lowering the cutting blade, offering smooth and consistent operation and resulting in clean and uniform cuts. Plus, the built-in cooling system ensures that the blade and workpiece stay cool during operation, prolonging their lifespan.

With the integrated work lights, you will never miss a detail again. They illuminate your workspace and create a brighter cutting environment for optimal visibility.

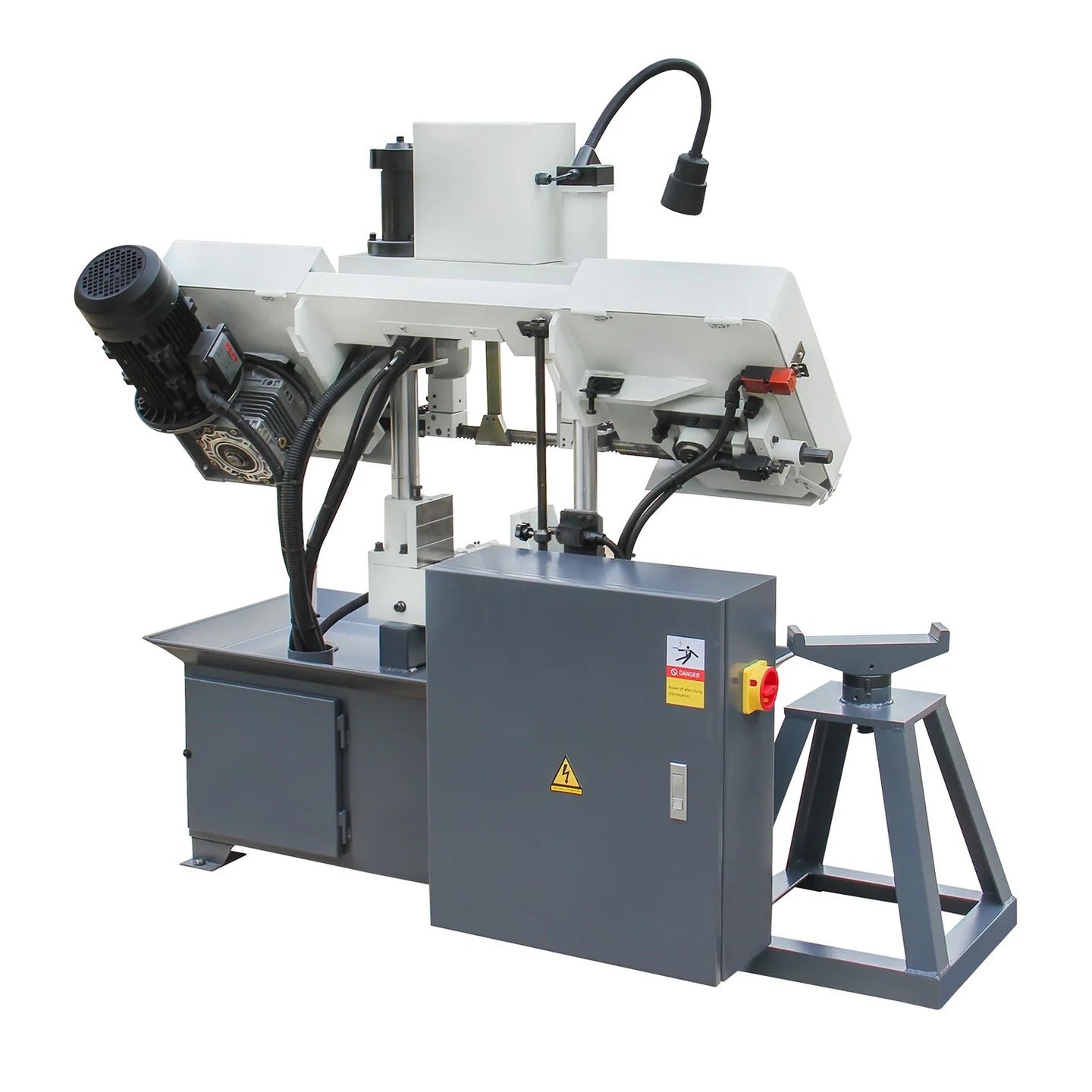

It is equipped with a convenient material support, which allows you to place excessively long cutting materials on the support frame effortlessly.

Safety

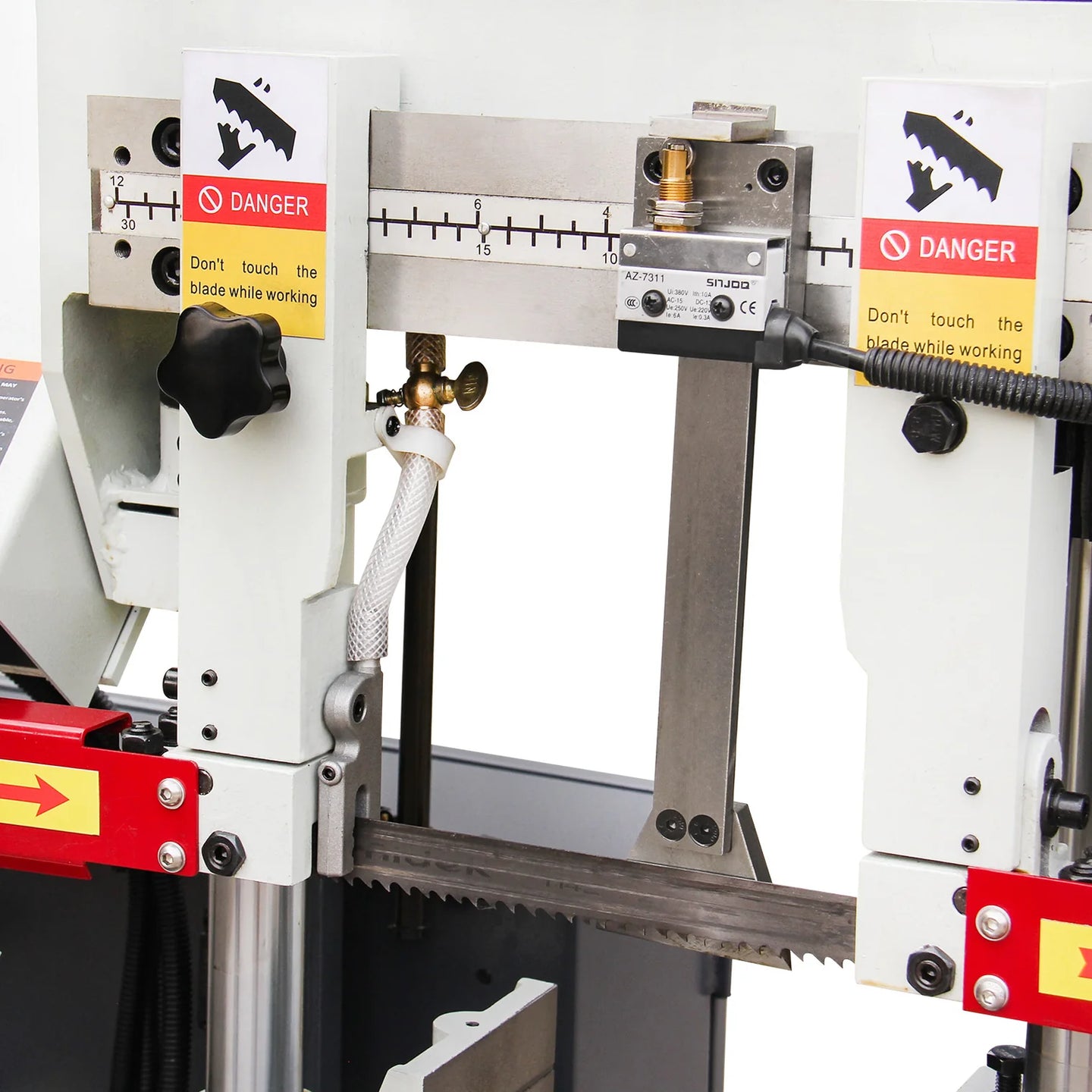

Hydraulic systems enhance safety by providing operators with reliable and responsive control over the cutting process. The band saw features a coolant system and an automatic shut-off setting. It also has a heat-treated high-carbon steel blade, brass fittings, and a full belt and blade guards complement.

Wide Applications
The metal-cutting bandsaw is a versatile tool used in various industries and tasks, including metalworking industries, fabrication shops, maintenance facilities, educational settings, and hobbyist workshops.

1. With a cutting capacity of 7.87x7.87 inches at 90°, tackle even the most challenging tasks effortlessly.

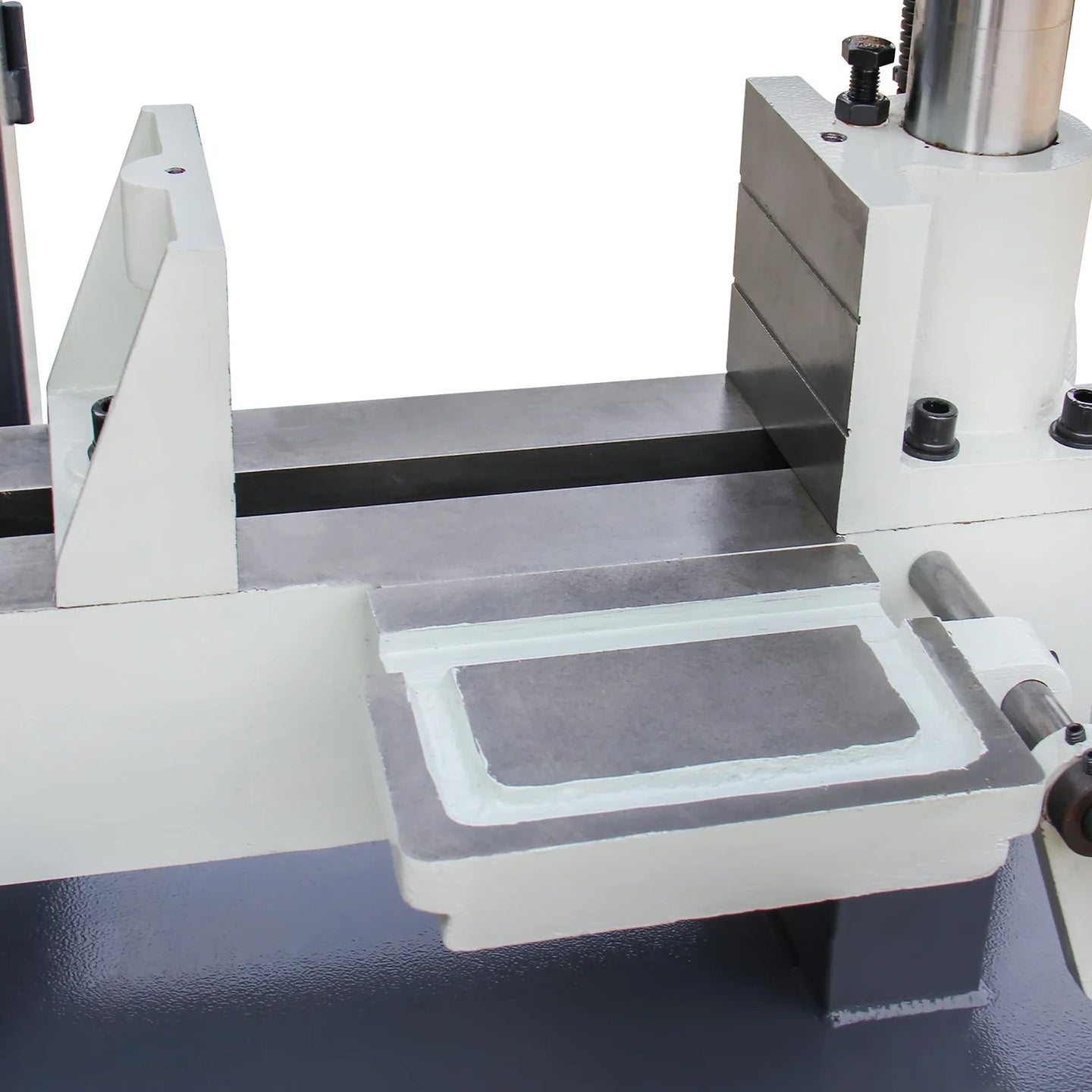

2. Equipped with a reliable gear drive and manual clamping vice, this saw ensures secure and accurate cuts every time.

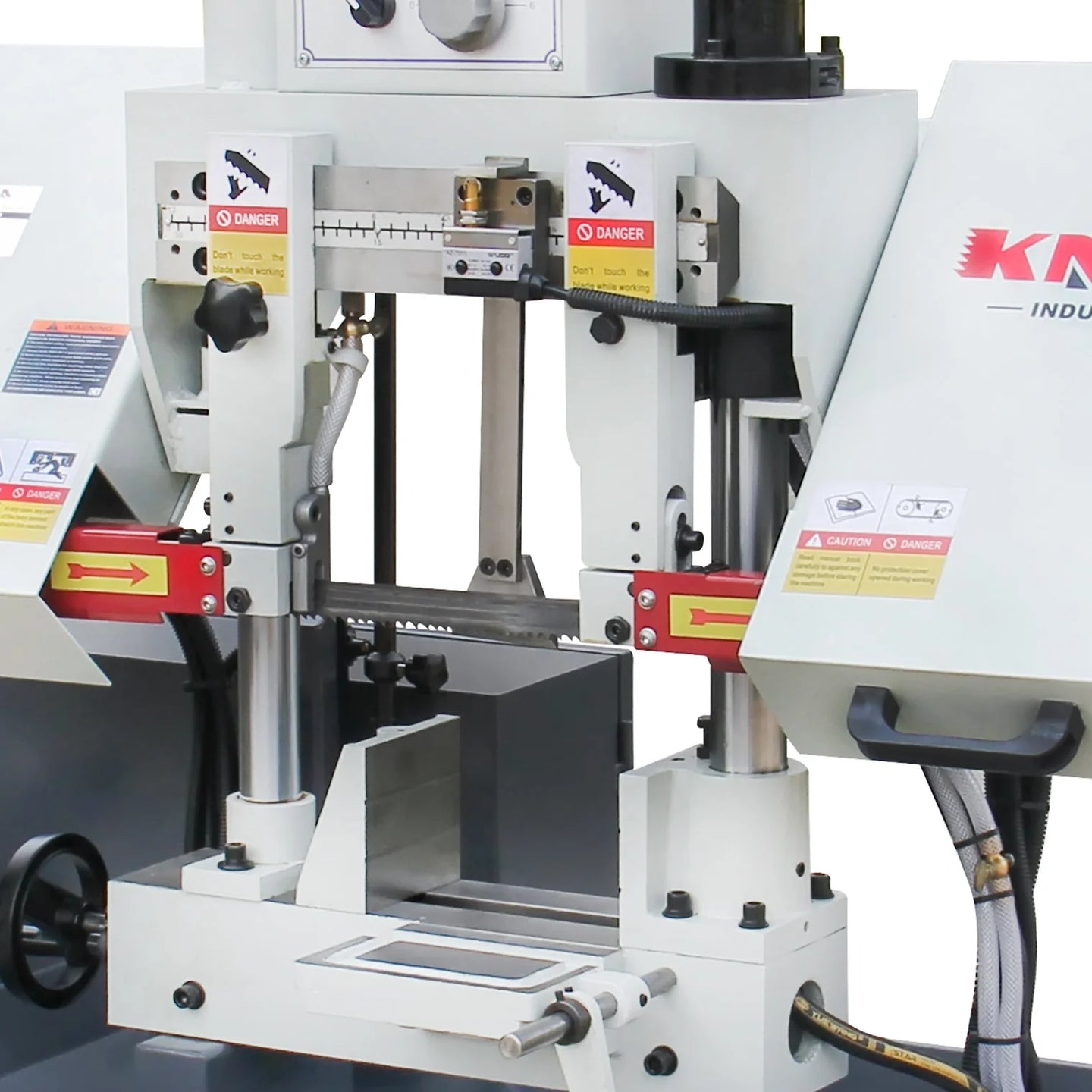

3. The double column structure with vertical lifting provides exceptional stability for enhanced safety during operation. Plus, the hydraulic descent control guarantees smooth and controlled cutting motions.
4. The gear system offers two cutting speeds, allowing you to adapt to different materials with ease. From delicate metals to heavy-duty alloys, this band saw empowers you with optimal control over the cutting process.
5. Equipped with a convenient material support, it allows you to effortlessly place excessively long cutting materials on the support frame.
6.Never miss a detail again with the integrated work lights that illuminate your workspace, creating a brighter cutting environment for optimal visibility.
7. Say goodbye to overheating and blade damage! Our cooling system effectively extends the service life of the saw blade while enhancing the precision of your workpiece.

Item No.
271201
Model
TGK-08
Max. cutting capacity
φ7.87"-7.87"x7.87"
Cutting speed @60Hz
91.8, 147.6 ft./min
Feed speed
Hydraulic varable speed
Blade size
1"x0.035"x104-1/4"
Workpiece clamping
Manual
Blade tensioning
Manual Mechanical
Main motor power
1.3/1.8 kW
Oil pump motor power
0.55kW
Coolant pump motor power
0.04kW
Drive
Gear

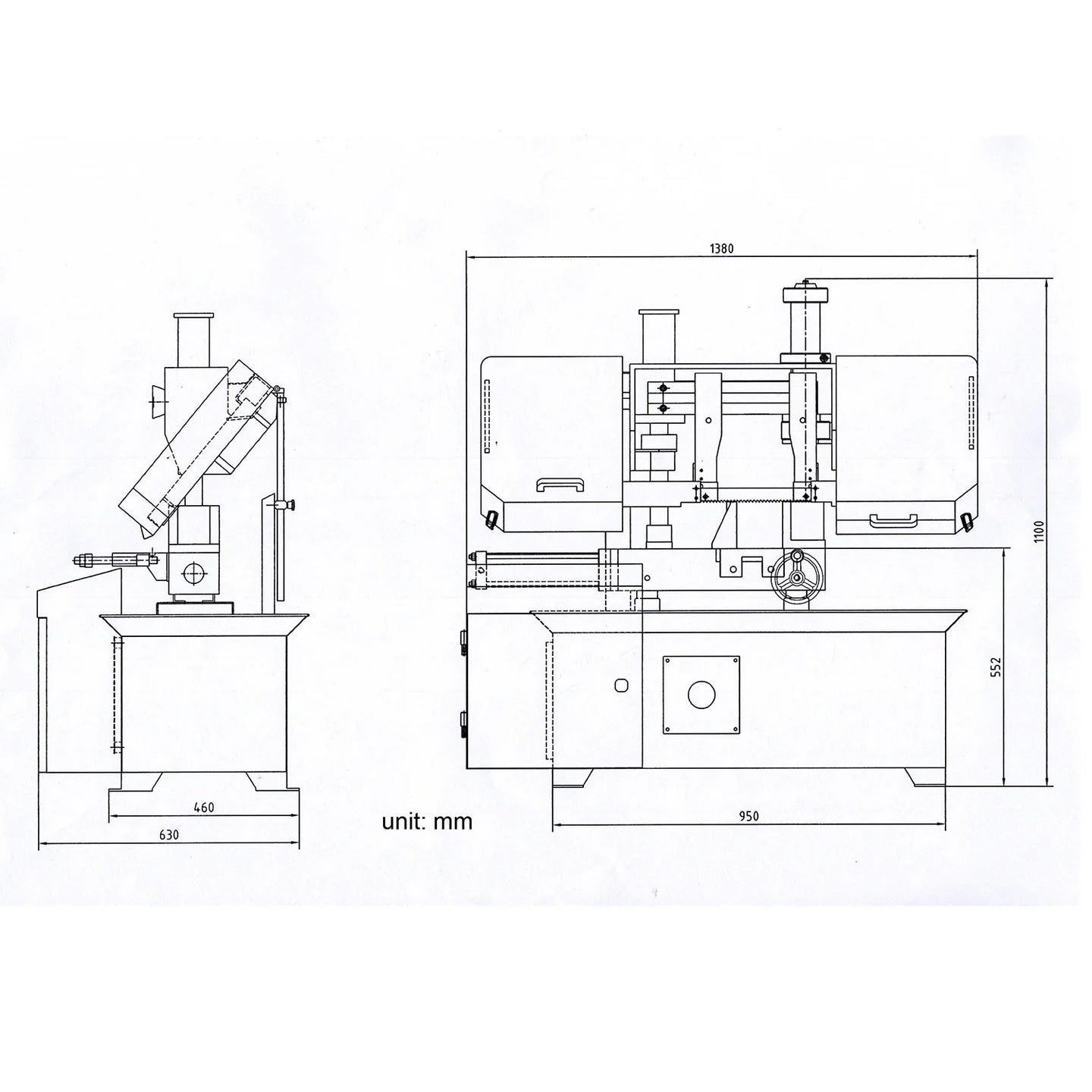

Packing size
65"x36"x52"
N.W./G.W.
794/1014 lbs

Documents

TGK-08 Manual
