KaKa Industrial Kaka Industrial TGK-16 Double column horizontal band saw, Max cutting capacity 15.7 inch, vertical lifting, high stability. Cutting speed adopts hydraulic control, 230V 60HZ 3PH 188303V230

SKU 188303V230
$12,999.99
$11,652.00
$12,999.99
$11,652.00

Estimated Shipping Time

You can typically expect your product to arrive within 4-7 Business Days, depending on your location and product availability

What Is Your Return Policy?

Effective for all purchases on www.summitforgesupply.com

1. Contact Information

2. Return Eligibility


  • Returns accepted within 14 days of receiving your order.

  • Items must be unused, undamaged, and in original packaging with proof of purchase.

3. Return Process


  1. Contact us within 7 days of delivery to request a return (support@summitforgesupply.com or 419-967-3418).

  2. Receive a Return Authorization (RMA) and prepaid shipping label.

  3. Ship the item within 7 days using a trackable method.

Return shipping is free and covered by Summit Forge Supply.

4. Refunds


  • Refunds are issued after inspection of returned items.

  • Processed to the original payment method within 14 days of approval.

  • 25% restocking fee applies for “change of mind” returns.

  • Full refunds or replacements provided for defective, damaged, or incorrect items.

5. Non-Returnable Items


  • Custom/personalized products

  • Perishable goods

  • Intimate/sanitary items (unless unopened)

  • Gift cards and downloadable software

6. Exchanges


  • Accepted for defective, damaged, or incorrect items.

  • No shipping cost for exchanges.

7. Order Cancellations


  • Before shipment: Full refund.

  • After shipment: Follow the standard return process.

8. Legal & Support

This policy does not affect your statutory consumer rights.

For help, visit our FAQ page or contact us directly:

📧 support@summitforgesupply.com | 📞 419-967-3418

KaKa Industrial

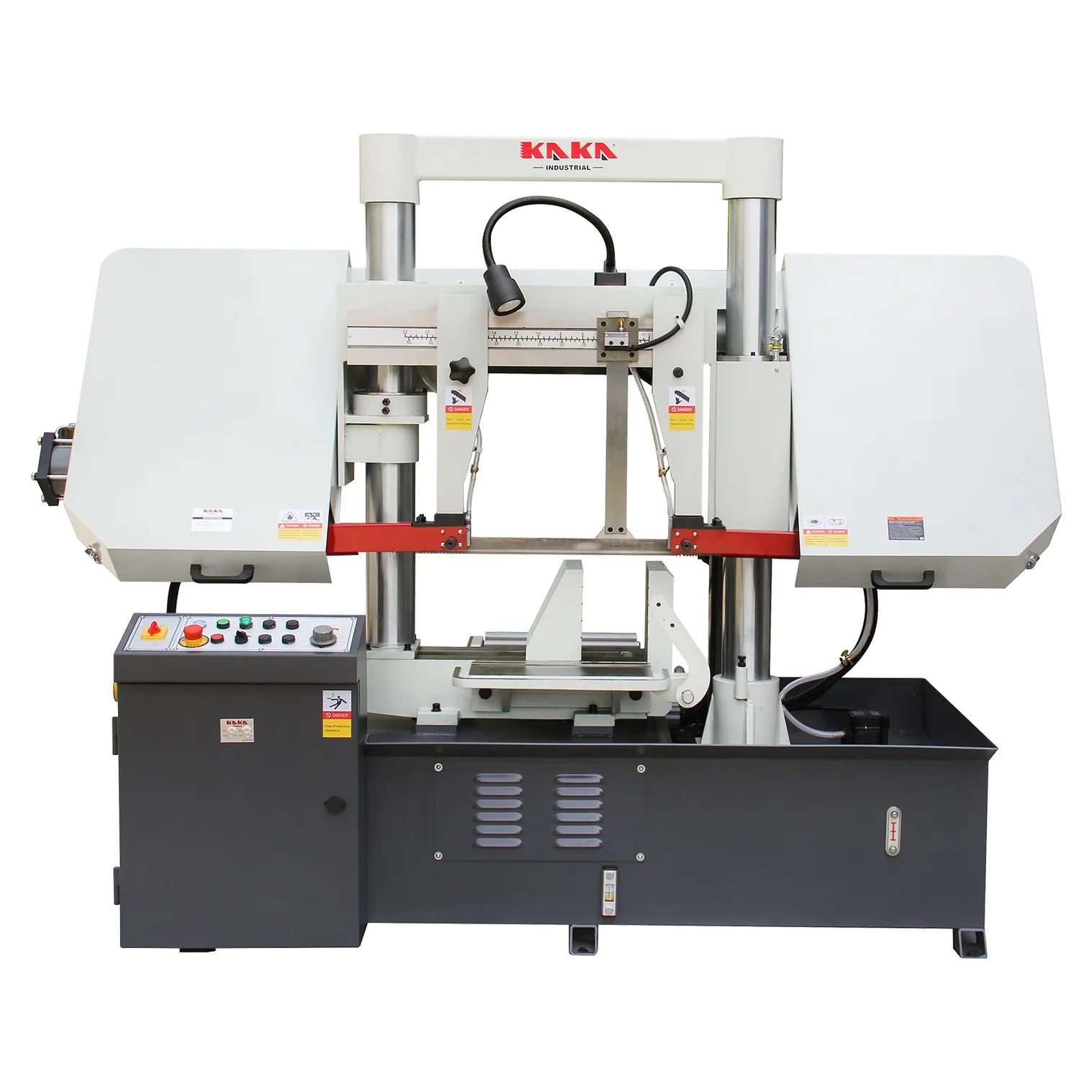

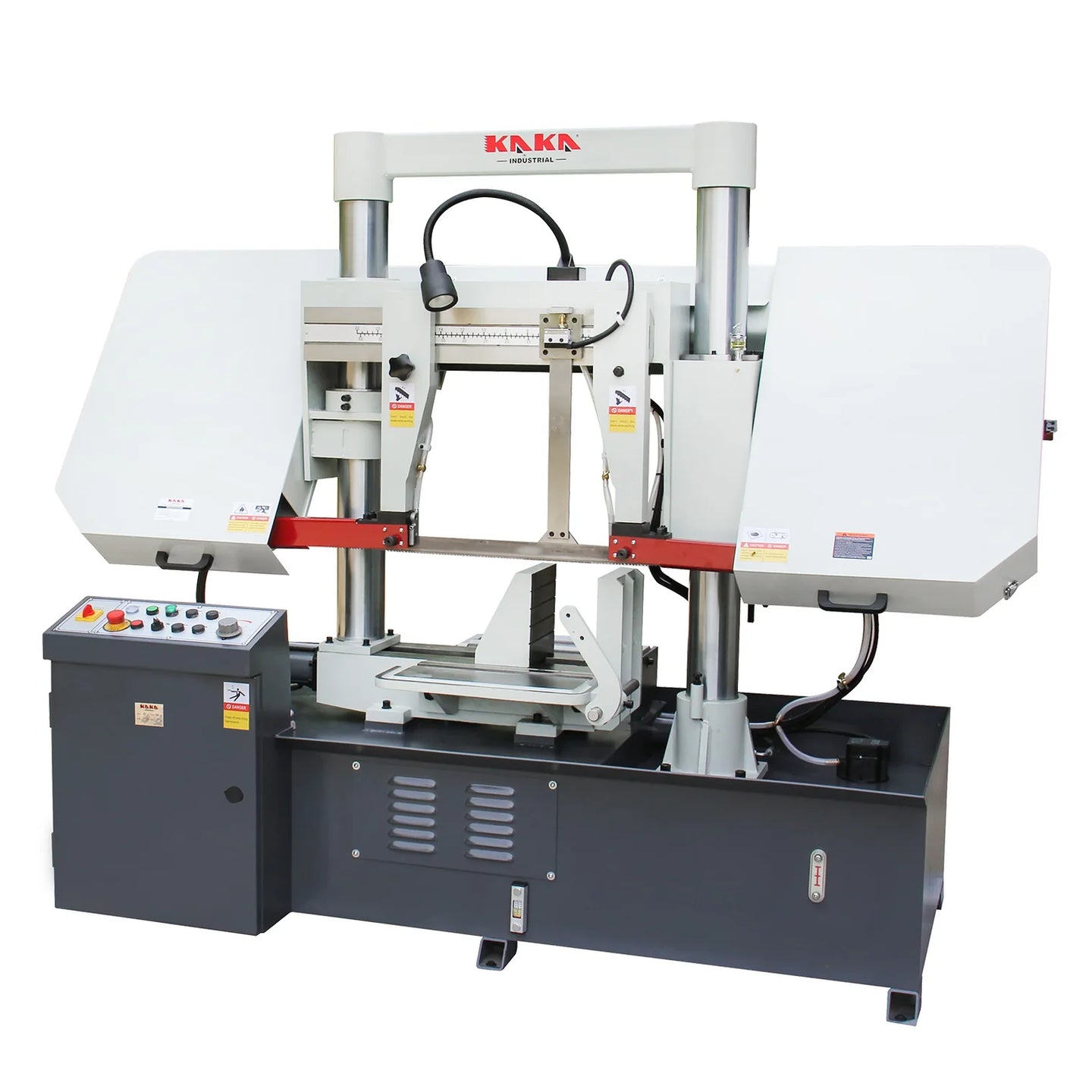

KaKa Industrial Kaka Industrial TGK-16 Double column horizontal band saw, Max cutting capacity 15.7 inch, vertical lifting, high stability. Cutting speed adopts hydraulic control, 230V 60HZ 3PH 188303V230

SKU 188303V230
$12,999.99
$11,652.00

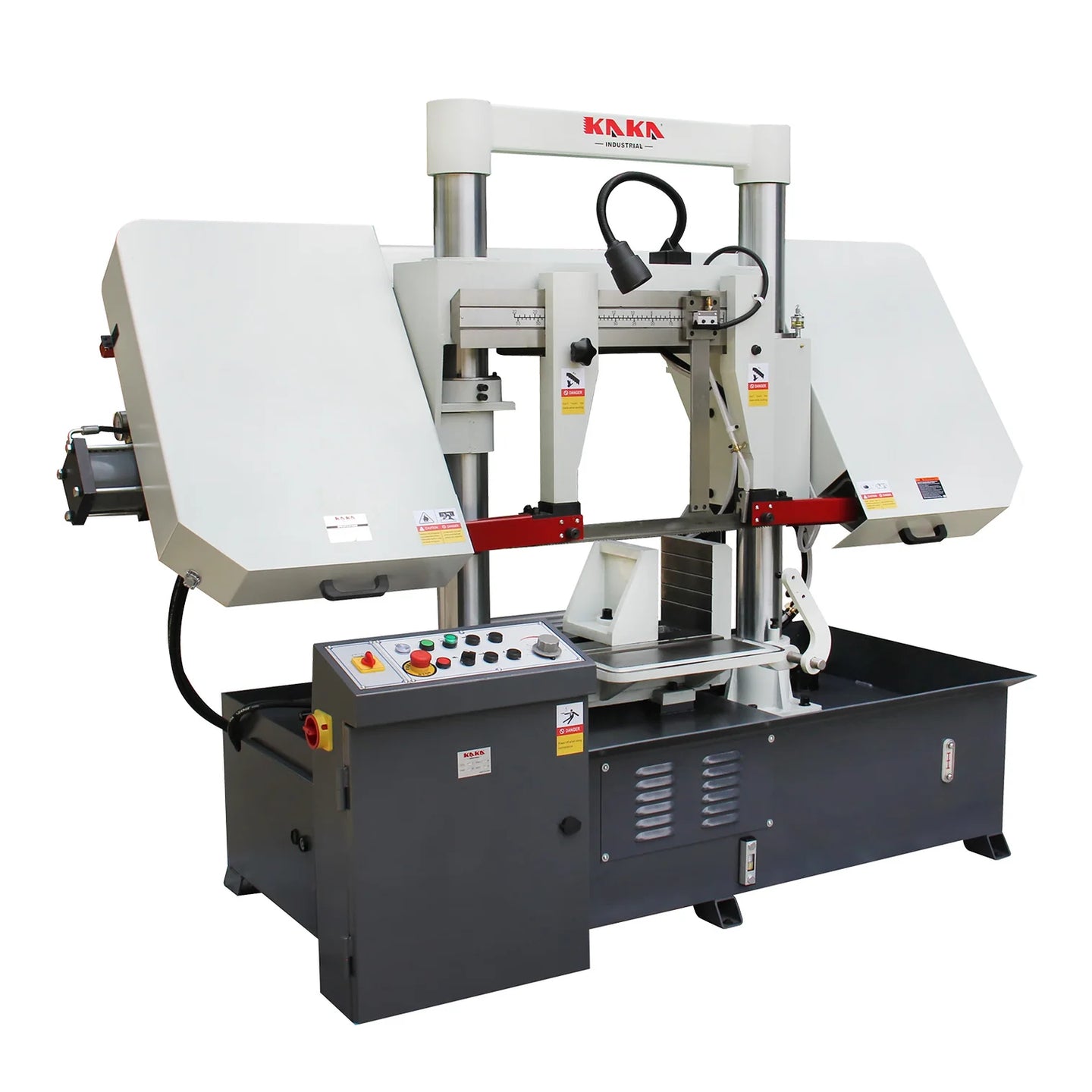

KaKa Industrial Kaka Industrial TGK-16 Double column horizontal band saw, Max cutting capacity 15.7 inch, vertical lifting, high stability. Cutting speed adopts hydraulic control, 230V 60HZ 3PH 188303V230

Kaka Industrial TGK-16 Double column horizontal band saw, Max cutting capacity 15.7 inch, vertical lifting, high stability. Cutting speed adopts hydraulic control, 230V 60HZ 3PH is backordered and will ship as soon as it is back in stock.

Powerful Cutting Capacity

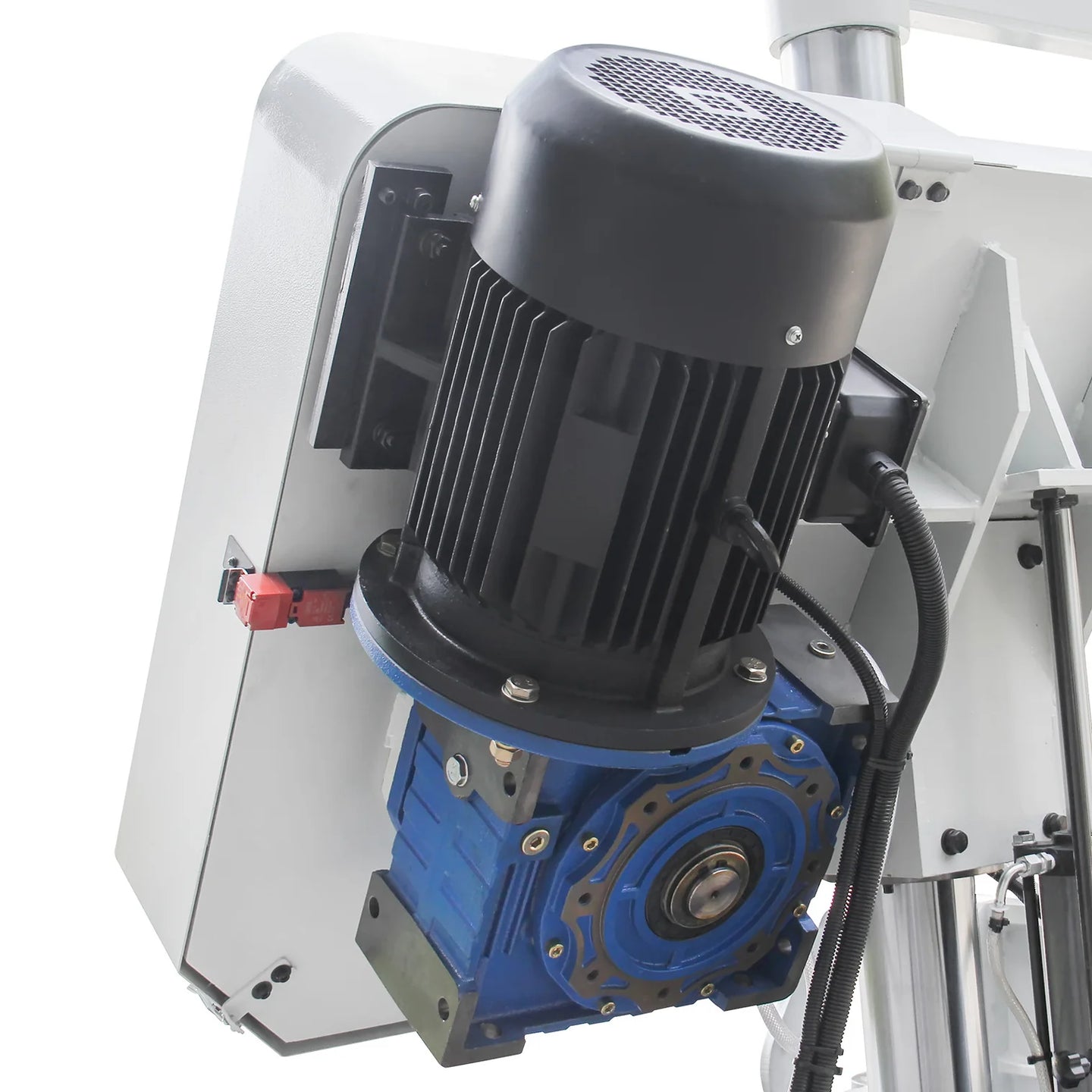

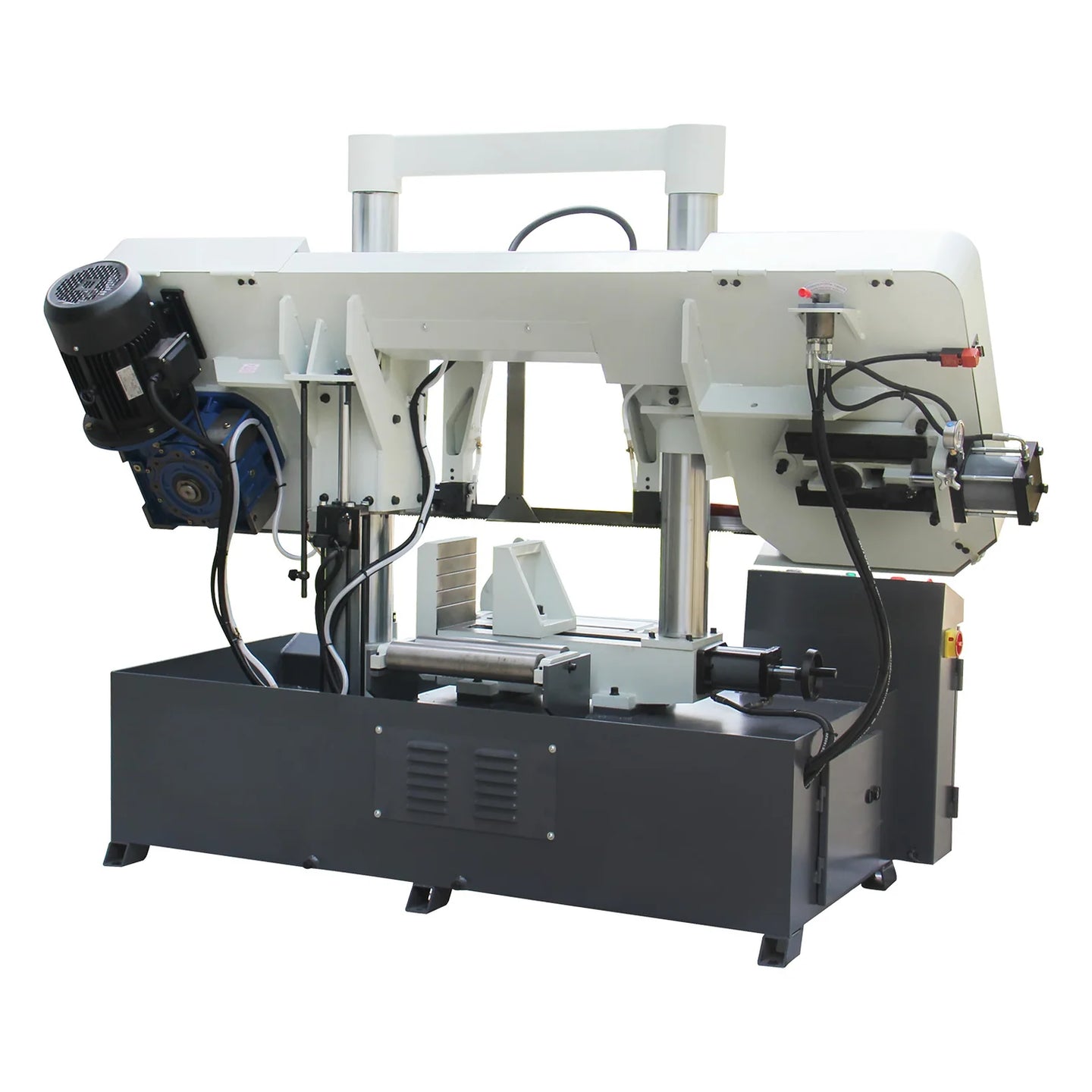

It runs on 230V power and is an industrial-grade double-column bandsaw. It uses a 3.0/4.0kW double-speed motor to achieve two saw blade speeds of 141 and 220 ft/min. Gear drive: The powerful motor provides the necessary torque to drive the bandsaw blade through metal workpieces with efficiency and accuracy. This bandsaw is capable of cutting a wide range of materials, including metals, plastics, composites, wood, rubber, foam, ceramics, glass, and more.

Flexibility and Versatility
This metal-cutting bandsaw has all the features needed for professional metal-cutting results, allowing users to perform a variety of cuts. It has a double-column structure, vertical lifting, and high stability.

With its 2-step blade speed options, you can easily adjust the cutting speed to match the material you're working with, guaranteeing optimal performance and clean cuts.
Hydraulic cylinders provide precise control over lowering the cutting blade, offering smooth and consistent operation and resulting in clean and uniform cuts.

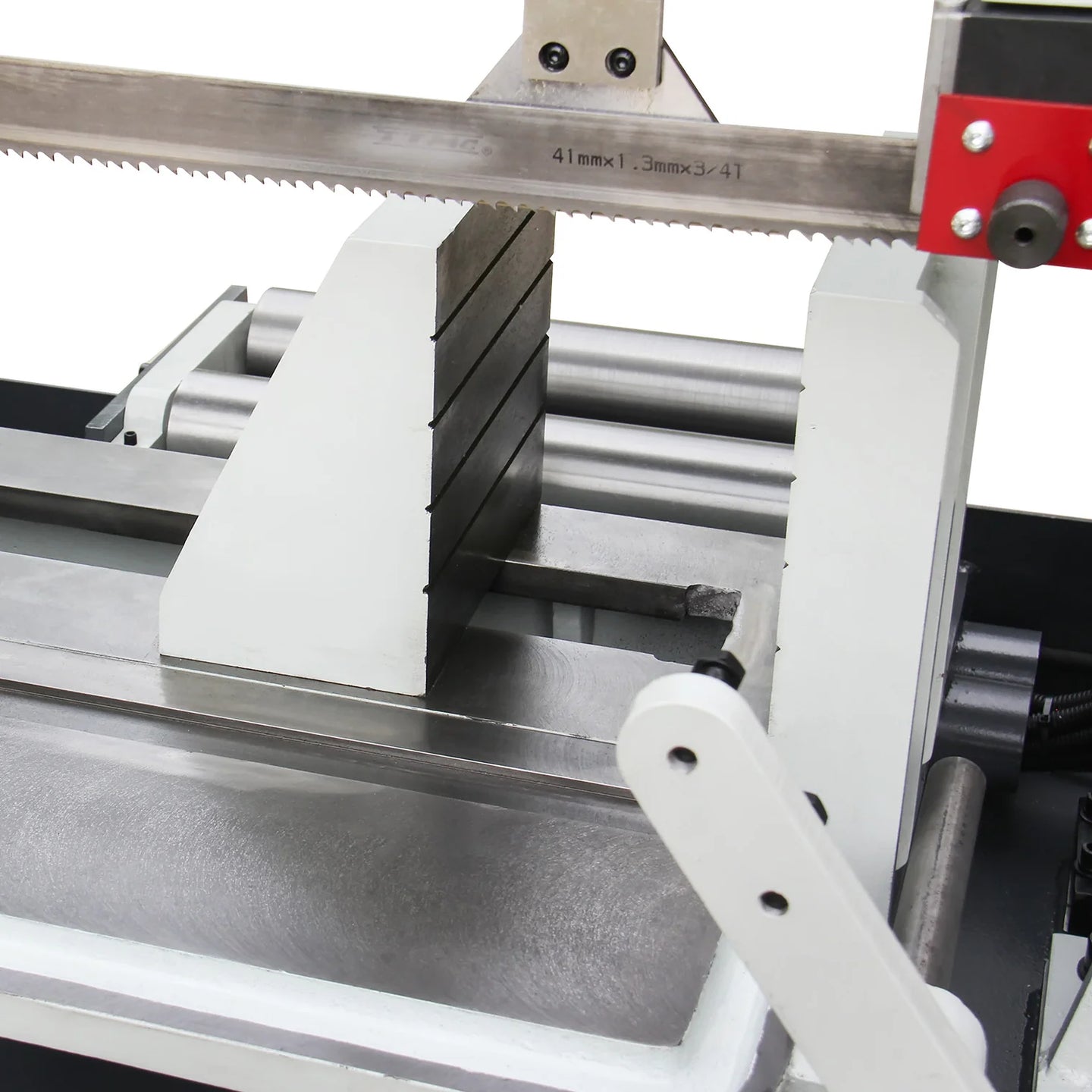

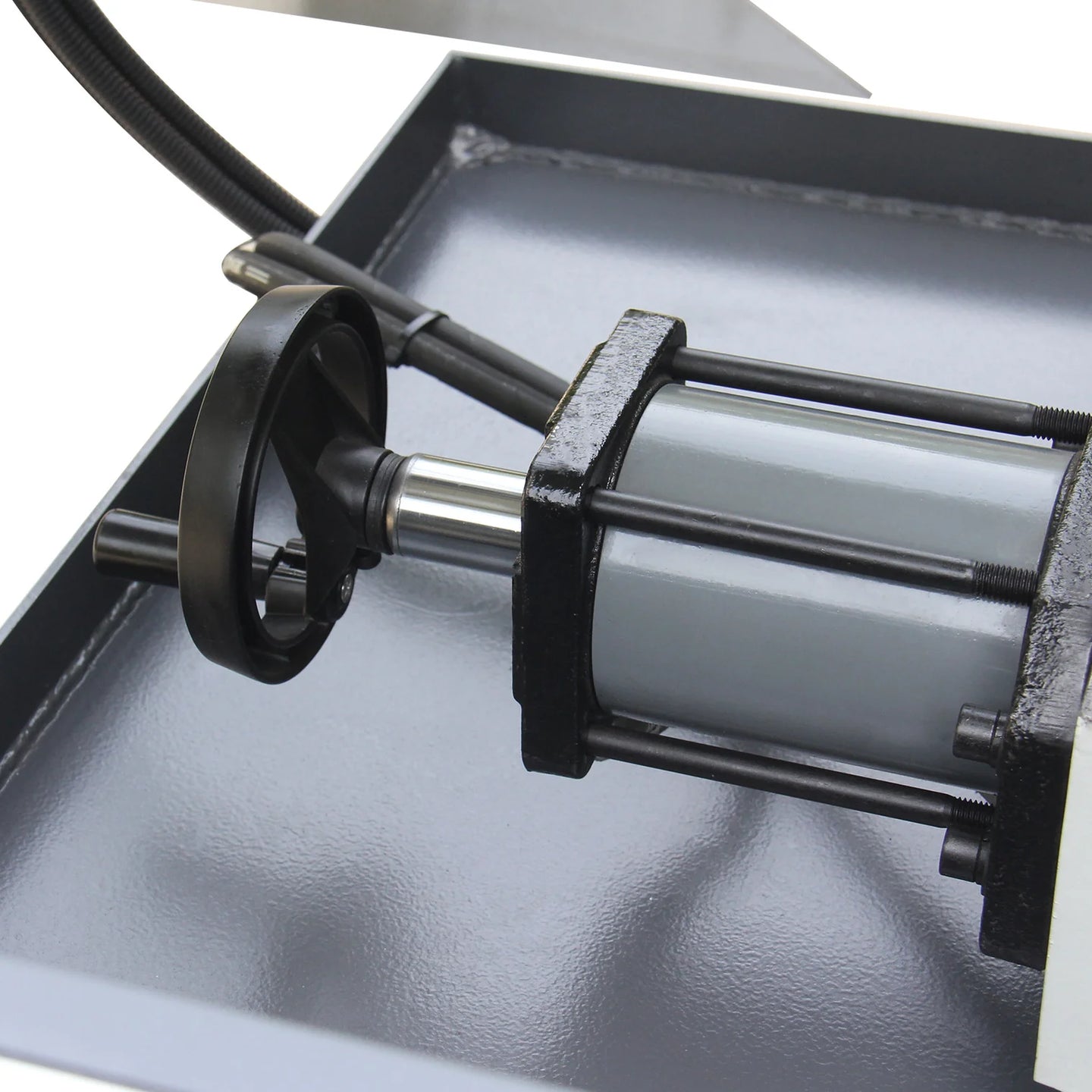

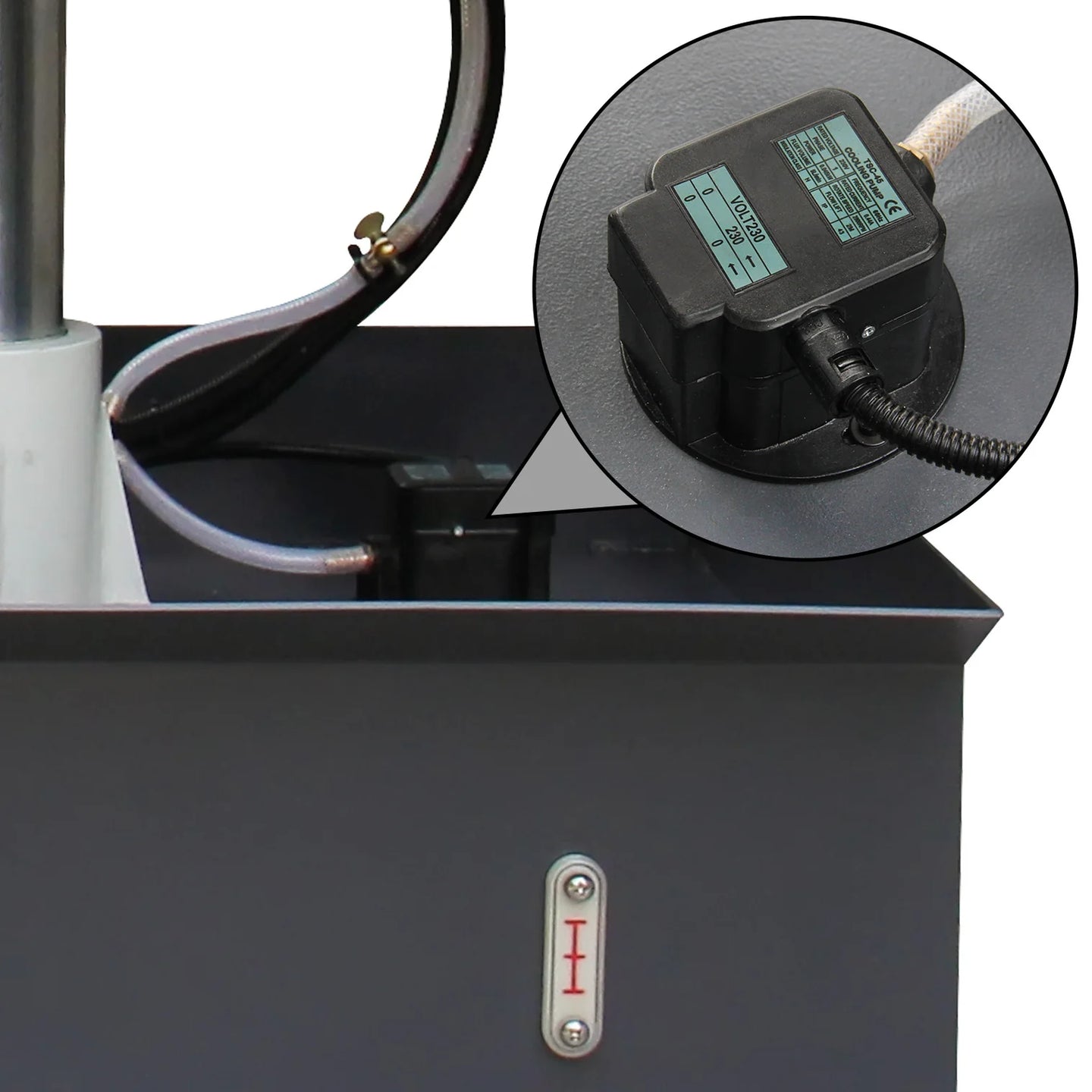

Hydraulic clamping is easy to operate. The built-in cooling system ensures that the blade and workpiece stay cool during operation, prolonging their lifespan.

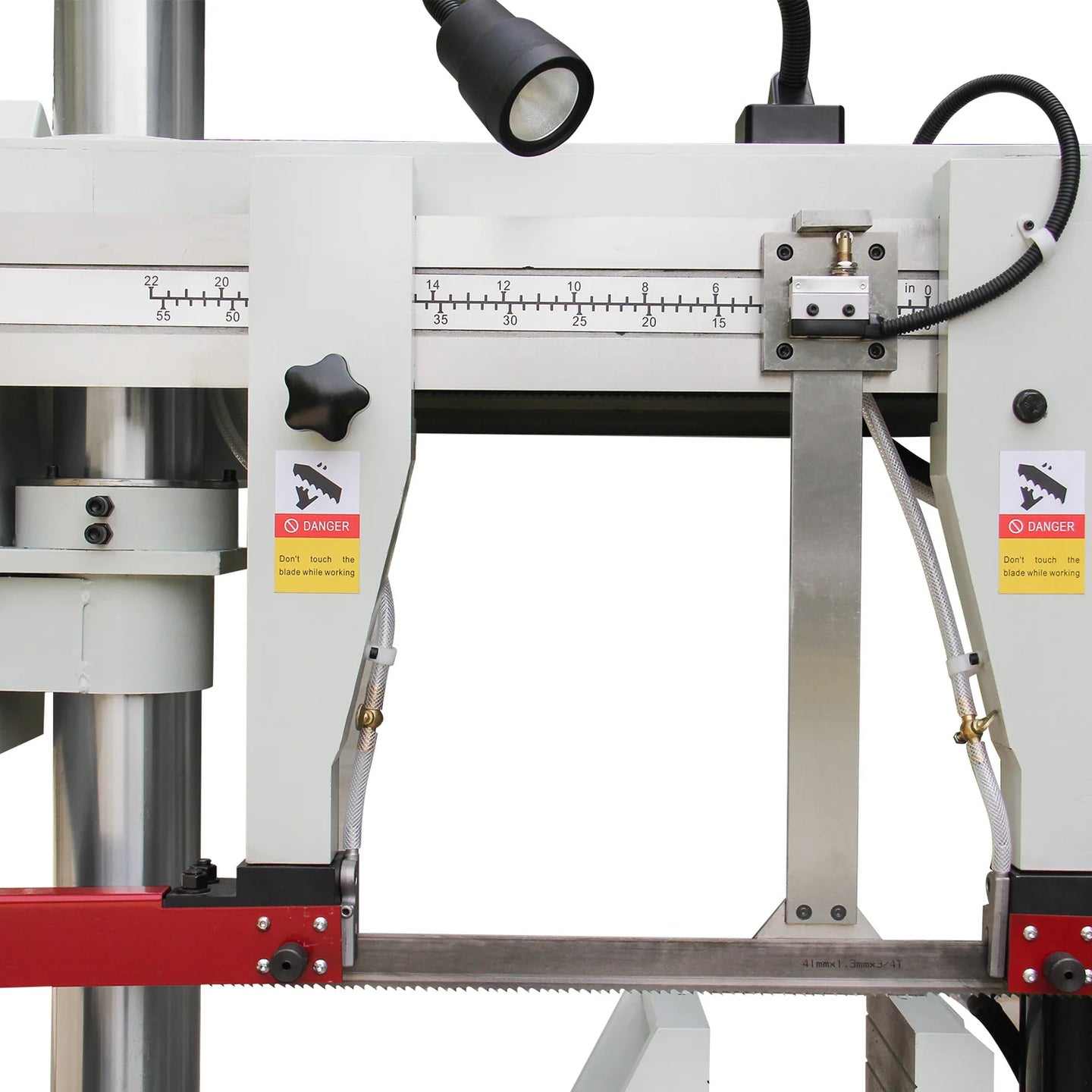

Never miss a detail again with the integrated work lights, which illuminate your workspace and create a brighter cutting environment for optimal visibility.

Safety
Hydraulic systems enhance safety by providing operators with reliable and responsive control over the cutting process. The band saw features a coolant system and an automatic shut-off setting. It also has a heat-treated high-carbon steel blade, brass fittings, and a full complement of belt and blade guards.
Wide Applications
The metal-cutting bandsaw is a versatile tool that can be used in various industries and tasks, including metalworking industries, fabrication shops, maintenance facilities, educational settings, and hobbyist workshops.

1. Double column structure, vertical lifting, high stability.
2. Cutting speed adopts hydraulic control and variable speed.
3. Hydraulic clamping is easy to operate.
4. Optional:hydraulic clamping system with three positions.

Item No.
188303
Model
TGK-16
Max. cutting capacity
φ15.7"-15.7"x15.7"
Cutting speed @60Hz
141,220 ft./min
Feed speed
Hydraulic varable speed
Blade size
1.6"x0.05"x196.8"
Workpiece clamping
Hydraulic

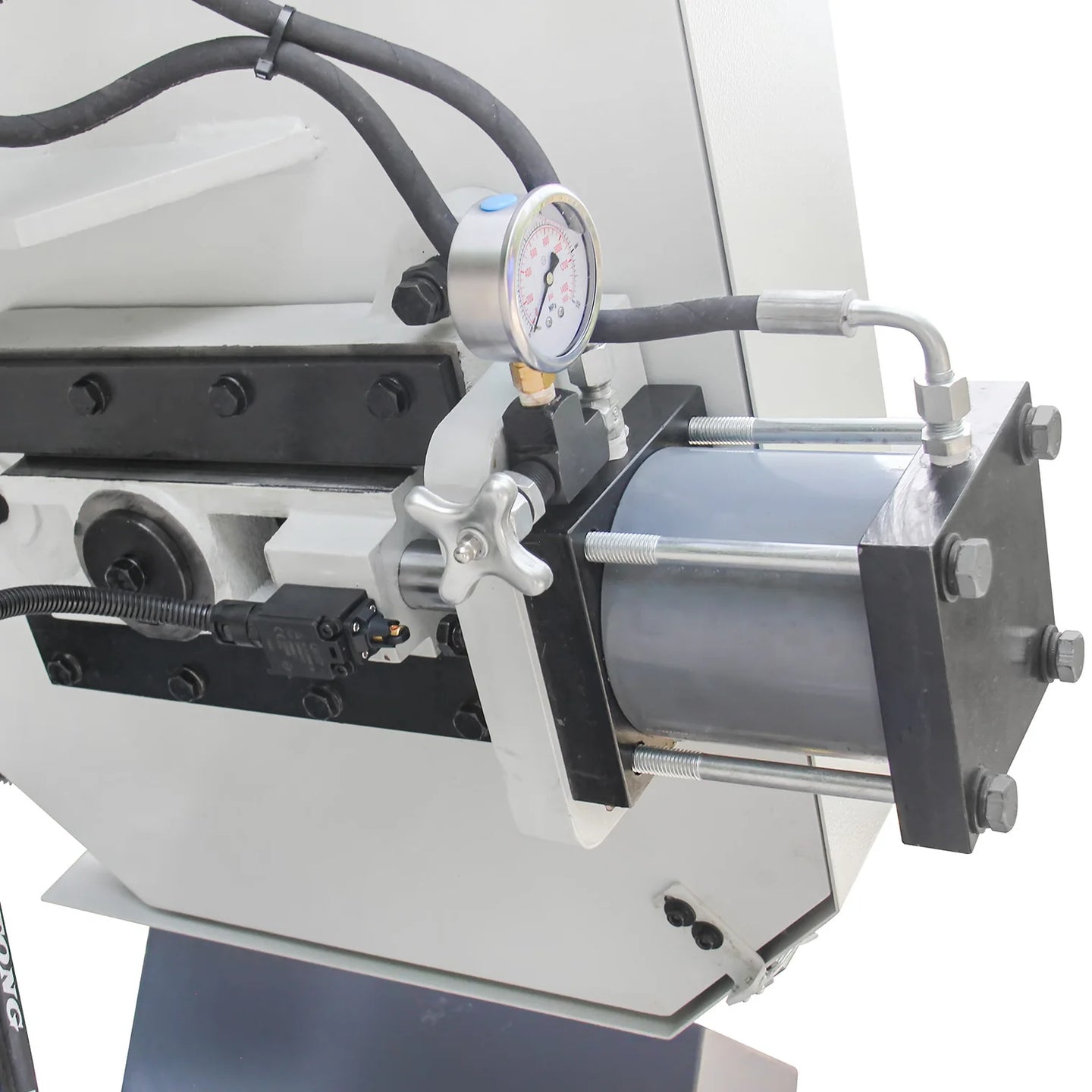

Blade tensioning
Hydraulic
Main motor power
3.0/4.0 kW
Oil pump motor power
0.75kW
Coolant pump motor power
0.045kW
Drive
Gear

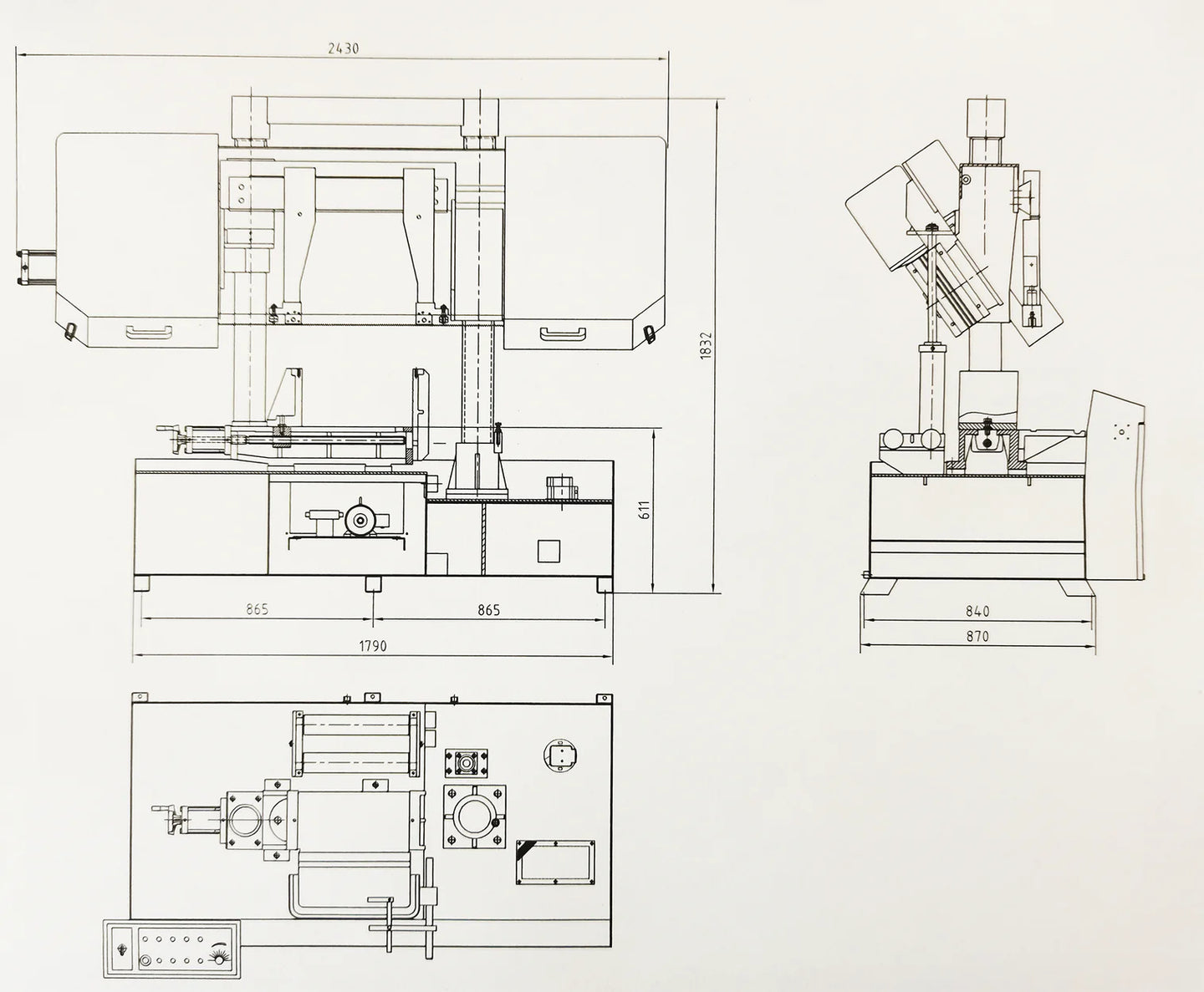

Packing size
106"x53"x58"
N.W./G.W.
2921/3208 lbs

Documents

TGK-16 Manual
