Key Features
How The Depureco M130 OIL P Compares To Other Coolant Recovery Options
Machine shops evaluating coolant and chip management usually face this question: should I use manual scoop-and-dump methods, this Depureco M130 OIL P recovery vacuum, or invest in a central coolant filtration system tied into multiple machine tools?
| Feature | Manual Scoop-And-Dump Cleanup | Depureco M130 OIL P Sump Vacuum | Central Coolant Filtration System |
|---|---|---|---|
| Coolant Reuse | Coolant typically discarded | Recovers and recycles coolant for reuse | Coolant filtered and returned continuously |
| Labor Required | High, fully manual process | Low, simultaneous suction and discharge | Low, automated once installed |
| Filtration | None | 150 micron washable PPL filter | Multi-stage, often finer filtration |
| Mobility | N/A | Portable between machines and tanks | Fixed installation, not portable |
Product Description

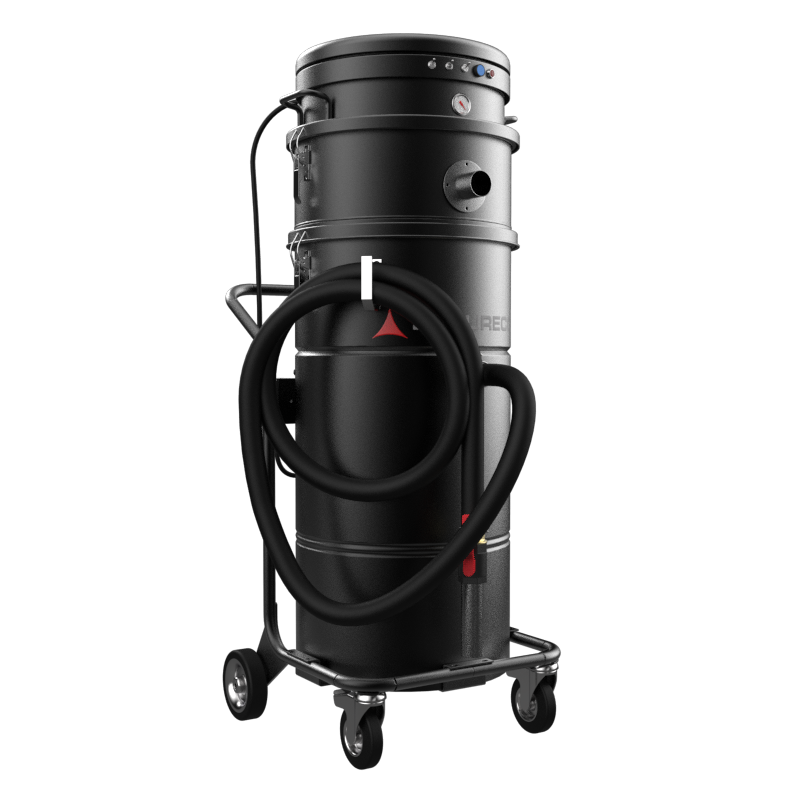

The M130 P industrial sump vacuum is engineered to efficiently collect and separate coolant and chips from tanks, worktables, and machine tools. It features a built-in pump that allows for the simultaneous suction and discharge of filtered liquids.
-
Recovers and recycles cutting and lubricating coolants
-
Streamlines coolant collection and chip removal
-
Enables simultaneous liquid suction and discharge
-
Durable powder-coated steel construction
Suction Unit
The suction power of the vacuum is produced by three by-pass motors. Each motor has its own switch, allowing the operator to regulate the intake performance. These motors are housed in a robust casing, which includes a sound-absorbing sponge to ensure a reduced noise level is maintained.
Filtering
The gathered liquid passes through a PPL filter with a 150µ efficiency, which enables the separation of even the tiniest solid particles. This process ensures that the filtered liquid becomes suitable for reuse. The filter is designed to be easily washed and reused. Additionally, there is an alternative disposable TNT filter with a 100µ efficiency that is also available.
Discharge system
The container of the vacuum cleaner is fitted with a bottom drain tube for the purpose of draining the collected liquid. The liquid is discharged from the container using the force of gravity.
TECHNICAL DATA
Motor
2 | By-Pass120/60 V|Hz94 inH2O230 CFM70 dB(A)2.7 ∣ 1∼ HPPrimary FilterPPL+oil filter includedNylon150 IFA2 Ø inMachine56 in117 lb34 gal10 gal18/18 gal/secBy gravity
ACCESSORY
P12355 – Oil and Swarf kit PRO Ø2inP12352 – Oil and Swarf kit Ø2inDocuments
Full Spec Sheet
| Model | A445 P/US, M 130 OIL P |
| Motors | 2, By-Pass |
| Voltage | 120/60V, Hz |
| Max Vacuum | 94 inH2O |
| Max Airflow | 230 CFM |
| Noise Level | 70 dB |
| Power | 2.7 HP |
| Filter | PPL plus oil filter, nylon media, 150 IFA efficiency |
| Inlet | 2 in diameter |
| Height | 56 in |
| Weight | 117 lbs |
| Liquids Capacity | 34 gal |
| Solids Capacity | 10 gal |
