Key Features
How The Depureco AirWeld Compares To Other Welding Fume Extraction Options
Fabrication shops evaluating welding fume extraction usually face this question: should I use a basic portable fume extractor arm, this Depureco AirWeld cartridge filtration system, or invest in a full central extraction system tied to multiple welding stations?
| Feature | Basic Portable Fume Extractor Arm | Depureco AirWeld A2003 | Full Central Extraction System |
|---|---|---|---|
| Filtration | Basic mesh or foam pre-filter | Cellulose cartridge, PTFE coated polyester, Class M | Multi-stage filtration, often HEPA |
| Airflow | 400-600 CFM | 900 CFM | Higher, shared across multiple stations |
| Filter Life Tracking | Manual inspection | Filter change counter built in | Often digital monitoring |
| Mobility | Portable, single station | Wheeled, single station with 3-meter arm reach | Fixed installation, serves multiple stations |
Product Description

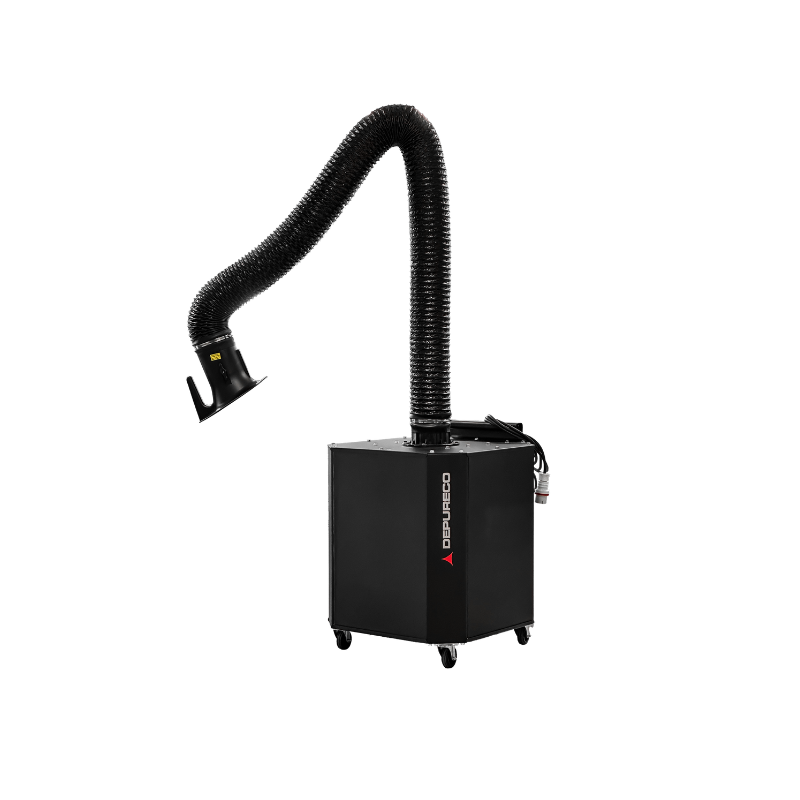

The AIR WELD industrial vacuum is a powerful suction filter with wheels equipped with a large surface cellulose filter, ideal for capturing welding fumes. This high-performance vacuum cleaner ensures operator safety and features a 3-meter articulated arm for easy maneuverability. A filter change counter conveniently indicates when replacement is necessary.
FILTRATION UNIT
A sturdy cellulose cartridge enables the capturing and the filtration of welding fumes guaranteeing the efficient protection of the operator's health
EXTRACTION ARM
A long flexible suction arm, with ergonomic adjustable hood allows the operator to vacuum from the desired spot in complete safety.
TECHNICAL DATA
Motor
Primary Filter
Full Spec Sheet
| Model | A2003 |
| Voltage | 120V, 60Hz |
| Max Airflow | 900 CFM |
| Noise Level | 72 dB |
| Inlet | 6.3 in diameter |
| Filter Type | Cartridge |
| Filter Class | M, per EN 60335-2-69 |
| Filter Media | PTFE Coated Polyester |
| Filter Surface | 18,576 sq in |
| Dimensions | 30 x 28 x 36 in |
| Weight | 176 lbs |
