Key Features
How The Darex XT-3000 Manual Base Unit Compares To Other Darex Sharpeners
Tool shops evaluating drill sharpeners usually face this question: should I get the compact V-390 for lighter, small-shop use, this expandable XT-3000 Manual base unit, or step up to a full bundle with stand and vacuum included?
| Feature | Darex V-390 | Darex XT-3000 Manual Bundle | Darex XT-3000 Manual Base Unit |
|---|---|---|---|
| Duty Rating | Standard duty, intermittent use | Heavy duty | Heavy duty |
| Included Extras | None | Machine stand, vacuum grit removal | None standard, attachments available separately |
| Cutting Diameter | 1/8 to 3/4 in, 3-19mm | 1/8 to 13/16 in, 3-21mm | 1/8 to 13/16 in, 3-21mm |
| Best Suited For | Small shops, quick value sharpening | Shops wanting a complete turnkey station | Shops building out their own attachment set over time |
Product Description

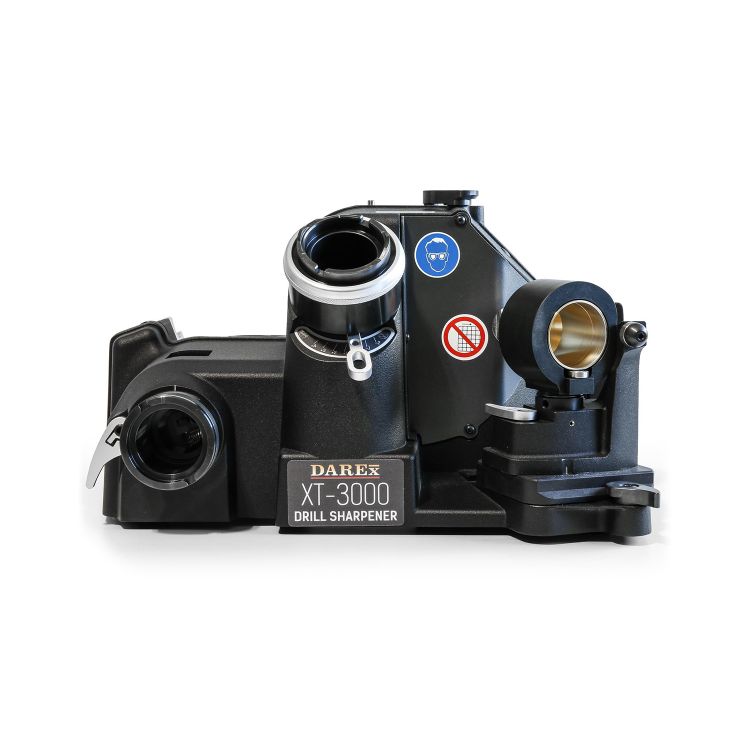

The XT-3000 Manual Drill Grinder and Sharpener is a workhorse sharpener which can be expanded to meet a variety of sharpening needs. If you want the right point for the job, but don’t want to become a tool and cutter grinding expert, the Darex XT-3000 Manual is for you. You can sharpen in house for only pennies a drill. Assembled in the USA from US and imported parts.
XT-3000 Manual Drill Sharpener Base Unit Specifications:
Ideal For: Shops that sharpen a variety of drill sizes and styles and want the advantages of a highly advanced manual drill and tool sharpener
Acceptable drill diameter: 3mm (.118, 1/8inch) – 21 mm (.826, 13/16 inch)
Acceptable drill length: Unlimited maximum, two inch minimum.
Duty Rating: Heavy duty
Grit Removal System: Optional vacuum
Cutting Tool Diameter: 1/8 inch – 13/16 inch (3–21 mm)
Operation Mode: Manual
Machine Weight: 68 lbs (31 kg)
Point Angles Sharpened: 118°–150° (90° option available)
Machine Size: 20″ x 20″ x 16″ (51 x 51 x 41 cm)
Point Styles Sharpened: Standard conic and split point
Sharpening Wheel Included:
Borazon (CBN) for HSS & cobalt (diamond option for carbide available)
Power: 2.5 amps at 115V, 1.6 amps at 230V; 1/4 hp (for international machines)
Options Available:
- Large drill attachment (21–30 mm)
- XY Table attachment
- Countersink attachment
- Brad point attachment
- Step drill attachment
- 90°–120° attachment
- Machine cover
- Vacuum (extends warranty by 1 year)
- 180-grit diamond wheel
- Diamond split point wheel
- 3–12 mm left-hand chuck
- 2–21 mm left-hand chuck
Warranty
A 1-Year Warranty covers defects due to workmanship and design, excluding abrasives. Warranty valid in USA and Canada only.
Additional information
| Weight | 11 lbs |
|---|
Full Spec Sheet
| Model | LEX900 |
| Drill Diameter | 1/8 to 13/16 in, 3-21mm |
| Drill Length | 2 in minimum, unlimited maximum |
| Point Angles | 118-150 degrees, 90 degree option available |
| Power | 2.5A at 115V, 1.6A at 230V |
| Warranty | 1 Year |
