Darex XT-3000 Auto Drill Sharpener Bundle SA-LEX900A

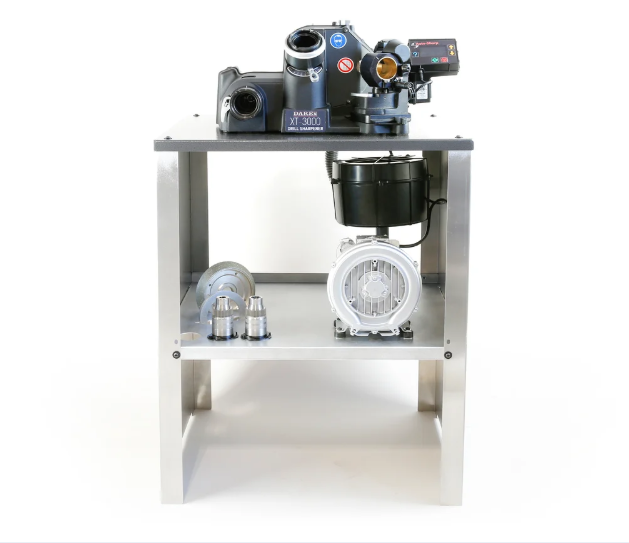

The XT-3000 automated sharpening system bundled with the Machine Stand (SKU SA10174AF) and Vacuum Grit Removal System (SKU SA10173AF). This system allows you to increase productivity by controlled cycle times and pre-drill set up. The XT-3000 Auto drill sharpener makes sharpening drills even easier. After aligning the drill, simply insert the chuck into the sharpening port and press start. The LCD screen displays valuable information and can be set to display in 5 different languages.

If you want the right point for the job, but don’t want to become a tool and cutter grinding expert, the Darex XT-3000 is for you. You can sharpen in house for only pennies a drill. Assembled in the USA from US and imported parts. 30 day trial available – If you are not satisfied with your sharpener within 30 days of receiving it, contact us to initiate a return and all you pay is shipping. We want to be sure you get a product you love! **30 day trial only available for purchases made directly through Darex IND, INC. 3rd party purchases are subject to the seller’s policies. **Products purchased via financing are NOT eligible for 30 day returns.

XT-3000 MANUAL Drill Sharpener Base Unit Specifications:

Ideal For: Shops that sharpen a variety of drill sizes and styles and want the advantages of a highly advanced manual drill and tool sharpener

Acceptable drill diameter: 3mm (.118, 1/8inch) – 21 mm (.826, 13/16 inch)

Acceptable drill length: Unlimited maximum, two inch minimum.

Duty Rating: Heavy duty

Grit Removal System: Optional vacuum

Cutting Tool Diameter: 1/8 inch – 13/16 inch (3–21 mm)

Operation Mode: Manual

Machine Weight: 68 lbs (31 kg)

Point Angles Sharpened: 118°–150° (90° option available)

Machine Size: 20″ x 20″ x 16″ (51 x 51 x 41 cm)

Point Styles Sharpened: Standard conic and split point

Sharpening Wheel Included:

Borazon (CBN) for HSS & cobalt (diamond option for carbide available)

Power: 2.5 amps at 115V, 1.6 amps at 230V; 1/4 hp (for international machines)

Options Available:

• Large drill attachment (21–30 mm)
• XY Table attachment
• Countersink attachment
• Brad point attachment
• Step drill attachment
• 90°–120° attachment
• Machine cover
• Vacuum (extends warranty by 1 year)
• 180-grit diamond wheel
• Diamond split point wheel
• 3–12 mm left-hand chuck
• 2–21 mm left-hand chuck

Warranty

A 1-Year Warranty covers defects due to workmanship and design, excluding abrasives. Warranty valid in USA and Canada only.

NOTE: Using a 115V machine in a location with 230V power sources voids the warranty.
