Key Features
How The Darex XPS-16+ 115V (Jaw Chuck) Compares To Other Darex Sharpeners
Precision tool shops evaluating Darex CNC sharpeners usually face this question: should I get the manual or auto XT-3000 for lower-volume flexible sharpening, or invest in this 4-axis CNC XPS-16+ in Jaw Chuck configuration for maximum speed and repeatability?
| Feature | Darex XT-3000 Auto Bundle | Darex XPS-16+, Collet Configuration | Darex XPS-16+ 115V, Jaw Chuck |
|---|---|---|---|
| Operation | Automatic, single-axis | Fully automatic, 4-axis CNC | Fully automatic, 4-axis CNC |
| Cutting Diameter | 1/8 to 13/16 in, 3-21mm | 2.5-16mm | 1/8 to 5/8 in, 3-16mm |
| Work Holding | Standard chuck | 6pc chuck jaw or 16pc ER-25 collet system | Jaw chuck, optimized for fast setup |
| Automation Level | Requires manual drill alignment | Auto-detects stick-out, diameter, and web thickness | Auto-detects stick-out, diameter, and web thickness |
Product Description

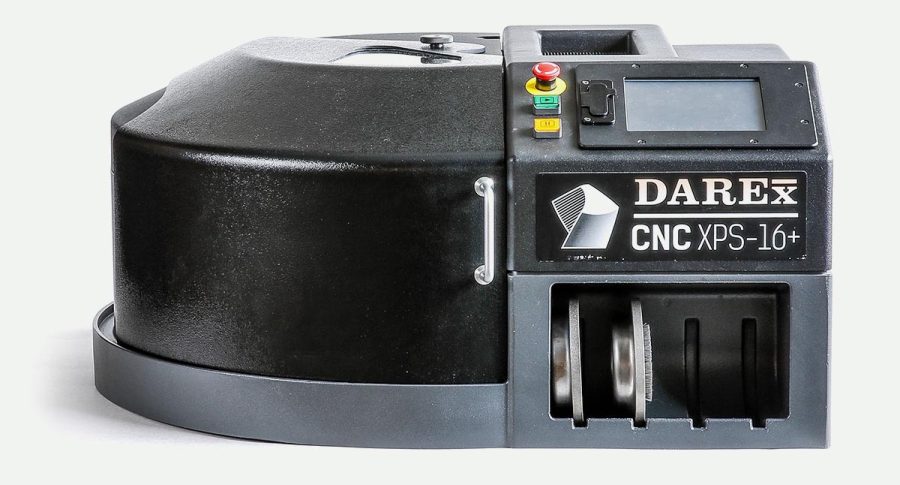

The XPS-16+ is a fully automatic 4-axis CNC drill grinder & sharpener with one-touch simplicity.
The Jaw Chuck variant of our XPS-16+ drill sharpener – maximize ease and speed of setup while maintaining aerospace levels of precision.
Only CNC can reproduce the complex, high-tech points found on today’s premium HSS and carbide drills—and the XPS-16+ can do it all with the touch of a button. For the price of a couple hundred premium carbide drills, you can sharpen in-house for only pennies a drill. This high-capacity machine can easily sharpen thousands of drills every week. With a user interface as easy to learn and use as a cell phone, everyone in your shop can be sharpening on the XPS-16+ in just a few minutes. Sharpen pre-programmed points, or program your own custom points. XPS-16+ is the only machine in the world that can automatically detect the drill’s stick-out, diameter, and web thickness—and then sharpen the drill—all in one continuous process without operator involvement.
• Cutting tool diameter: 1/8”– 5/8”
(3–16mm)
• Operation mode: Automatic
• Point angles sharpened: 118°–150°
(90° option available)
• Point styles sharpened: Standard
conic, 4-facet, standard and radius
split point
• Machine size: 26”× 22”× 12” (66 ×
56 × 30.5cm)
• Machine weight: 115 lbs (52kg) /
vacuum 30 lbs (13kg)
• Sharpening Wheel included:
Borazon (CBN) for HSS & Cobalt;
diamond for Carbide
• Grit removal system: Vacuum
| Weight | 200 lbs |
|---|---|
| Dimensions | 48 × 40 × 46 in |
| Variant |
Standard, Collet Chuck |
Full Spec Sheet
| Model | CNC-XPS-16+ |
| Cutting Diameter | 1/8 to 5/8 in, 3-16mm |
| Point Angles | 118-150 degrees, 90 degree option available |
| Point Styles | Standard conic, 4-facet, standard and radius split point |
| Machine Size | 26 x 22 x 12 in |
| Machine Weight | 115 lbs, plus 30 lbs vacuum |
| Grind Wheel | Borazon CBN for HSS/Cobalt, diamond for Carbide |
| Grit Removal | Vacuum |
