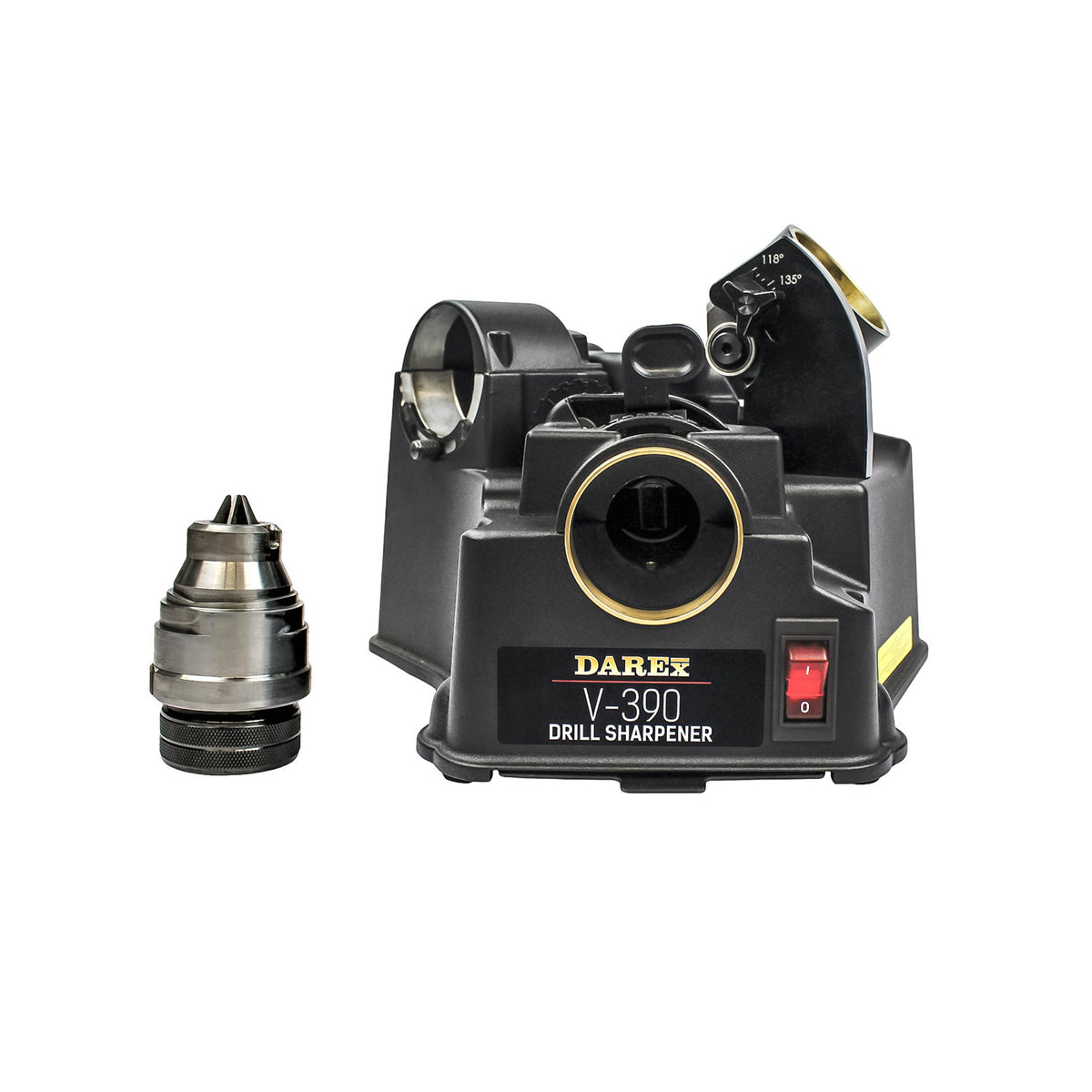

Darex V-390 Drill Sharpener JVT390

SKU: JVT390

$1,995.00 Free Shipping

As low as $180.15/mo with shop

In Stock & Ready to Ship

Save 2% Today at Checkout

✓ Authorized Dealer

✓ Free And Fast Shipping

✓ Expert Product Support Call (888) 688-5869

Secure checkout

Secure Checkout

Manufacturer Warranty

Easy 30-Day Returns

Expert Support

Key Features

✓ Priced right for small shops to sharpen drills economically in-house

✓ Sharpens most common drills in under a minute

✓ Sharpens standard conic and split point styles

✓ Borazon CBN wheel included, diamond option available for carbide

✓ Assembled in the USA from US and imported parts

✓ Standard duty, built for intermittent use

How It Compares

How The Darex V-390 Compares To Other Darex Sharpeners

Small shops evaluating drill sharpeners usually face this question: should I get this compact, value-priced V-390, or step up to the heavier-duty XT-3000 for a broader diameter range and expandable attachments?

Feature	Darex XT-3000 Manual	Darex Hybrid XT-3000 Manual	Darex V-390
Duty Rating	Heavy duty	Heavy duty	Standard duty, intermittent use
Cutting Diameter	1/8 to 13/16 in, 3-21mm	1/8 to 13/16 in, 3-21mm	1/8 to 3/4 in, 3-19mm
Weight	68 lbs	68 lbs	25 lbs
Best Suited For	Shops wanting expandable attachments	Shops sharpening varied materials	Small shops wanting quick, intuitive sharpening at a value price

Product Description

The V-390 sharpens common point styles with ease. Priced right for small shops – even very small shops can economically sharpen their own drills in real time. For the cost of less than 100 drills, you can accurately sharpen most common drills in under a minute. Assembled in the USA from US and imported parts.

V-390 Drill Sharpener

Ideal For: Shops that demand a precision sharpener at a value price that operates quickly and intuitively

Duty Rating: Standard duty, intermittent use

Grit Removal System: Optional vacuum

Cutting Tool Diameter: 1/8″–3/4″ (3–19 mm)

Options Avaible: 180-grit diamond wheel, Morse Taper chuck

Operation Mode: Manual

Machine Weight: 25 lbs (11 kg)

Point Angles Sharpened: 118°–140°

Machine Size: 12″ x 11″ x 9″ (30 x 28 x 23 cm)

Point Styles Sharpened: Standard conic and split point

Sharpening Wheel Included: Borazon (CBN) for HSS & cobalt (diamond option for carbide available)

Power: 4.5 amps at 115V, 3 amps at 230V; 3450 rpm

Warranty

A 1-Year Warranty covers defects due to workmanship and design, excluding abrasives. Warranty valid in USA and Canada only.

NOTE: Using a 115V machine in a location with 230V power sources voids the warranty.

Additional information

Weight	24 lbs

Full Spec Sheet

Model	JVT390
Cutting Diameter	1/8 to 3/4 in, 3-19mm
Point Angles	118-140 degrees
Power	4.5A at 115V, 3A at 230V, 3450 RPM
Weight	25 lbs
Warranty	1 Year
