Key Features
How The Darex Hybrid XT-3000 Manual Compares To Other Darex Sharpeners
Tool shops evaluating Darex drill sharpeners usually face this question: should I get the standard XT-3000 with a Borazon wheel, this Hybrid manual model that handles every material on one wheel, or step up to the Hybrid Auto for high-volume work?
| Feature | Darex XT-3000 Manual, Standard Wheel | Darex Hybrid XT-3000 Auto | Darex Hybrid XT-3000 Manual |
|---|---|---|---|
| Grind Wheel | Borazon CBN for HSS/Cobalt, diamond option for carbide | Hybrid, sharpens HSS/Cobalt/Carbide on one wheel | Hybrid, sharpens HSS/Cobalt/Carbide on one wheel |
| Operation | Manual | Automatic | Manual |
| Wheel Changes Needed | Yes, when switching drill materials | No | No |
| Best Suited For | Shops working mostly one material type | High-volume shops sharpening varied materials | Shops sharpening varied materials at moderate volume |
Product Description
Utilizing the latest innovation in drill grinding, this sharpener comes equipped with a proprietary new Hybrid grind media, eliminating the need to change grind wheels depending on the drill material – sharpen HSS, Cobalt and Carbide drills all on the same grind wheel.
If you want the right point for the job, but don’t want to become a tool and cutter grinding expert, the Darex XT-3000 is for you. You can sharpen in house for only pennies a drill. Assembled in the USA from US and imported parts. 30 day trial available – If you are not satisfied with your sharpener within 30 days of receiving it, contact us to initiate a return and all you pay is shipping. We want to be sure you get a product you love! **30 day trial only available for purchases made directly through Darex IND, INC. 3rd party purchases are subject to the seller’s policies. **Products purchased via financing are NOT eligible for 30 day returns.

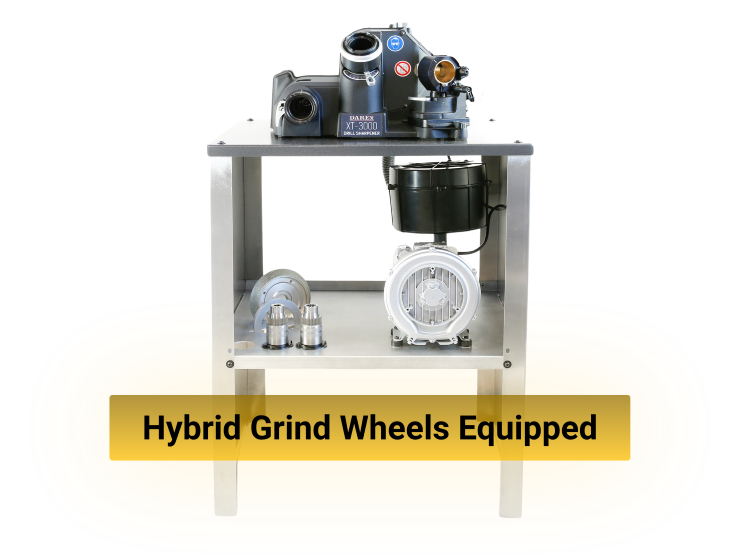

Hybrid XT-3000 MANUAL Drill Sharpener Base Unit Specifications:
Ideal For: Shops that sharpen a variety of drill sizes and materials and want to eliminate the need to change grind wheels based on the drills being sharpened.
Acceptable drill diameter: 3mm (.118, 1/8inch) – 21 mm (.826, 13/16 inch)
Acceptable drill length: Unlimited maximum, two inch minimum.
Duty Rating: Heavy duty
Grit Removal System: Optional vacuum
Cutting Tool Diameter: 1/8 inch – 13/16 inch (3–21 mm)
Operation Mode: Manual
Machine Weight: 68 lbs (31 kg)
Point Angles Sharpened: 118°–150° (90° option available)
Machine Size: 20″ x 20″ x 16″ (51 x 51 x 41 cm)
Point Styles Sharpened: Standard conic and split point
Sharpening Wheel Included:
Proprietary Hybrid grind wheels – can sharpen HSS, Cobalt and Carbide
Power: 2.5 amps at 115V, 1.6 amps at 230V; 1/4 hp (for international machines)
Options Available:
- Large drill attachment (21–30 mm)
- XY Table attachment
- Countersink attachment
- Brad point attachment
- Step drill attachment
- 90°–120° attachment
- Machine cover
- Vacuum (extends warranty by 1 year)
- 3–12 mm left-hand chuck
- 2–21 mm left-hand chuck
Warranty
A 1-Year Warranty covers defects due to workmanship and design, excluding abrasives. Warranty valid in USA and Canada only.
NOTE: Using a 115V machine in a location with 230V power sources voids the warranty.
Additional information
| Weight | 126 lbs |
|---|
Full Spec Sheet
| Model | SA-LEX900-HY |
| Drill Diameter | 1/8 to 13/16 in, 3-21mm |
| Drill Length | 2 in minimum, unlimited maximum |
| Point Angles | 118-150 degrees, 90 degree option available |
| Power | 2.5A at 115V, 1.6A at 230V |
| Machine Weight | 68 lbs |
| Warranty | 1 Year |
