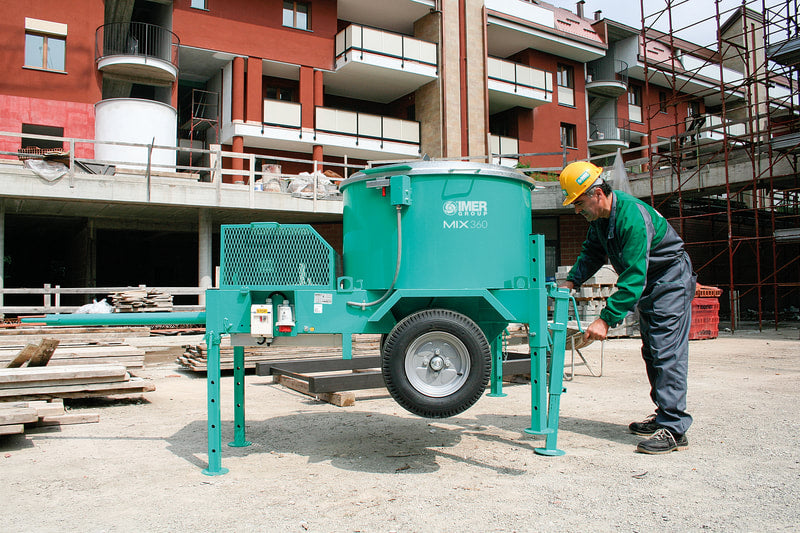

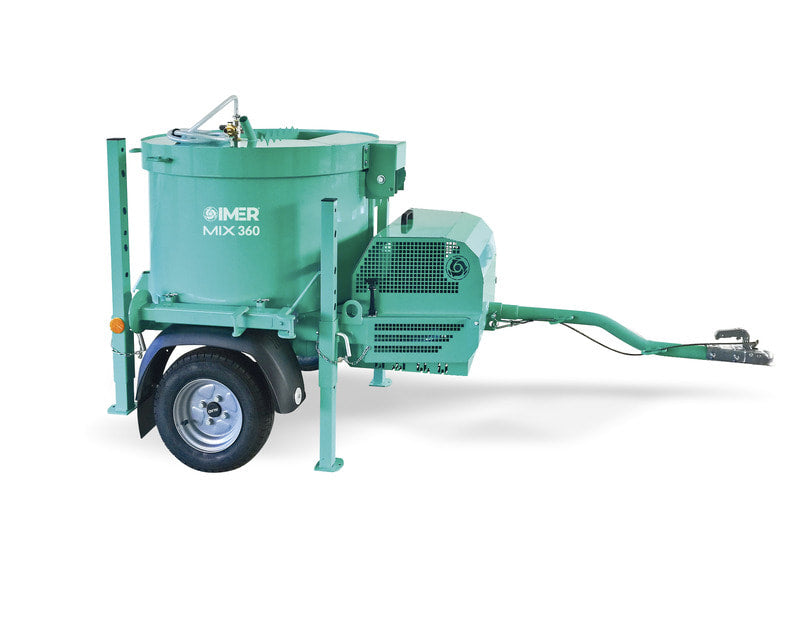

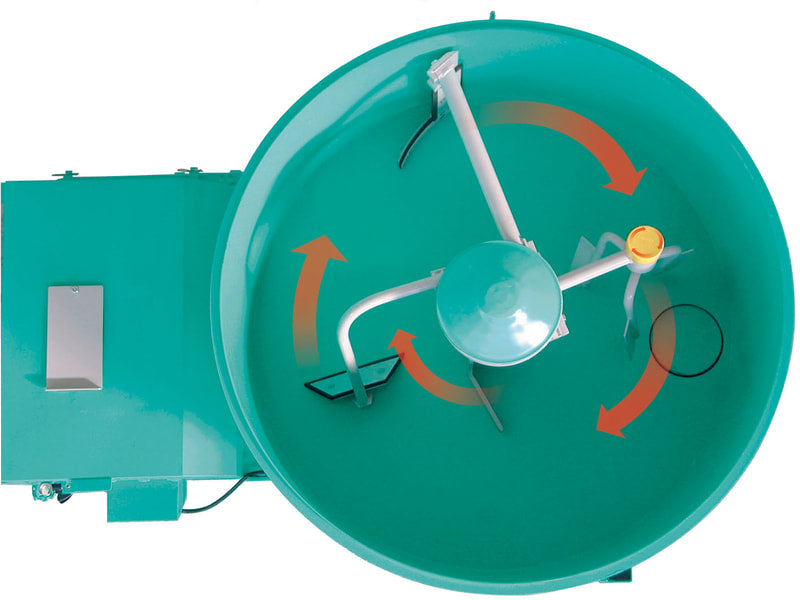

Vertical shaft mixers use the principles of concrete batch plant design, which allows for the paddles to rotate through the mix rather than lift and drop it as conventional mortar mixers do. The Mix 360 vertical shaft towable mixer easily mixes very low slump materials like dry pack mortar and refractory cement, as well as UHPC.

Technical Specifications
Model # 1194662
Model # - Gas 1194661
Drum Capacity 12 cu ft
Batch Output 9 cu ft
Maximum Aggregate Size 3/8 in
Discharge Height- Max / Min 30 / 18 in
Wheel Size 18 in
Weight (Gas) 787 lbs (794 lbs)
Electric Motor 240V 5 HP Single Phase
Gas Engine 11 HP Honda GXV 390
Width 44 in
Length 59 in
Height 58 in



Standard Equipment

  • Auto-Shutdown Safety Grate
  • Adjustable Leg Heights
  • Tow Bar
  • Torsion Bar Suspension

Downloads

Owner's Manual

Product Sheet

Video
