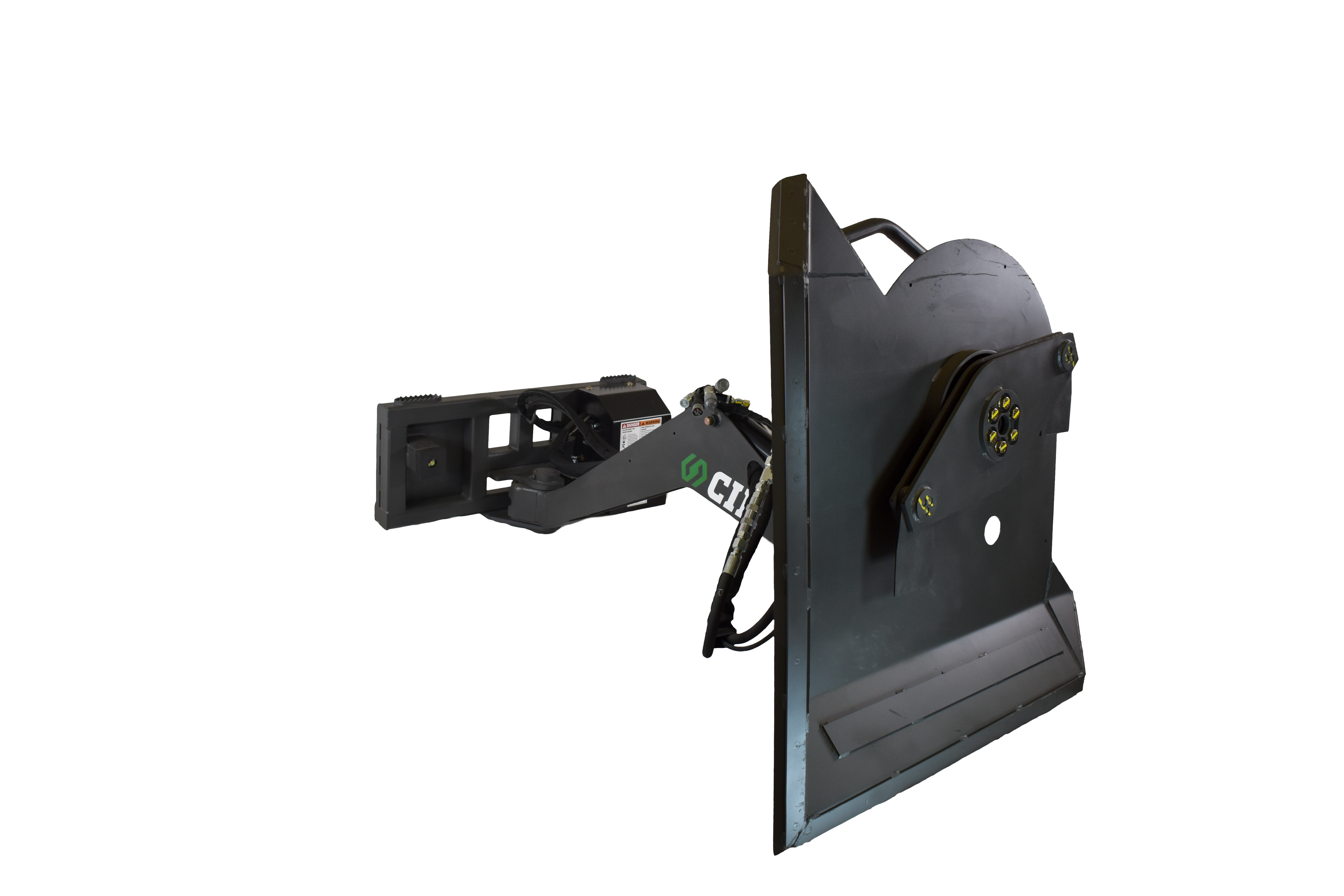

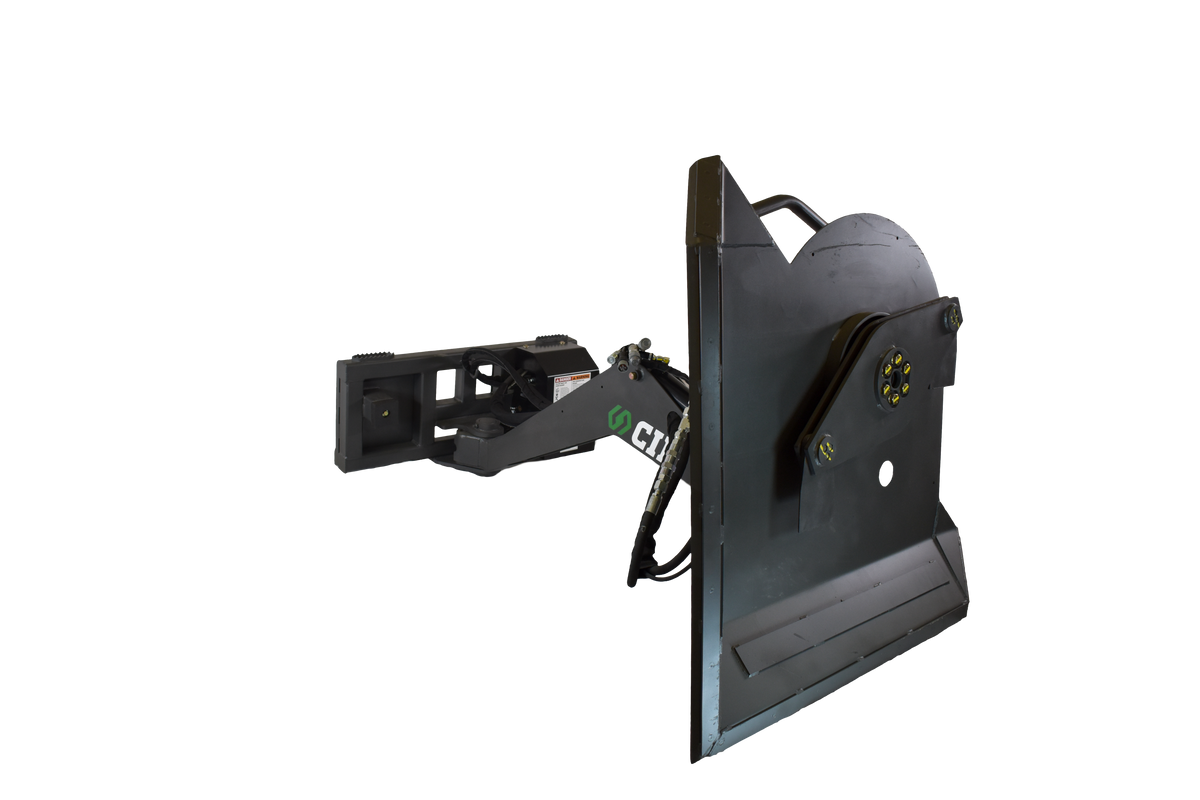

Our Piston Swing Boom Cutter is a valuable addition to your equipment collection. It is specifically designed for cutting banks, fence lines, and right of ways, and is also highly effective for clearing pond banks and cutting trails. This cutter offers a significant reach advantage over our standard models, with a horizontal reach of 96″ and a vertical reach of sixteen feet, making it easier to clear unwanted tree limbs. It can also swing to the right for use as a side cutter. Powered by a direct drive piston motor on a bearing housing with a maximum PSI of 4000, it requires a flow of 17-27 GPM. Please note that the one-year warranty does not cover the blades and hoses.

SKU SBCNS
Weight (Lbs.) 1208
Cutting Width (") 44
Cutting Capacity (") 4"
Blade Count 2
Flow Range (GPM) 17 - 30 GPM
Max Pressure (PSI) 4000
Boom Cylinder Size 3" x 16"
Swing Cylinder Size 3" x 6"
Motor Direct Drive Piston Motor
Case Drain Required
Wiring Harness Options Universal, 7 pin, 8 pin, or 14 pin
Blade Material 5/8" AR400
Horizontal Reach (") 96
Vertical Reach (")

192
