Key Features
How The BT Ride-On Power Trowel Compares To Other Concrete Finishing Options
Concrete contractors evaluating power trowels for large slab work usually face this question: should I use a single-rotor walk-behind trowel, this manual-steer ride-on model, or invest in a premium hydraulic-steer ride-on trowel?
| Feature | Walk-Behind Power Trowel, Single Rotor | BT900H24TC Manual-Steer Ride-On | Premium Hydraulic-Steer Ride-On |
|---|---|---|---|
| Operating Area | 24-48 in diameter, single rotor | 73 in operating area, dual rotor coverage | 74-96 in operating area, dual rotor coverage |
| Rotor Speed | Varies, typically lower RPM | High speed finishing at 170 RPM | 145-165 RPM typical |
| Steering | Walk-behind, manual pitch handle | Ergonomic manual steering, minimal effort | Hydraulic steering assist |
| Best Suited For | Small to medium pours under 3,000 sq ft | Large commercial and industrial slabs | Very large slabs, 20,000+ sq ft |
Product Description
How The BT Ride-On Power Trowel Compares To Other Concrete Finishing Options
Concrete contractors evaluating power trowels for large slab work usually face this question: should I use a single-rotor walk-behind trowel, this manual-steer ride-on model, or invest in a premium hydraulic-steer ride-on trowel?
Here's the honest comparison:
| Feature | Walk-Behind Power Trowel, Single Rotor ($2,000-$4,000) | BT900H24TC Manual-Steer Ride-On ($13,099) | Premium Hydraulic-Steer Ride-On ($14,000-$17,000+) |
|---|---|---|---|
| Operating Area | 24-48 in. diameter, single rotor | 73 in. operating area, dual rotor coverage | 74-96 in. operating area, dual rotor coverage |
| Engine | 5.5-13 HP Honda | Honda GX690, 26 HP | 22-40 HP Honda or Vanguard |
| Rotor Speed | Varies, typically lower RPM | High speed finishing at 170 RPM | 145-165 RPM typical |
| Steering | Walk-behind, manual pitch handle | Ergonomic manual steering, minimal operator effort | Hydraulic steering assist |
| Drive System | Belt or gear drive | Torque clutch system constantly adjusts drive ratio | Hydrostatic drive |
| Operator Position | Standing, walking behind machine | Seated, elevated deck with adjustable seat | Seated, elevated deck with adjustable seat |
| Visibility Aids | None | Four LED lights for floor condition visibility | Sometimes included |
| Retardant Spray System | Not included | Onboard system to extend surface working time | Often included |
| Best Suited For | Small to medium pours under 3,000 sq. ft. | Large commercial and industrial slabs needing fast coverage | Very large slabs, 20,000+ sq. ft., prioritizing hydraulic ease of control |
Why The BT Ride-On Power Trowel Is Worth The Investment

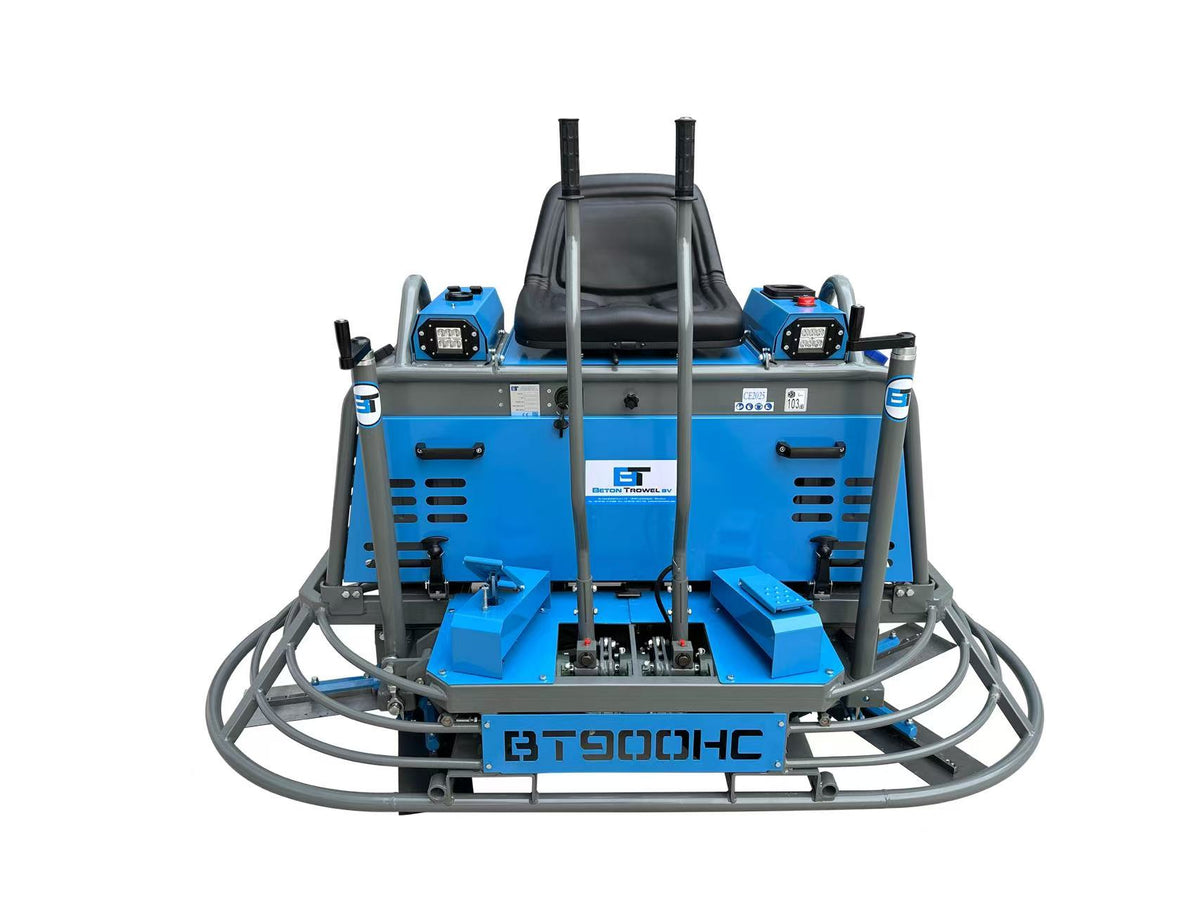

This isn't just a power trowel, it's a dual-rotor ride-on machine with a 73 in. operating area and a Honda GX690 26 HP engine, giving concrete contractors dramatically faster coverage on large slabs than a walk-behind trowel could ever achieve.
The BT900H24TC specifically addresses the needs of concrete contractors finishing large commercial or industrial floors who need to cover significant square footage quickly and consistently before the concrete sets.
Speed And Coverage That Change The Job Timeline. With a 73 in. operating area and high speed finishing at 170 RPM, this ride-on trowel covers large slabs several times faster than a walk-behind unit, meaning a 20,000 sq. ft. warehouse floor gets finished before the concrete sets up unevenly.
Built For Efficient, Reliable Finishing
The torque clutch system constantly adjusts the drive ratio for efficient transfer of horsepower from the Honda GX690 engine
A precision machined gearbox with a large oil reservoir keeps the drivetrain running cool during extended use
Spider plates and trowel arms are designed and machined for wear resistance and long service life
Engineered For Operator Comfort And Control
Ergonomic steering ensures minimal effort from the operator, even during long finishing sessions
An adjustable seat, hand trowel tool holder, and drink holder support operator comfort on demanding jobs
Four LED lights ensure excellent visibility of floor conditions, while the onboard retardant spray system extends surface working time
Real Savings
Faster coverage on large slabs reduces labor hours and crew size compared to walk-behind trowels
The onboard retardant spray system reduces the risk of costly re-finishing from concrete setting too quickly in hot conditions
A 24 month warranty on the gearbox reduces the risk of unexpected drivetrain repair costs
Free shipping and no sales tax through Summit Forge Supply keeps the total cost down compared to buying elsewhere and paying tax and freight separately
The Bottom Line Concrete contractors finishing large commercial or industrial floors can't afford the time and labor cost of covering thousands of square feet with a walk-behind trowel. The BT900H24TC is built with a 73 in. dual-rotor operating area, a powerful Honda GX690 engine, and operator comfort features designed for long finishing sessions, so it gets large slabs finished before the concrete sets unevenly. For anyone finishing commercial or industrial concrete floors as a regular part of the business, this is the trowel built to cover the ground fast.
- 73 In. operating diameter for great coverage on large floors
- Driven by a Honda GX690 26 HP engine for power and reliability
- Torque clutch system constantly adjusts drive ratio for efficient transfer of horsepower
- Capable of high speed finishing at 170 RPM
- Ergonomic steering ensures minimal effort from the operator
- Precision machined gearbox with large oil reservoir for cool operation
- Spider plate and trowel arms designed and machined for wear resistance and long service life
- Four LED lights ensure excellent visibility of floor conditions, with onboard retardant spray system to extend surface working time
- Adjustable seat, hand trowel tool holder, and drink holder all ensure operator comfort on demanding jobs
- Accepts a wide variety of blades and float pans, including finish blades, wide finish blades, combination blades, and float shoes
- 24 month warranty on gearbox
| Equipment Type | Power Trowel |
| Blades | 8 |
| Dimensions | 39 in. L x 77 in. W x 48 in. H |
| Engine | GX690 |
| Engine Brand | Honda |
| Finish Area | 77 in. x 40 in. |
| Finish Blade Size | 6 in. x 14 in. |
| Float Pans | Yes |
| Float Shoe Size | 10 in. x 14 in. |
| Horsepower | 26 HP |
| Lights | 4 x LED |
| Plastic Blades | Yes |
| Spray System | Yes |
| Steering System | Manual |
| Warranty | 1 year, 2 year on gear box |
| Weight | 831 lb. |
| Wide Finish Blade Size | 8 in. x 14 in. |
Full Spec Sheet
| Model | BT900H24TC |
| Engine | Honda GX690, 26 HP |
| Blades | 8 |
| Dimensions | 39 in L x 77 in W x 48 in H |
| Finish Area | 77 x 40 in |
| Rotor Speed | Up to 170 RPM |
| Steering | Manual |
| Weight | 831 lb |
| Warranty | 1 year, 2 years on gearbox |
