Key Features
How The BT Reversible Plate Compactor 17 Inch Compares To Other Plate Compactor Options
Contractors evaluating reversible plate compactors usually face this question: should I get the smaller 14 in GX160 model, this larger 17 in GX200 model, or the 18 in Yanmar diesel model for maximum compaction force?
| Feature | BT Reversible Plate Compactor 14 In, GX160 | BT Reversible Plate Compactor 17 In, GX200 | BT Reversible Plate Compactor 18 In, Yanmar Diesel |
|---|---|---|---|
| Centrifugal Force | 3,372 lb | 6,071 lb | 11,240 lb |
| Weight | 176 lb | 353 lb | 573-1,014 lb |
| Fuel Type | Gasoline | Gasoline | Diesel |
| Best Suited For | Tight spaces needing precise control | Mid-size jobs needing more force and coverage | Large footprints, heaviest compaction jobs |
Product Description
How The BT Reversible Plate Compactor 17" Compares To Other Plate Compactor Options
Contractors evaluating reversible plate compactors usually face this question: should I get the smaller 14" GX160 model, this larger 17" GX200 model, or the 18" Yanmar diesel model for maximum compaction force?
Here's the honest comparison:
| Feature | BT Reversible Plate Compactor 14", Honda GX160 ($2,849) | BT Reversible Plate Compactor 17", Honda GX200 ($3,726) | BT Reversible Plate Compactor 18", Yanmar Diesel ($7,124) |
|---|---|---|---|
| Engine | Honda GX160, 5.5 HP | Honda GX200, 6.5 HP | Yanmar L70 diesel, 4.7 HP |
| Fuel Type | Gasoline | Gasoline | Diesel |
| Plate Size | 13.7 in. x 18.8 in. | 27.6 in. x 16.9 in. | 17.7 in. x 27.5 in. |
| Centrifugal Force | 3,372 lb. | 6,071 lb. | 11,240 lb. |
| Vibration Frequency | 6,000 VPM | 5,400 VPM | 5,200 VPM |
| Weight | 176 lb. | 353 lb. | 573-1,014 lb. |
| Reversing Mechanism | Hydraulic reversing, forward and backward | Hydraulic reversing, forward and backward | Hydraulic reversing, forward and backward |
| Transport | Standard | Integrated hoist hook recess for easy loading and unloading | Integrated hoist hook recess |
| Climbing Gradient | Up to 35% | Up to 35% | Up to 35% |
| Best Suited For | Tight spaces needing precise control | Mid-size jobs needing more force and coverage than the 14" model | Large footprints, aggregate base, heaviest compaction jobs |
Why The BT Reversible Plate Compactor 17" Is Worth The Investment

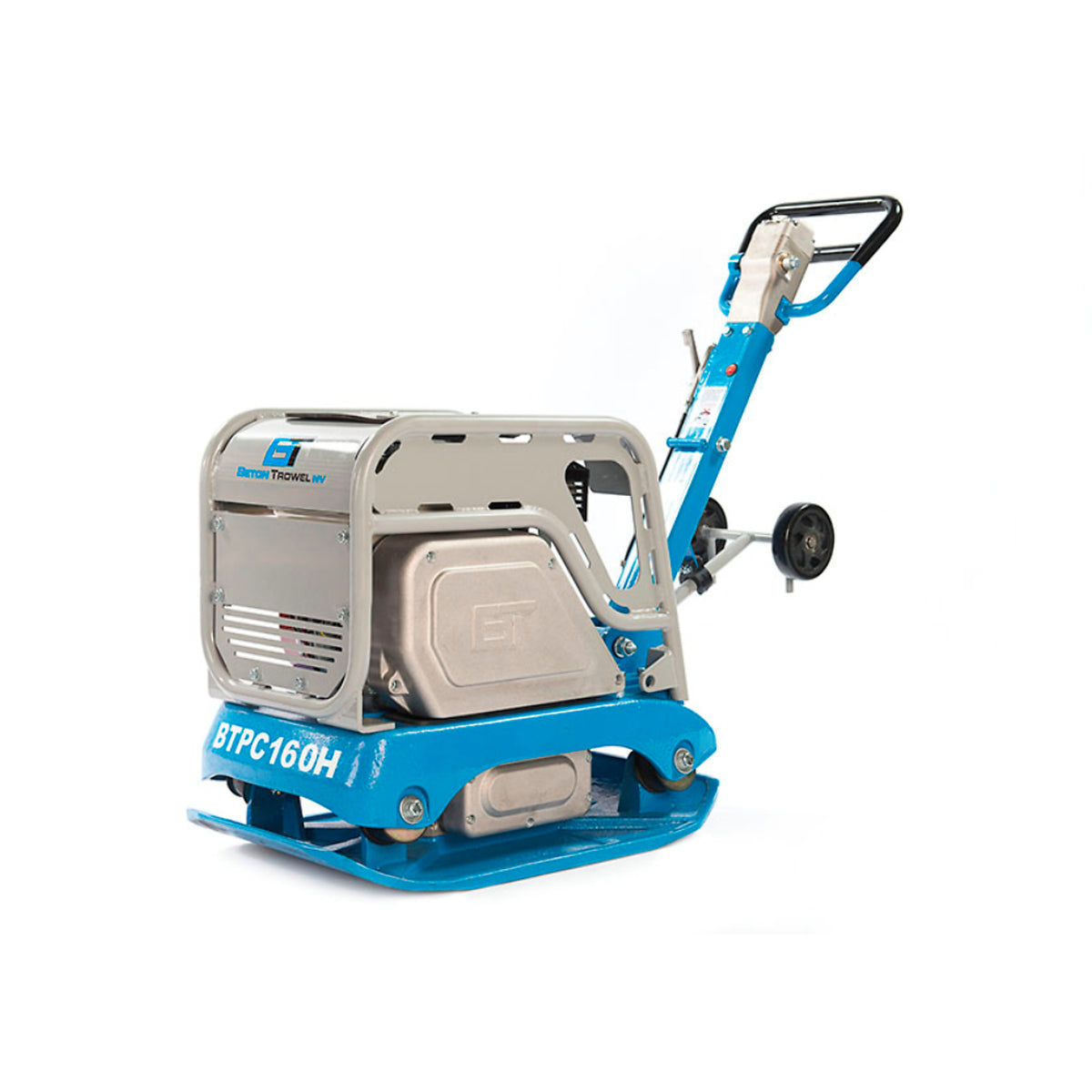

This isn't just a plate compactor, it's built with a Honda GX200 engine and a wider 27.6 in. x 16.9 in. plate, giving contractors nearly double the centrifugal force of the smaller 14" model without stepping up to the weight and cost of the diesel unit.
The BRPC160H specifically addresses the needs of contractors compacting mid-size areas of granular soil and aggregate who need more force and coverage than the smaller reversible model provides, without needing the maximum output of the diesel version.
More Force, Wider Coverage, Still Gas-Powered. With 6,071 lb. of centrifugal force and a 27.6 in. wide plate, this compactor delivers significantly more compaction power and coverage per pass than the smaller 14" model, while staying on familiar gasoline power instead of switching to diesel.
Built For Durability On The Job Site
The cast aluminum belt guard protects the clutch from job site debris and impact damage
A ductile iron base adds long-term longevity compared to lighter stamped steel bases
The fully enclosed frame protects the reliable Honda GX200 engine for maximum reliability
Engineered For Practical Job Site Use
The hydraulic reversing mechanism allows easy forward and backward movement without repositioning the operator
Travels at 65 to 82 feet per minute, even on slopes up to a 35% climbing gradient
An integrated hoist hook recess makes the compactor easy to load and unload at job sites
Real Savings
Higher centrifugal force and a wider plate reduce the number of passes needed on mid-size jobs, saving labor time
Gasoline power keeps fuel and maintenance familiar and widely available compared to switching to diesel
A ductile iron base and cast aluminum belt guard reduce the risk of costly damage from job site debris
Free shipping and no sales tax through Summit Forge Supply keeps the total cost down compared to buying elsewhere and paying tax and freight separately
The Bottom Line Contractors compacting mid-size areas of granular soil and aggregate can't afford a compactor that's underpowered for the job or unnecessarily heavy and diesel-fueled for their needs. The BT Reversible Plate Compactor 17" is built with a Honda GX200 engine, a wide 27.6 in. plate, and a hydraulic reversing mechanism, so it delivers serious compaction force while staying on gasoline power. For anyone compacting mid-size footprints on a regular basis, this is the compactor built to hit that middle ground.
- Enclosed frame to protect the Honda GX200 engine
- Hydraulic reversing mechanism allows forward and backward movement
- Cast aluminum throttle and ductile iron base
- 16.9 by 27.5 In. plate provides great coverage for compaction
- Travels at 65 to 82 feet per minute, at up to 35% climbing gradient
- 27k Newton centrifugal force, with 5,400 VPM frequency
- Easy to load and unload with hoist hook recess
| Equipment Type | Reversible Plate Compactor |
| Centrifugal Force (Lb.) | 6,071 lb. |
| Dimensions | 30 in. L x 20 in. W x 48 in. H |
| Engine | GX200 |
| Engine Brand | Honda |
| Gradient Climb | 35% |
| Horsepower | 6.5 HP |
| Plate Size L x W (In.) | 27.6 in. L × 16.9 in. W |
| Travel Speed | 82 Ft./Min. |
| Vibrations Per Minute | 5400 |
| Warranty | 1 Year |
| Water Tank | No |
| Weight | 353 lb. |
Full Spec Sheet
| Model | BTPC160H |
| Engine | Honda GX200, 6.5 HP |
| Centrifugal Force | 6,071 lb |
| Dimensions | 30 in L x 20 in W x 48 in H |
| Plate Size | 27.6 in L x 16.9 in W |
| Travel Speed | 82 ft/min |
| Vibrations Per Minute | 5,400 |
| Gradient Climb | 35% |
| Weight | 353 lb |
| Warranty | 1 Year |
