Product Description

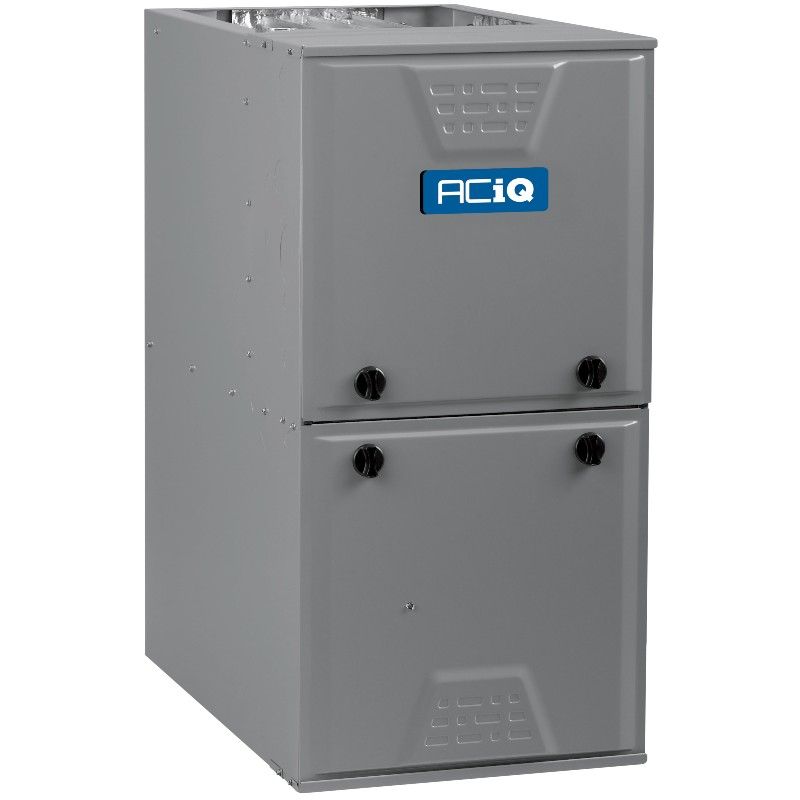

Designed to be a high-efficiency furnace, the ACiQ N96MSN1002120A is a money saving unit to provide heating throughout even the coldest months of the year. With its multi-positional design, this unit is a good all-around choice for nearly any application.
QUICK FACTS
- 100,000 BTU, 96% AFUE natural gas furnace
- Generally suitable for up to a medium to large house in ideal applications
- Multi-positional design can be installed in the upflow, downflow, or horizontal orientations
- Single stage burner with a multi-speed blower
- Field-convertible to propane with an optional LP kit
- On board self-diagnostics
- Energy Star certified
100,000 BTU, 96% AFUE
The ACiQ N96MSN1002120A has an input of 100,000 BTU. With an efficiency of 96%, this means that the furnace has an output of 96,000 BTU. The 96% AFUE also means that for the gas going into the furnace, 96% of it is used to heat your home while only 4% is lost out of the flue piping and lost to normal furnace operations. All furnaces at this efficiency (90% and above) requires plastic/PVC flue venting, and if metal flue venting is required for your installation, an 80% efficient furnace would be needed instead. While this unit uses natural gas as fuel out of the box, we also have an LP conversion kit, available at an additional cost. Please note that this furnace is not Ultra Low NOx compliant and if shipped to California may be subject to a mitigation fee.
Warranty
ACiQ offers 10 year parts warranty and lifetime (20 year) heat exchanger limited warranty. Please note that in order for these warranties to be upheld, installation following your state and local codes are required, along with timely registration through the manufacturer.
Installation and Durability
With its ability to be installed in any configuration, upflow, downflow, or horizontal, the ACiQ N96MSN1002120A is very versatile in application potential. The unit has a durable outer casing that can withstand wear-and-tear through its entire lifetime, providing the peace of mind that your home will stay comfortable year-round. Please note that this furnace is not intended for use in a mobile home on its own.
| ACiQ 96% 100,000 BTU Single Stage Gas Furnace - 21" Width - Multi-Positional | |
|---|---|
| Feature | Spec |
| SKU | N96MSN1002120A |
| Weight | 164.000000 |
| AHRI Certificate Number | 213148762 |
| Manufacturer | ACiQ |
| Replaces | N95ESN1002120A |
| Equivalent |
Carrier Equivalent: 59SC5B100E21--20 Tempstar Equivalent: TN96MSN1002120A Bryant Equivalent: 915SB60100E21 |
| Product Features | New Refrigerant Compliant |
| Furnace Efficiency / AFUE | 96% |
| Heating BTU | 100,000 |
| Blower Motor | ECM |
| Maximum CFM | 2125 |
| Configuration | Upflow/Downflow/Horizontal |
| Energy Star | Yes |
| Burner Stages | Single |
| Fuel Type | Propane, Natural Gas |
| Height | 35" |
| Width | 21" |
| Depth | 29 1/2" |
| Warranty | 20 Year Heat Exchanger / 10 Year Parts with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information |
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.
