Product Description

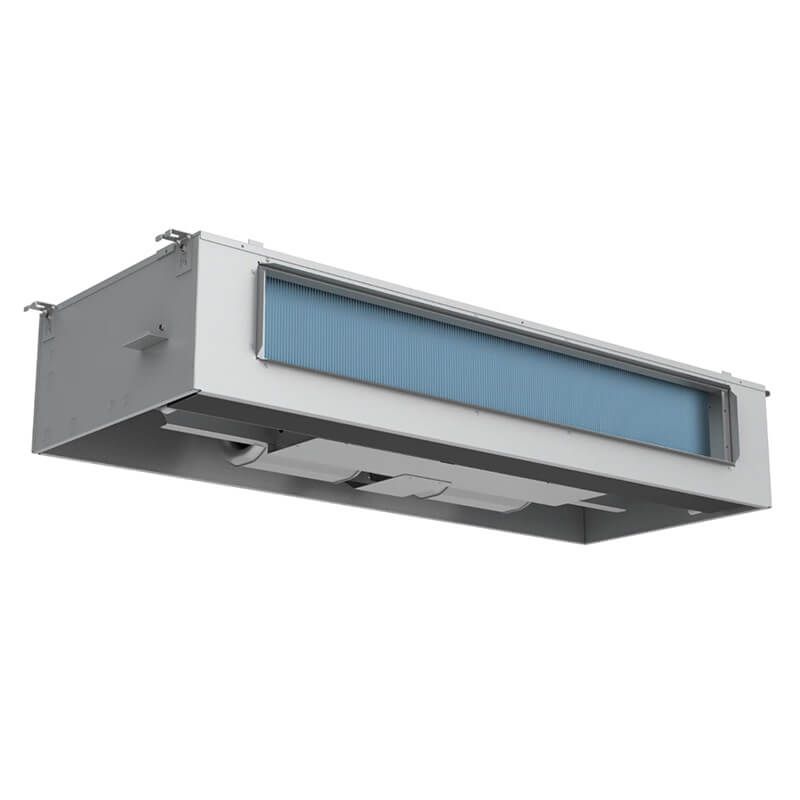

The ACIQ Ceiling Mounted Ducted Air Handler, commonly known as the "pancake" air handler, is specifically engineered for use with R454B refrigerant. It is well-suited for installation in drop ceilings and attic spaces and connects directly to ductwork. Designed to pair seamlessly with ACIQ High Efficiency inverter systems, this unit delivers optimal efficiency and quiet operation. Durably built with galvanized-steel construction and offering easy service access, it provides dependable performance. A 7-year parts warranty is included with online registration, ensuring lasting peace of mind.
Features
- Connects to ductwork
- Suitable for use with R454B refrigerant
- Variable speed motor for ultimate efficiency
- Quiet operation
- Galvanized-steel construction
- Easy service access
- 7-Year Parts Warranty with Online Registration
- Works with our high-efficiency inverter condensers
| 3 Ton Ceiling-Mount ACIQ Air Handler-R454B | |
|---|---|
| Feature | Spec |
| SKU | ACIQ-36W-PB |
| Weight | 156.000000 |
| Manufacturer | ACiQ |
| Blower Motor | Variable-Speed |
| Maximum CFM | 1189 |
| Decibel Level (dBA) | 59.5 decibels |
| Configuration | Ceiling Mounted |
| Refrigerant | R454B |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Electrical | 208/230v 1 Phase 60 Hz |
| Max Breaker Size | 15 Amps |
| Min. Breaker Size | 6 Amps |
| Tonnage | 3 Ton |
| BTU/Tonnage | 36,000 BTU/3 Ton |
| Height | 10.93" |
| Width | 62.13" |
| Depth | 23.33" |
| Warranty | 7 years parts with online registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING |
