Product Description
Inverter Technology - Inverter technology converts AC power to DC, allowing the compressor inside your condenser to speed up and slow down. This enables the system to automatically self-adjust BTU output based on demand, ensuring optimal cooling performance as the weather changes.
Learning Condenser - Equipped with advanced sensors, this condenser monitors air temperature inside and outside, overall system performance, duct pressure, and refrigerant temperature. During the initial startup, it enters a learning mode to optimize efficiency for future operation by continuously gathering and storing critical data so future startups and run cycles will be at max efficiency.
Optimized Cooling - The self-adjusting inverter design allows the condenser to operate all the way down to a 1 ton unit when needed, keeping you cool and comfortable, making it an ideal seasonal device for hot climates where additional air conditioning is needed for homes already heated by boilers, fireplaces, or other sources of heat. For optimal performance, pair the ACiQ-4X-AC unit with the ACiQ-48-ACL coil.
QUICK FACTS
- 12,000 BTU to 42,000 BTU variable output based on demand
- Inverter air conditioner system designed for use with ductwork
- Efficient cooling from 5°F to 122°F outdoor temperatures
- Durable Gold Fin condenser coil coating
- Quiet operation even at the highest workloads
42,000 BTU, 15.5 SEER
With an efficiency rating of 15.5 SEER, the variable output ACiQ-4X-AC will keep you comfortable across a wide range of conditions. Use our handy size calculator HERE to determine the demand for your home. For cooling, this system can operate anywhere from 12,000 BTU to 42,000 BTU without short cycling.

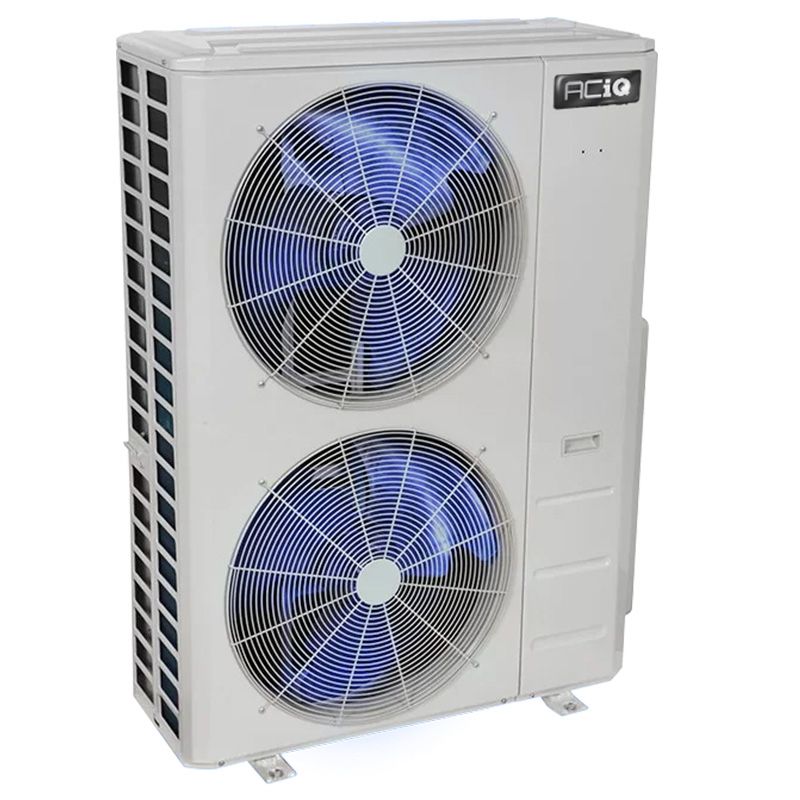

| ACiQ 3.5 Ton 15.5 SEER High Efficiency Central Air Conditioner Condenser - R410A Inverter | |
|---|---|
| Feature | Spec |
| SKU | ACIQ-4X-AC |
| Refrigerant Charge | 25' |
| Weight | 112.800000 |
| Manufacturer | ACiQ |
| Equivalent | ACiQ-48-AC |
| Product Features | High Efficiency / Inverter, Two Stage Condenser, Variable Speed Condenser |
| Cooling BTU | 42,000 BTU |
| Maximum CFM | 4500 |
| Decibel Level (dBA) | 65 |
| Refrigerant | R410A |
| SEER | 15 |
| EER | 11 |
| Condenser Stages | Variable Speed |
| Compressor Type | Rotary |
| Liquid Line | 3/8" |
| Suction Line | 7/8" |
| Electrical | 208/230v 1 Phase 60 Hz |
| Max Breaker Size | 50 Amps |
| Min. Breaker Size | 32 Amps |
| Tonnage | 3.5 Ton |
| Min/Max Outdoor Temp for Heating | 5～75 |
| Min/Max Outdoor Temp for Cooling | 5～122 |
| Height | 52.48" |
| Width | 37.48" |
| Depth | 16.34" |
| Warranty | 12 Years Compressor and 7 Years Parts with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING |
